337-039 Series
Manufacturer: EDAC Inc.
Beta
⌘K

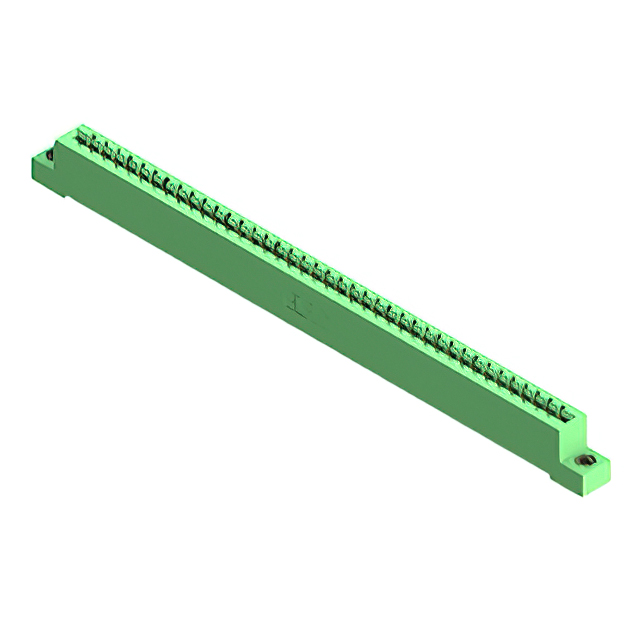

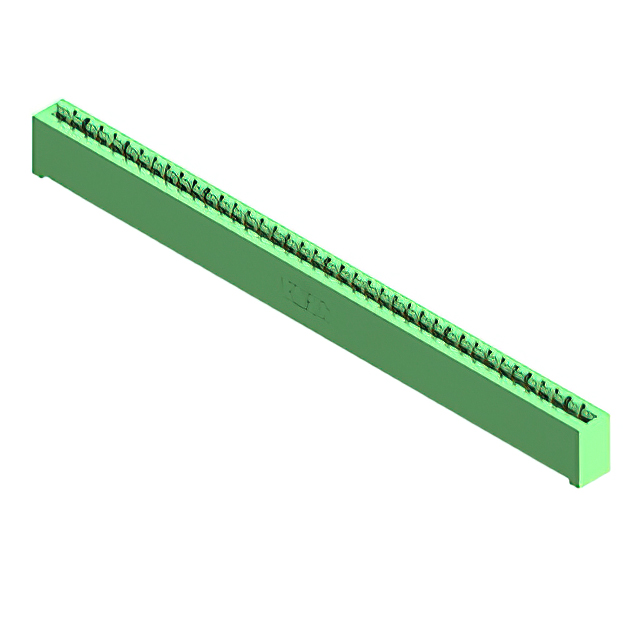

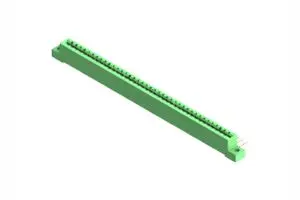

CONN EDGE SGL FMALE 39POS 0.156
| Part | Termination Rows | Material - Insulation | Card Thickness [Max] | Card Thickness [Min] | Card Type | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Termination | Number of Rows | Number of Positions/Bay/Row | Contact Finish | Gender | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Type | Pitch | Pitch | Number of Positions | Mounting Type | Read Out | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Copper Alloy | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Wire Wrap | 1 | 39 | Gold | Female | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Cantilever | 3.96 mm | 0.156 in | 39 | Through Hole | Single | Green |
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Copper Alloy | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Wire Wrap | 1 | 39 | Gold | Female | 4-40 Threaded Insert Top Mount Opening | Cantilever | 3.96 mm | 0.156 in | 39 | Right Angle Through Hole | Single | Green | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Copper Alloy | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Wire Wrap | 1 | 39 | Gold | Female | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Cantilever | 3.96 mm | 0.156 in | 39 | Right Angle Through Hole | Single | Green |
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Copper Alloy | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Solder | 1 | 39 | Gold | Female | M3 Threaded Insert Top Mount Opening | Cantilever | 3.96 mm | 0.156 in | 39 | Through Hole | Single | Green | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Copper Alloy | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Solder | 1 | 39 | Gold | Female | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Cantilever | 3.96 mm | 0.156 in | 39 | Through Hole | Single | Green |
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Copper Alloy | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Wire Wrap | 1 | 39 | Gold | Female | Cantilever | 3.96 mm | 0.156 in | 39 | Through Hole | Single | Green | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Copper Alloy | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Wire Wrap | 1 | 39 | Gold | Female | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Cantilever | 3.96 mm | 0.156 in | 39 | Right Angle Through Hole | Single | Green |
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Copper Alloy | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Solder | 1 | 39 | Gold | Female | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | 3.96 mm | 0.156 in | 39 | Through Hole | Single | Green | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Copper Alloy | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Solder Eyelet(s) | 1 | 39 | Gold | Female | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Cantilever | 3.96 mm | 0.156 in | 39 | Through Hole | Single | Green |
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Copper Alloy | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Wire Wrap | 1 | 39 | Gold | Female | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Cantilever | 3.96 mm | 0.156 in | 39 | Through Hole | Single | Green |
