MMBT3904 Series

Catalog

DFN 3L, TRANSISTOR

Part	Vce Saturation (Max) @ Ib, Ic	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Voltage - Collector Emitter Breakdown (Max) [Max]	Package / Case	Mounting Type	Transistor Type	Current - Collector Cutoff (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Current - Collector (Ic) (Max) [Max]	Power - Max [Max]	Frequency - Transition	Grade	Qualification

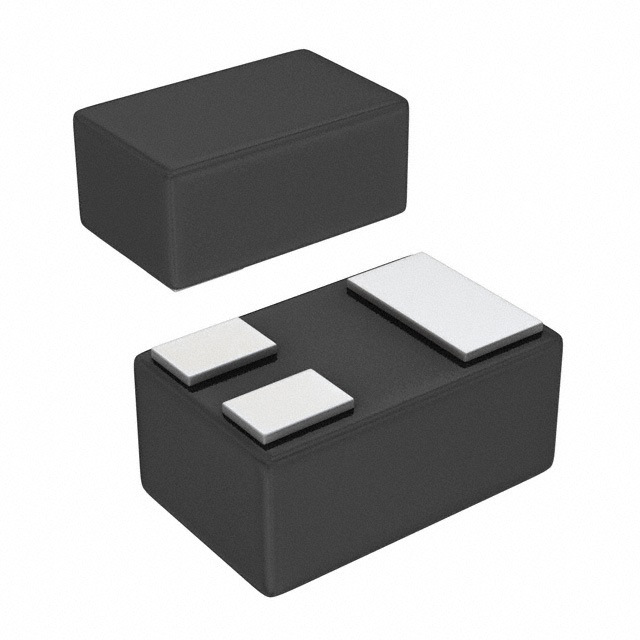

Panjit International Inc. MMBT3904FN3_R1_00001	0.3 V	100	40 V	3-UFDFN	Surface Mount	NPN	50 nA	150 °C	-55 °C	3-DFN (1x0.6)	200 mA	250 mW
Panjit International Inc. MMBT3904W_R1_00001	0.3 V	100	40 V	SC-70 SOT-323	Surface Mount	NPN	50 nA	150 °C	-55 °C	SOT-323	200 mA	150 mW

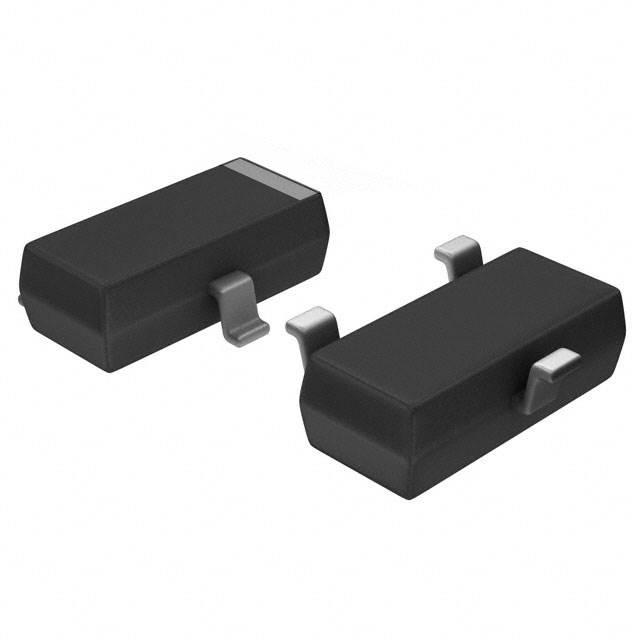

Panjit International Inc. MMBT3904_R1_00001	0.3 V	100	40 V	SC-59 SOT-23-3 TO-236-3	Surface Mount	NPN	50 nA	150 °C	-55 °C	SOT-23	200 mA	225 mW	300 MHz
Panjit International Inc. MMBT3904-AU_R1_000A1	0.3 V	100	40 V	SC-59 SOT-23-3 TO-236-3	Surface Mount	NPN	50 nA	150 °C	-55 °C	SOT-23	200 mA	225 mW	300 MHz	Automotive	AEC-Q101
