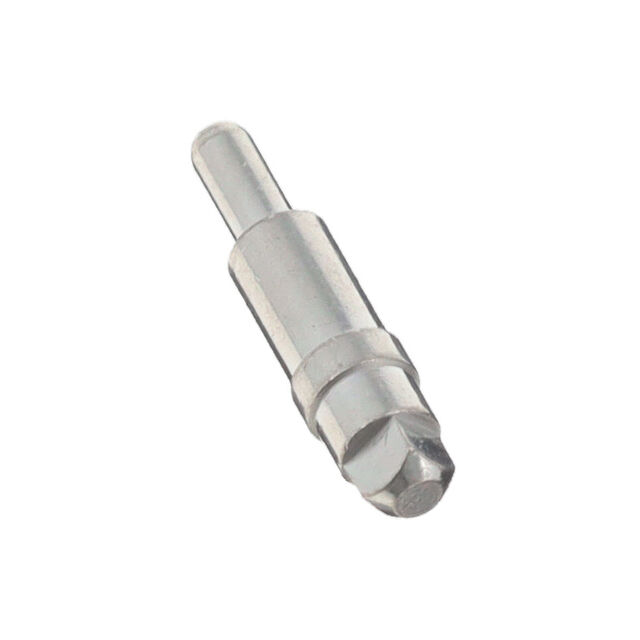

8237-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN
| Part | Insulation | Mounting Type | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Material | Terminal Style | Contact Finish Thickness | Contact Finish Thickness | Length - Overall [x] | Length - Overall [x] | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Above Flange [x] | Length - Above Flange [x] | Terminal Type | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Termination | Contact Finish | Length - Below Flange [x] | Length - Below Flange [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Non-Insulated | Through Hole | 0.11 in | 2.79 mm | Brass Alloy | Flanged | 200 Áin | 5.08 Ám | 0.472 in | 11.99 mm | 0.091 in | 2.31 mm | 0.092 " | 2.34 mm | 3.89 mm | 0.153 in | PC Pin | 1.52 mm | 0.06 in | Press-Fit | Tin | 1.6 mm | 0.063 " |
