627-W09 Series

Manufacturer: EDAC Inc.

Catalog

CONN D-SUB PLUG 9POS PNL MNT

Part	Color	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Ingress Protection	Number of Positions	Number of Rows [custom]	Material Flammability Rating	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Features	Flange Feature	Shell Material, Finish	Connector Type	Contact Type	Mounting Type	Contact Finish Thickness	Current Rating (Amps)	Contact Finish	Connector Style	Termination	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 627-W09-222-012	Black	Copper Alloy	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof	9	2	UL94 V-0	1	DE E	Grounding Indents	Board Side (4-40)	Nickel Plated Steel	Plug Male Pins	Signal	Free Hanging (In-Line)	Flash	5 A	Gold	D-Sub

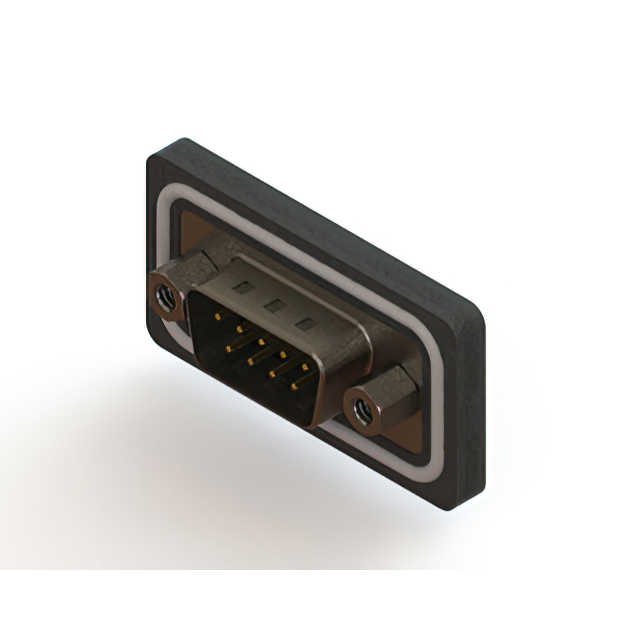

EDAC Inc. 627-W09-220-012	Black	Copper Alloy	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof	9	2	UL94 V-0	1	DE E	Grounding Indents	Board Side (4-40)	Nickel Plated Steel	Plug Male Pins	Signal	Panel Mount Through Hole	Flash	5 A	Gold	D-Sub	Solder
EDAC Inc. 627-W09-620-012	Black	Copper Alloy	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof	9	2	UL94 V-0	1	DE E	Grounding Indents	Board Side (4-40)	Nickel Plated Steel	Plug Male Pins	Signal	Panel Mount Through Hole		5 A	Gold	D-Sub	Solder	30 Áin	0.76 Ám

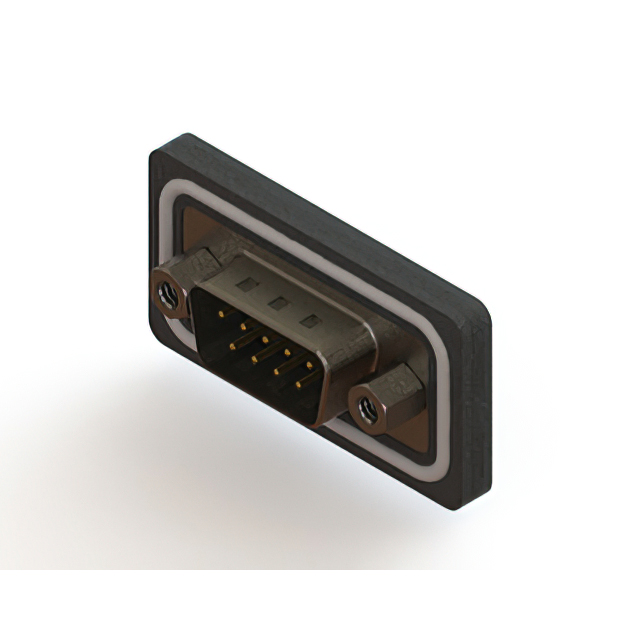

EDAC Inc. 627-W09-622-012	Black	Copper Alloy	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof	9	2	UL94 V-0	1	DE E	Grounding Indents	Board Side (4-40)	Nickel Plated Steel	Plug Male Pins	Signal	Free Hanging (In-Line)		5 A	Gold	D-Sub		30 Áin	0.76 Ám

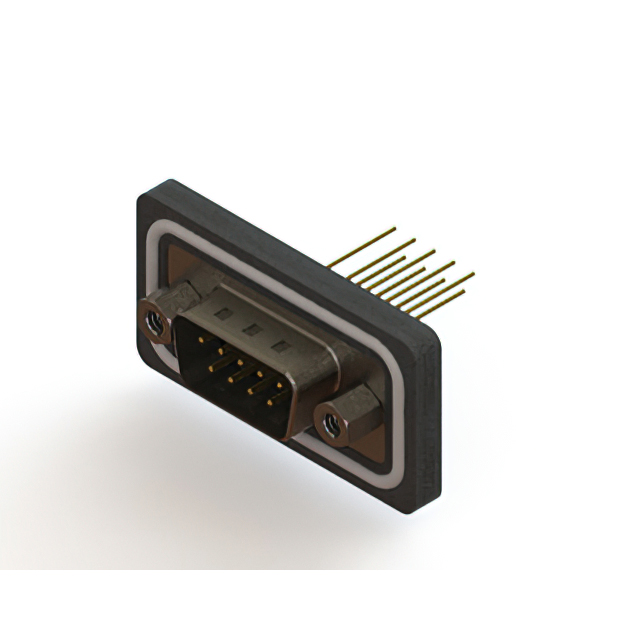

EDAC Inc. 627-W09-621-012	Black	Copper Alloy	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof	9	2	UL94 V-0	1	DE E	Grounding Indents	Board Side (4-40)	Nickel Plated Steel	Plug Male Pins	Signal	Panel Mount Through Hole		5 A	Gold	D-Sub	Solder	30 Áin	0.76 Ám
EDAC Inc. 627-W09-620-013	Black	Copper Alloy	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof	9	2	UL94 V-0	1	DE E	Board Lock Grounding Indents	Board Side (4-40)	Nickel Plated Steel	Plug Male Pins	Signal	Panel Mount Through Hole		5 A	Gold	D-Sub	Solder	30 Áin	0.76 Ám
EDAC Inc. 627-W09-320-012	Black	Copper Alloy	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof	9	2	UL94 V-0	1	DE E	Grounding Indents	Board Side (4-40)	Nickel Plated Steel	Plug Male Pins	Signal	Panel Mount Through Hole		5 A	Gold	D-Sub	Solder	15 µin	0.38 µm

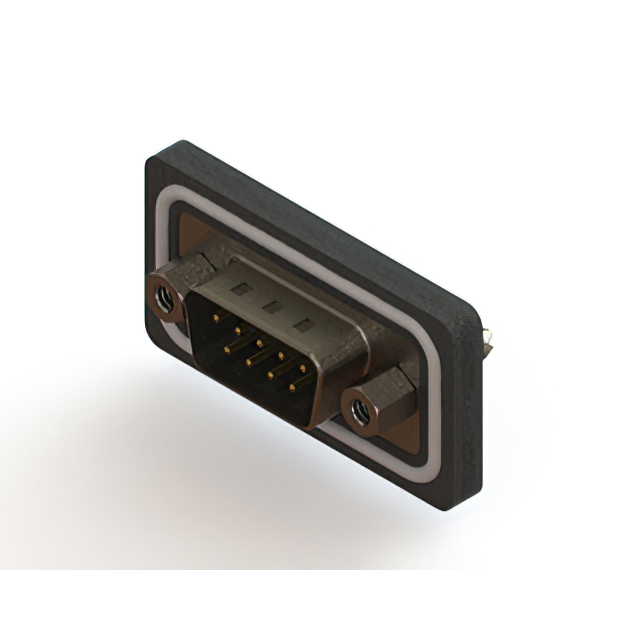

EDAC Inc. 627-W09-320-013	Black	Copper Alloy	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof	9	2	UL94 V-0	1	DE E	Board Lock Grounding Indents	Board Side (4-40)	Nickel Plated Steel	Plug Male Pins	Signal	Panel Mount Through Hole		5 A	Gold	D-Sub	Solder	15 µin	0.38 µm
