2199298 Series

Catalog

CONN IC DIP SOCKET 16POS TIN

Part	Housing Material	Contact Resistance	Type	Type	Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination Post Length	Termination Post Length	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Mating	Contact Finish - Post	Current Rating (Amps)	Termination	Number of Positions or Pins (Grid)	Contact Material - Post	Material Flammability Rating	Pitch - Post	Pitch - Post	Pitch - Mating	Pitch - Mating	Features

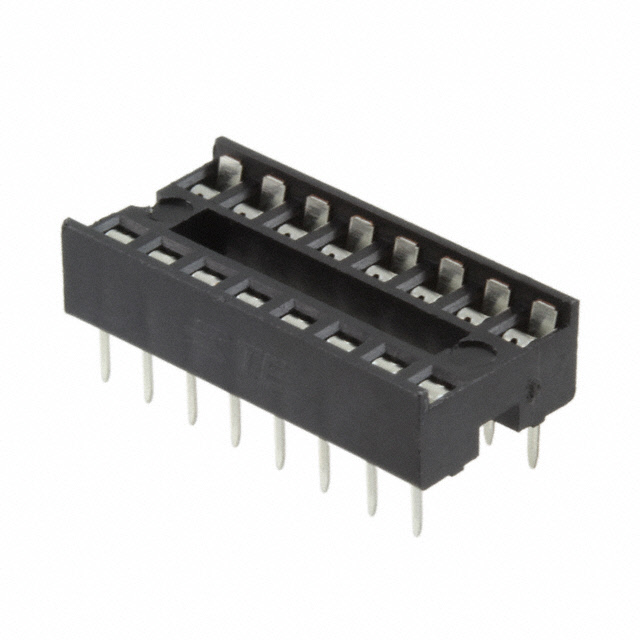

TE Connectivity Raychem Cable Protection 1-2199298-4	Polybutylene Terephthalate (PBT) Glass Filled	20 mOhm	0.3 "	7.62 mm	DIP	60 Áin	1.52 Ám	0.118 in	3 mm	Through Hole	-40 °C	105 ░C	Phosphor Bronze	Tin	1 A	Solder	16	Brass Copper	UL94 V-0	2.54 mm	0.1 in	0.1 in	2.54 mm	Open Frame
TE Connectivity Raychem Cable Protection 1-2199298-5	Polybutylene Terephthalate (PBT) Glass Filled	20 mOhm	0.3 "	7.62 mm	DIP	60 Áin	1.52 Ám	0.118 in	3 mm	Through Hole	-40 °C	105 ░C	Phosphor Bronze	Tin	1 A	Solder	18	Brass Copper	UL94 V-0	2.54 mm	0.1 in	0.1 in	2.54 mm	Open Frame

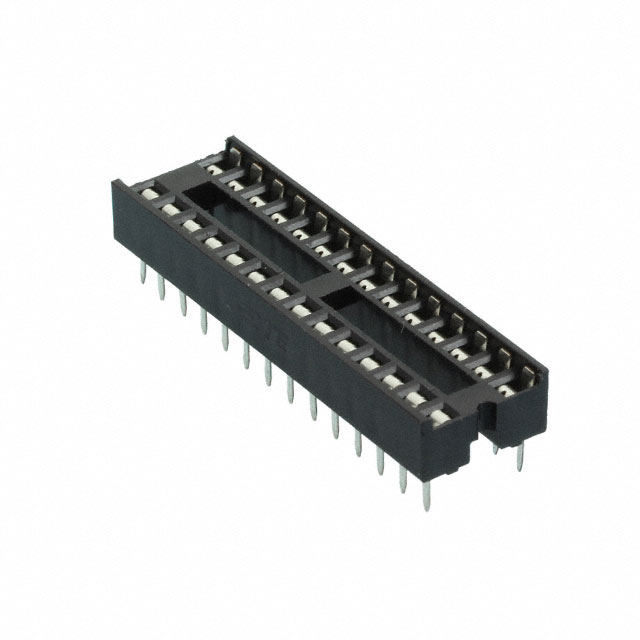

TE Connectivity Raychem Cable Protection 1-2199298-9	Polybutylene Terephthalate (PBT) Glass Filled	20 mOhm	0.3 "	7.62 mm	DIP	60 Áin	1.52 Ám	0.118 in	3 mm	Through Hole	-40 °C	105 ░C	Phosphor Bronze	Tin	1 A	Solder	28	Brass Copper	UL94 V-0	2.54 mm	0.1 in	0.1 in	2.54 mm	Open Frame
