R12407 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

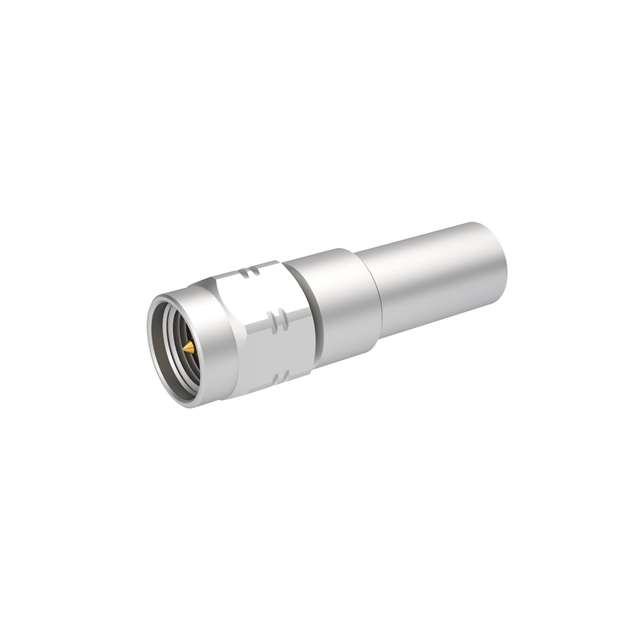

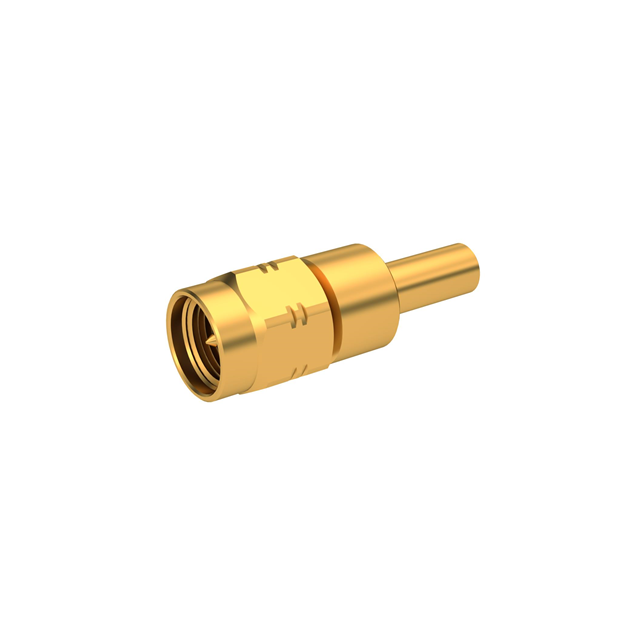

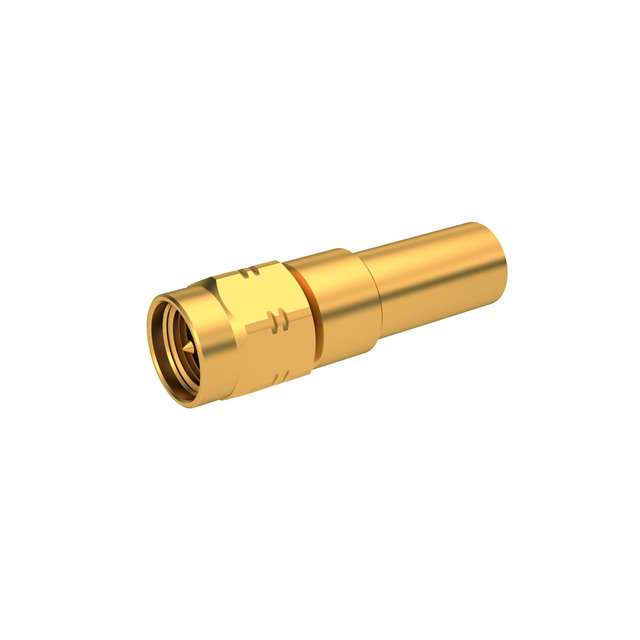

SMA / STRAIGHT PLUG FULL CRIMP-T
| Part | Voltage Rating | Dielectric Material | Center Contact Plating | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Frequency - Max [Max] | Connector Style | Connector Type | Number of Ports | Housing Color | Contact Termination | Cable Group | Cable Group | Impedance | Shield Termination | Center Contact Material | Mounting Type | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 250 V | Polytetrafluoroethylene (PTFE) | Gold | Brass | -65 ░C | 165 °C | Gold | 12.4 GHz | SMA | Plug Male Pin | 1 | Gold | Crimp | RG-58 | 141 | 50 Ohms | Crimp | Brass | Free Hanging (In-Line) | Threaded |
 Radiall USA, Inc. | 335 V | Polytetrafluoroethylene (PTFE) | Gold | Brass | -65 ░C | 165 °C | White Bronze | 12.4 GHz | SMA | Plug Male Pin | 1 | Silver | Crimp | 223 400 RG-142 | 50 Ohms | Crimp | Brass | Free Hanging (In-Line) | Threaded | |
 Radiall USA, Inc. | 250 V | Polytetrafluoroethylene (PTFE) | Gold | Brass | -65 ░C | 165 °C | Gold | 12.4 GHz | SMA | Plug Male Pin | 1 | Gold | Crimp | RG-174 | 316 | 50 Ohms | Crimp | Brass | Free Hanging (In-Line) | Threaded |
 Radiall USA, Inc. | 335 V | Polytetrafluoroethylene (PTFE) | Gold | Brass | -65 ░C | 165 °C | White Bronze | 12.4 GHz | SMA | Plug Male Pin | 1 | Silver | Crimp | RG-58 | 141 | 50 Ohms | Crimp | Brass | Free Hanging (In-Line) | Threaded |
