BAF1 Series

Catalog

SWITCH SNAP ACTION SPDT 20A 125V

Part	Voltage Rating - DC	Mounting Type	Pretravel	Pretravel	Termination Style	Actuator Type	Overtravel	Overtravel	Differential Travel	Differential Travel	Operating Force	Features	Release Force	Current Rating (Amps)	Circuit	Voltage Rating - AC	Switch Function	Operating Position	Operating Position

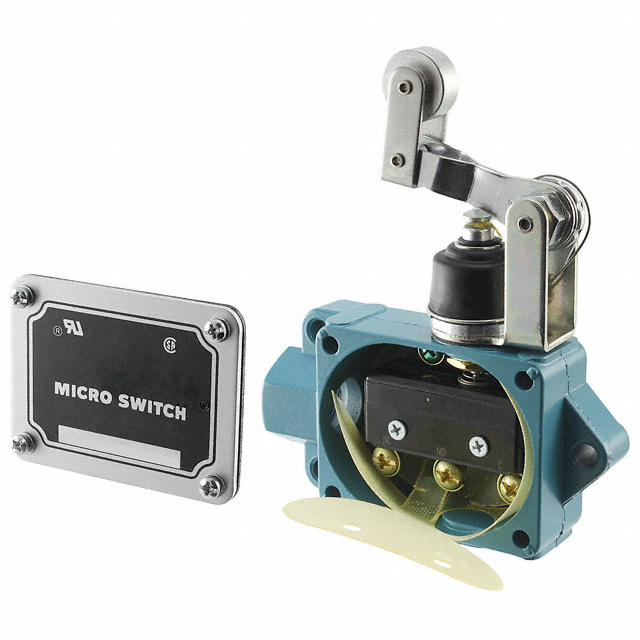

Honeywell Sensing and Productivity Solutions BAF1-2RN28-RH	125 VDC	Chassis Mount	0.219 in	5.6 mm	Screw Terminal	Lever Roller	6.35 mm	0.25 in	0.5 mm	0.02 in	907 gf	Actuator Mounted Right Side	227 gf	20 A 500 mA	SPDT	125 V	On-Mom

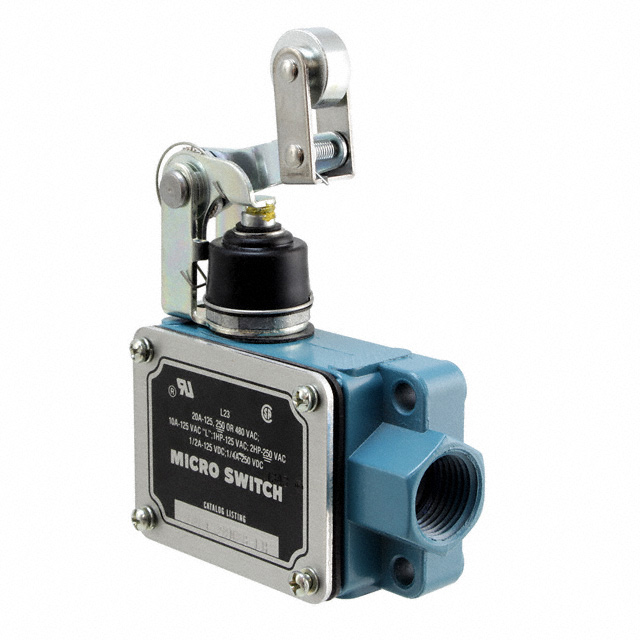

Honeywell Sensing and Productivity Solutions BAF1-2RN28-LH	125 VDC	Chassis Mount	0.219 in	5.6 mm	Screw Terminal	Lever Roller	6.35 mm	0.25 in	0.5 mm	0.02 in	907 gf	Actuator Mounted Left Side	227 gf	20 A 500 mA	SPDT	125 V	On-Mom

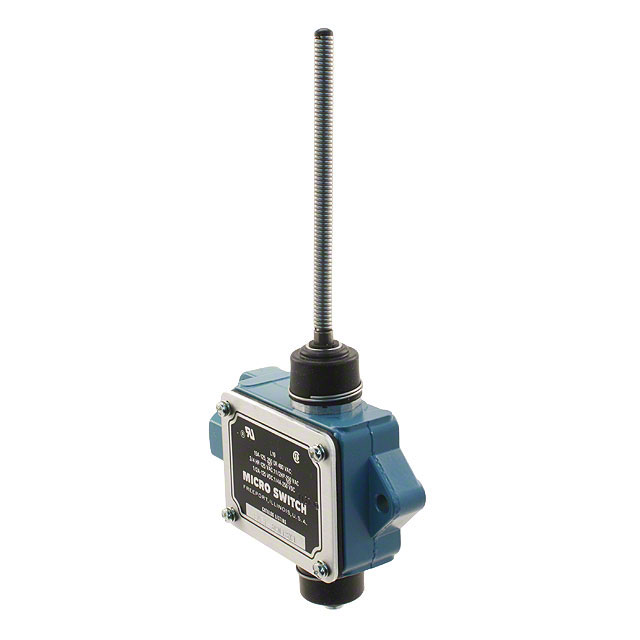

Honeywell Sensing and Productivity Solutions BAF1-3CN18X1	125 VDC	Chassis Mount	15 °		Screw Terminal	Coil Spring						Reset Plunger on Bottom		15 A 500 mA	SPDT	125 V	On-On	15 °

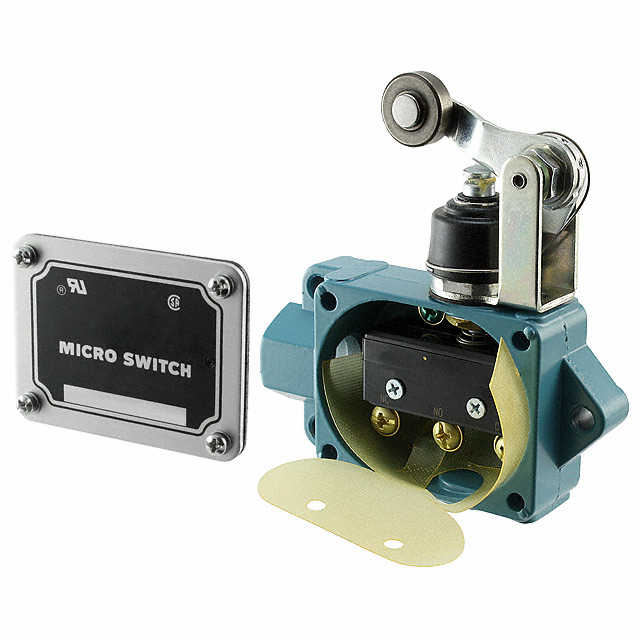

Honeywell Sensing and Productivity Solutions BAF1-2RN2-RH	125 VDC	Chassis Mount	0.219 in	5.6 mm	Screw Terminal	Lever Roller	6.35 mm	0.25 in	0.5 mm	0.02 in	907 gf	Actuator Mounted Right Side	227 gf	20 A 500 mA	SPDT	125 V	On-Mom
Honeywell Sensing and Productivity Solutions BAF1-3CNX1	125 VDC	Chassis Mount			Screw Terminal	Round (Pin Plunger)	5.6 mm	0.219 in			0.68 kgf	Reset Plunger on Bottom		20 A 500 mA	SPDT	125 V	On-On	2.094 "	53.2 mm
