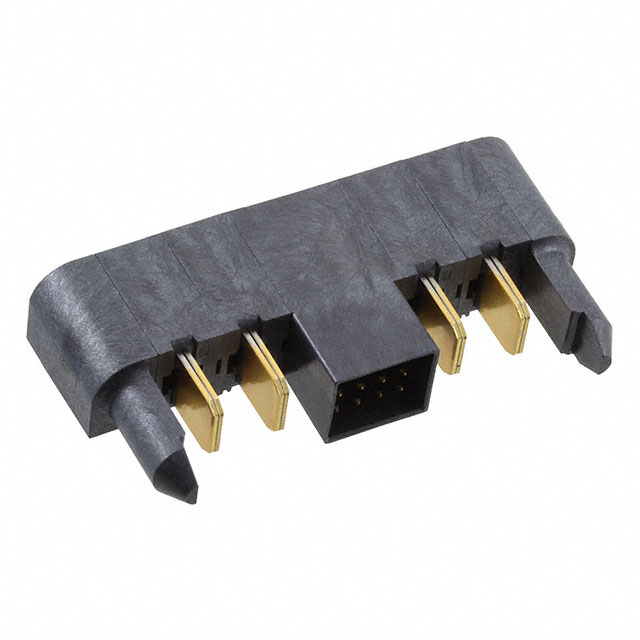

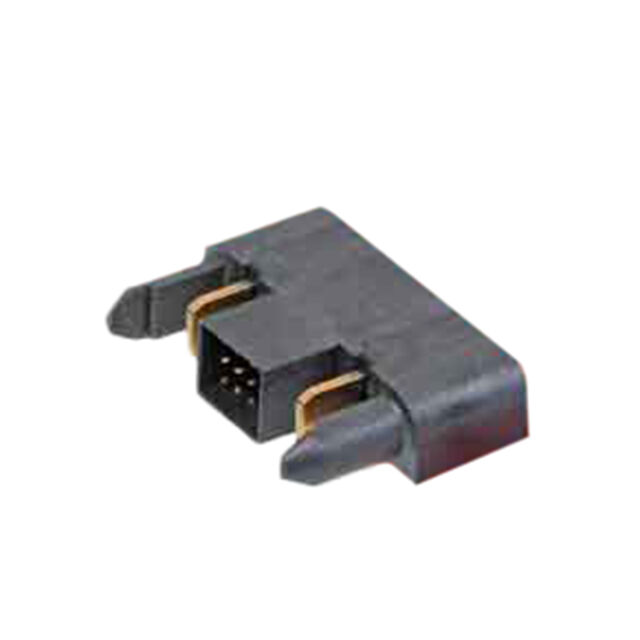

EXTreme Ten60Power Panel-to-Board Right-Angle Plug Assembly with Guide Pins, 3 Power Circuit, 12 Signal Circuits, 3 Power Circuit
EXTreme Ten60Power Panel-to-Board Right-Angle Plug Assembly with Guide Pins, 3 Power Circuit, 12 Signal Circuits, 3 Power Circuit
EXTreme Ten60Power Panel-to-Board Right-Angle Plug Assembly with Guide Pins, 3 Power Circuit, 12 Signal Circuits, 3 Power Circuit
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Color | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Features | Connector Type | Number of Positions | Mounting Type | Termination | Contact Finish Thickness | Contact Finish Thickness | Number of Positions Loaded | Contact Finish | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | -40 C | 105 ░C | UL94 V-0 | Black | 6 | 24 | Board Guide Guide Pin | Plug Male Pins and Blades | 30 | Right Angle Through Hole | Solder | 30 Áin | 0.76 Ám | All | Gold | EXTreme Ten60Power |
 Molex | -40 C | 105 ░C | UL94 V-0 | Black | 2 | 24 | Board Guide Guide Pin | Plug Male Pins and Blades | 26 | Right Angle Through Hole | Solder | 30 Áin | 0.76 Ám | All | Gold | EXTreme Ten60Power |
Molex | -40 C | 105 ░C | UL94 V-0 | Black | 2 | 18 | Board Guide Guide Pin | Plug Male Pins and Blades | 20 | Right Angle Through Hole | Solder | 30 Áin | 0.76 Ám | All | Gold | EXTreme Ten60Power |
Molex | Black | 6 | 12 | Board Guide Guide Pin | Plug Male Pins and Blades | 18 | Right Angle Through Hole | Solder | 30 Áin | 0.76 Ám | All | Gold | EXTreme Ten60Power | |||
Molex | -40 C | 105 ░C | UL94 V-0 | Black | 6 | 18 | Board Guide Guide Pin | Plug Male Pins and Blades | 24 | Right Angle Through Hole | Solder | 30 Áin | 0.76 Ám | All | Gold | EXTreme Ten60Power |
Molex | -40 C | 105 ░C | UL94 V-0 | Black | 2 | 12 | Board Guide Guide Pin | Plug Male Pins and Blades | 14 | Right Angle Through Hole | Solder | 30 Áin | 0.76 Ám | All | Gold | EXTreme Ten60Power |
 Molex | -40 C | 105 ░C | UL94 V-0 | Black | 4 | 12 | Board Guide Guide Pin | Plug Male Pins and Blades | 16 | Right Angle Through Hole | Solder | 30 Áin | 0.76 Ám | All | Gold | EXTreme Ten60Power |
