PFR1212 Series
Manufacturer: Delta Electronics
Beta
⌘K

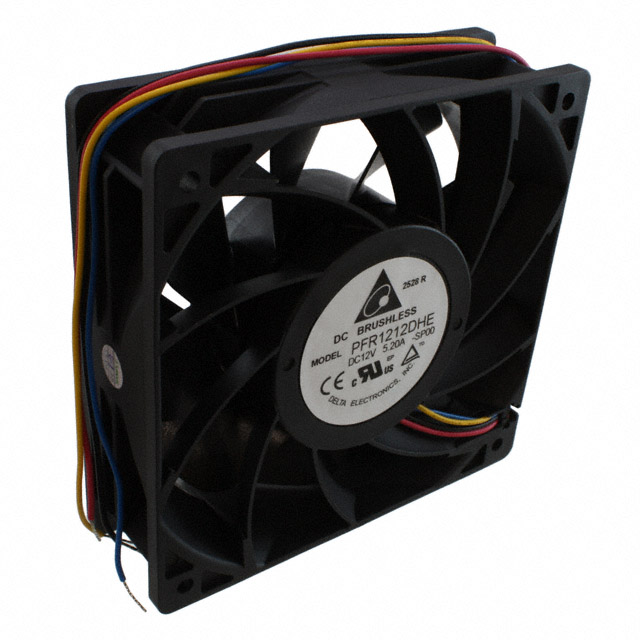

FAN AXIAL 120X38MM 12VDC WIRE
| Part | Material - Blade | Lifetime @ Temp. | Current Rating (Amps) | Voltage Range [Min] | Voltage Range [Max] | Material - Frame | Features | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [z] | Size / Dimension [x] | Air Flow | Air Flow | Weight | Weight | Termination | RPM | Voltage - Rated | Width [y] | Approval Agency | Power (Watts) | Bearing Type | Fan Type | Noise | Static Pressure | Static Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Plastic | 70000 Hrs | 3.7 A | 8 V | 13.2 VDC | Plastic | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 70 °C | -10 °C | 120 mm | 120 mm | 7.12 mł/min | 254.3 CFM | 410.05 g | 0.904 lb | 4 Wire Leads | 7400 RPM | 12 VDC | 38 mm | CE cURus VDE | 44.4 W | Ball | Tubeaxial | 68.5 dB(A) | 1.438 in H2O | 358.2 Pa |
 Delta Electronics | Plastic | 70000 Hrs | 2.7 A | 8 V | 13.2 VDC | Plastic | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 70 °C | -10 °C | 120 mm | 120 mm | 6.4 m³/min | 228.6 CFM | 410.05 g | 0.904 lb | 4 Wire Leads | 6600 RPM | 12 VDC | 38 mm | CE cURus VDE | 32.4 W | Ball | Tubeaxial | 65.5 dB(A) | 1.206 in H2O | 300.4 Pa |
