NLAS3899 Series

Catalog

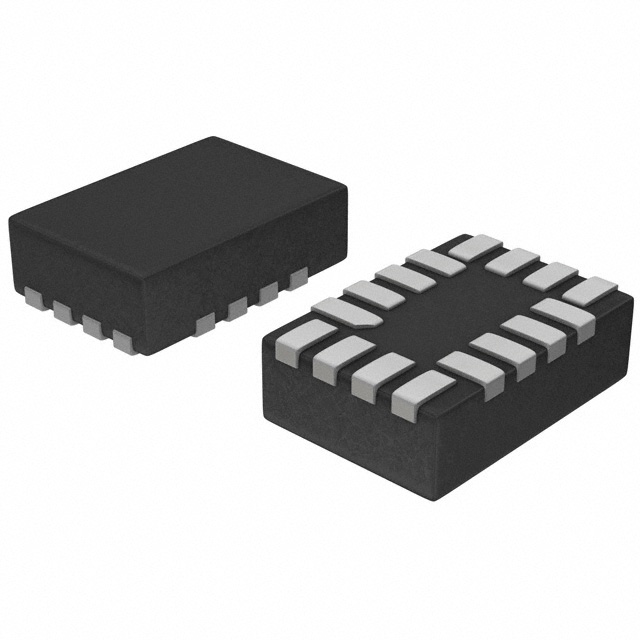

IC SWITCH DPDT X 2 2.5OHM 16WQFN

Part	Number of Circuits	Supplier Device Package	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Single (V+) [Min]	Multiplexer/Demultiplexer Circuit	Switch Circuit	Current - Leakage (IS(off)) (Max)	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Charge Injection	On-State Resistance (Max) [Max]	Channel-to-Channel Matching (ΔRon)	Mounting Type	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	-3db Bandwidth	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]
ON Semiconductor NLAS3899BMNTBG	2	16-WQFN (1.8x2.6)	4.3 V	1.65 V	2:2	DPDT	300 nA	30 ns	40 ns	111 pC	2.5 Ohms	700 mOhm	Surface Mount	10 pF	10 pF	280 MHz	16-WFQFN	85 °C	-40 °C
ON Semiconductor NLAS3899BMNTXG	2	16-QFN (3x3)	4.3 V	1.65 V	2:2	DPDT	300 nA	30 ns	40 ns	111 pC	2.5 Ohms	700 mOhm	Surface Mount	10 pF	10 pF	280 MHz	16-VFQFN Exposed Pad	85 °C	-40 °C
ON Semiconductor NLAS3899BMNTWG	2	16-QFN (3x3)	4.3 V	1.65 V	2:2	DPDT	300 nA	30 ns	40 ns	111 pC	2.5 Ohms	700 mOhm	Surface Mount	10 pF	10 pF	280 MHz	16-VFQFN Exposed Pad	85 °C	-40 °C
