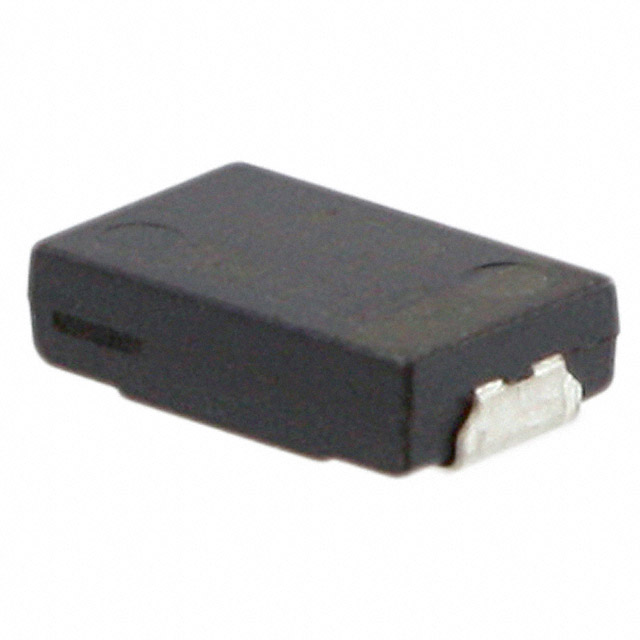

EEF-GX Series

Catalog

CAP ALUMINUM POLYMER 560UF 2VDC 20%( 7.3 X 4.3 X 1.9MM) SMD 0.003 OHM 10.2A 2000H 105°C T/R

Part	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Lifetime @ Temp.	Applications	ESR (Equivalent Series Resistance)	Voltage - Rated	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ High Frequency	Capacitance	Package / Case	Package / Case	Tolerance
Panasonic Industrial Automation Sales EEF-GX0D561R	0.287 "	4.3 mm	0.169 "	7.3 mm	2000 Hrs	General Purpose	3 mOhm	2 VDC	Polymer	4.3 mm	0.287 "	7.3 mm	0.169 "	2 mm	0.079 in	Surface Mount	105 ░C	-55 °C	10.2 A	560 µF	7343 Metric	2917	20 %
Panasonic Industrial Automation Sales EEF-GX0E471L	0.287 "	4.3 mm	0.169 "	7.3 mm	2000 Hrs	General Purpose	3 mOhm	2.5 V	Polymer	4.3 mm	0.287 "	7.3 mm	0.169 "	2 mm	0.079 in	Surface Mount	105 ░C	-55 °C	10.2 A	470 µF	7343 Metric	2917	20 %
Panasonic Industrial Automation Sales EEF-GX0D471L	0.287 "	4.3 mm	0.169 "	7.3 mm	2000 Hrs	General Purpose	3 mOhm	2 VDC	Polymer	4.3 mm	0.287 "	7.3 mm	0.169 "	2 mm	0.079 in	Surface Mount	105 ░C	-55 °C	10.2 A	470 µF	7343 Metric	2917	20 %
