STS2 Series

Catalog

SWITCH SLIDE DPDT 300MA 125V

Part	Mechanical Life	Switch Travel	Actuator Material	Operating Force	Current Rating (Amps)	Contact Material	Actuator Length [x]	Contact Finish	Actuator Type	Termination Style	Voltage Rating - AC	Mounting Type	Circuit	Features	Contact Timing	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity AMP Connectors STS220PC	10000 Steps	2.5 mm	Polyoxymethylene (Acetal) (POM)	0.25 kgf	300 mA	Copper Alloy	4 mm	Silver	Standard	PC Pin	125 V	Through Hole	DPDT	Epoxy Sealed Terminals	Shorting (MBB)	On-On	-10 °C	60 °C

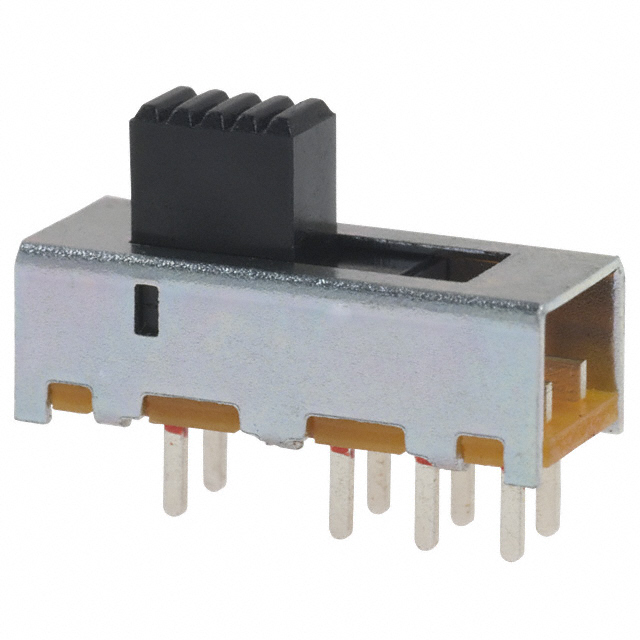

TE Connectivity AMP Connectors STS2300PC	10000 Steps	2.5 mm	Polyoxymethylene (Acetal) (POM)	0.25 kgf	300 mA	Copper Alloy	4 mm	Silver	Standard	PC Pin	125 V	Through Hole	DP3T	Epoxy Sealed Terminals	Shorting (MBB)	On-On-On	-10 °C	60 °C
TE Connectivity AMP Connectors STS230PC	10000 Steps	2.5 mm	Polyoxymethylene (Acetal) (POM)	0.25 kgf	300 mA	Copper Alloy	4 mm	Silver	Standard	PC Pin	125 V	Through Hole	DP3T	Epoxy Sealed Terminals	Shorting (MBB)	On-On-On	-10 °C	60 °C
TE Connectivity AMP Connectors STS2400PC	10000 Steps	2.5 mm	Polyoxymethylene (Acetal) (POM)	0.25 kgf	300 mA	Copper Alloy	4 mm	Silver	Standard	PC Pin	125 V	Through Hole	DP4T	Epoxy Sealed Terminals	Shorting (MBB)	On-On-On-On	-10 °C	60 °C
TE Connectivity AMP Connectors STS260PC	10000 Steps	2.5 mm	Polyoxymethylene (Acetal) (POM)	0.25 kgf	300 mA	Copper Alloy	4 mm	Silver	Standard	PC Pin	125 V	Through Hole	DP6T	Epoxy Sealed Terminals	Shorting (MBB)		-10 °C	60 °C
