LM4570 Series

Catalog

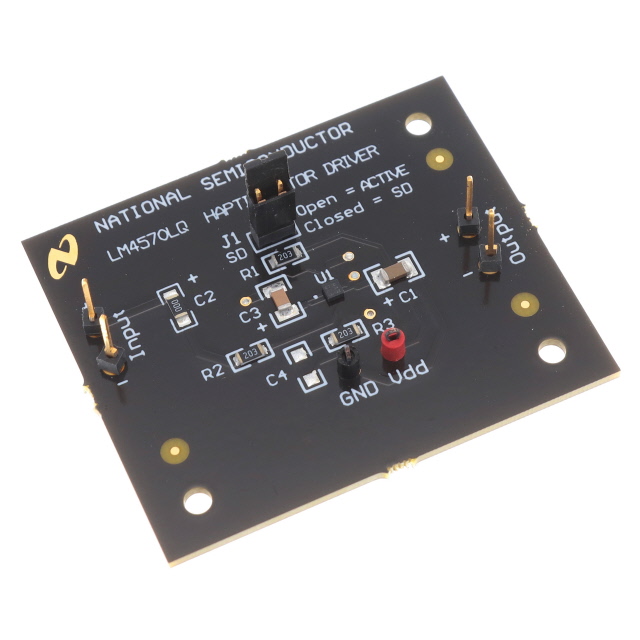

BOARD EVAL FOR LM4570LQ

Part	Supplied Contents	Contents	Type	Utilized IC / Part	Function	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Load [Max]	Voltage - Load [Min]	Technology	Interface	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Current - Output	Motor Type - AC, DC	Supplier Device Package	Package / Case	Output Configuration
Texas Instruments LM4570LQBD/NOPB	Board(s)	Board(s)	Power Management	LM4570	Motor Controller/Driver Haptic/Vibration

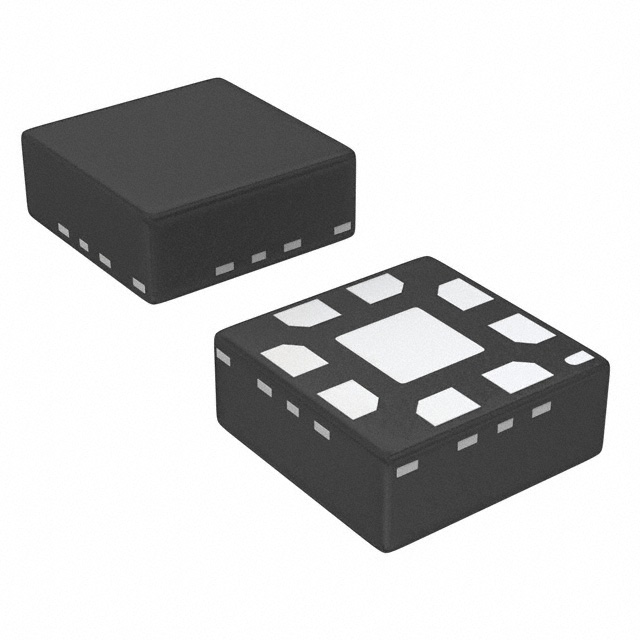

Texas Instruments LM4570LQX/NOPB					Driver - Fully Integrated Control and Power Stage	General Purpose	150 °C	-40 °C	5.5 V	2.4 V	Power MOSFET	Parallel	2.4 V	5.5 V	Surface Mount	192 mA	Brushed DC	8-WQFN (2x2)	8-WQFN Exposed Pad	Half Bridge (2)
Texas Instruments LM4570LQ/NOPB					Driver - Fully Integrated Control and Power Stage	General Purpose	150 °C	-40 °C	5.5 V	2.4 V	Power MOSFET	Parallel	2.4 V	5.5 V	Surface Mount	192 mA	Brushed DC	8-WQFN (2x2)	8-WQFN Exposed Pad	Half Bridge (2)
