9463DB Series
Manufacturer: Belden Inc.
Beta
⌘K

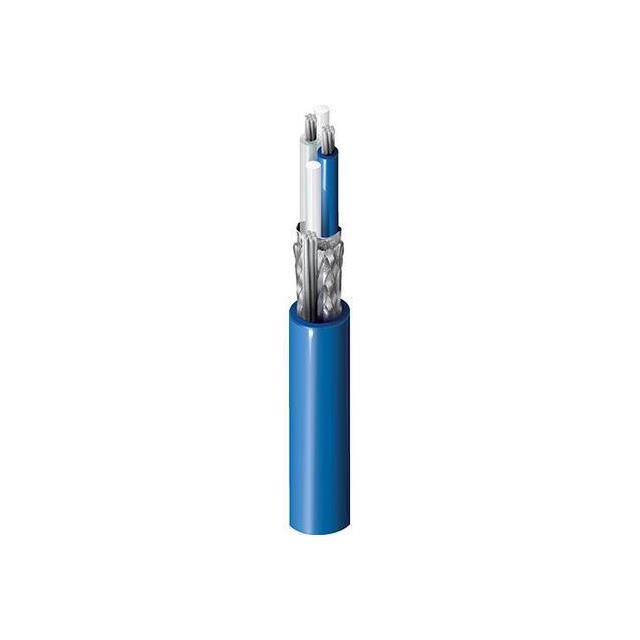

CABLE TWINAXIAL 20AWG
| Part | Conductor Material | Shield Coverage | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Shield Material | VoP, Velocity of Propagation | Cable Type | Shield Type | Jacket (Insulation) Material | Jacket Color | Features | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand | Impedance | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Tinned | 55 % 100 % | 0.076 in | 1.93 mm | 80 °C | -40 C | Aluminum Copper Tinned | 66 | Twinaxial | Braid Foil | Fluorinated Ethylene-Propylene (FEP) | Blue | Direct Burial UV Resistant | 20 AWG | 0.24 " | 6.1 mm | 7 Strands 28 AWG | 120 Ohms | ||
Belden Inc. | Copper Tinned | 55 % 100 % | 0.076 in | 1.93 mm | 80 °C | -40 C | Aluminum Copper Tinned | 66 | Twinaxial | Braid Foil | Fluorinated Ethylene-Propylene (FEP) | Blue | Direct Burial UV Resistant | 20 AWG | 0.24 " | 6.1 mm | 7 Strands 28 AWG | 120 Ohms | 304.8 m | 1000 ft |
