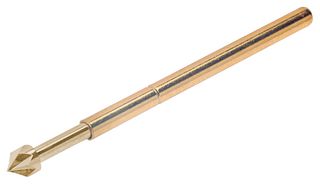

P25 Series
Manufacturer: Harwin Inc.
Beta
⌘K
CONNECTOR, 2.54MM, 33.3MM LENGTH ROHS COMPLIANT: YES
| Part | Length - Overall [x] | Length - Overall [x] | Current Rating (Amps) | Material - Tip [custom] | Tip Type | Connection Type | Length - Tip | Length - Tip | Quantity | Material - Body | Operating Temperature [Min] | Operating Temperature [Max] | Length - Overall | Length - Overall |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 33.3 mm | 1.311 in | 3 A | Beryllium Copper Gold Plated | Tulip Head | Sleeve S25-XX6 | 0.327 " | 8.3 mm | 1 | Phosphor Bronze | -40 C | 85 °C | ||

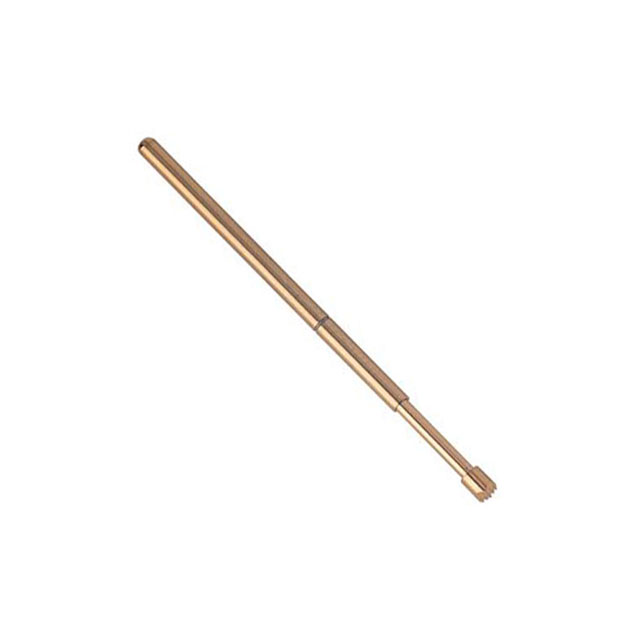

 Harwin Inc. | 33.3 mm | 1.311 in | 3 A | Beryllium Copper Gold Plated | Serrated Head | Sleeve S25-XX6 | 0.327 " | 8.3 mm | 1 | Phosphor Bronze | -40 C | 85 °C | ||

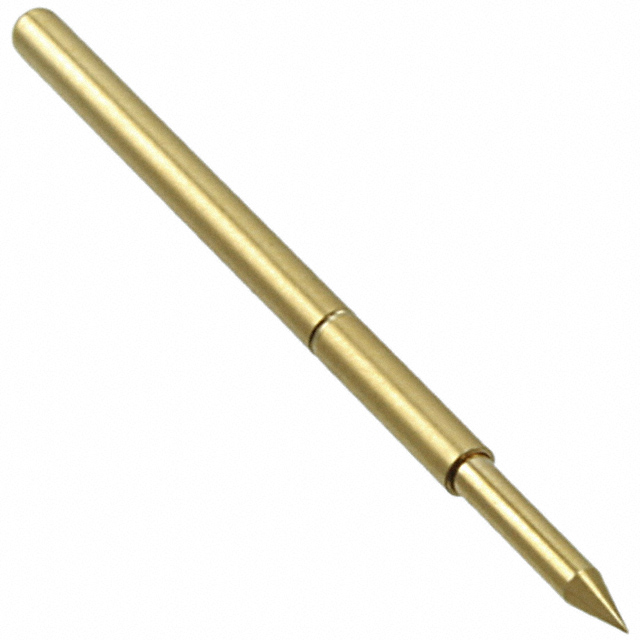

 Harwin Inc. | 3 A | Beryllium Copper Gold Plated | Spear Head | Sleeve S25-XX2 | 0.245 in | 6.2 mm | 1 | Phosphor Bronze | -40 C | 85 °C | 24.7 mm | 0.972 in | ||

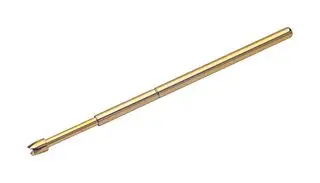

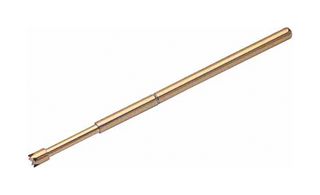

 Harwin Inc. | 33.3 mm | 1.311 in | 3 A | Beryllium Copper Gold Plated | Crown Head | Sleeve S25-XX6 | 0.327 " | 8.3 mm | 1 | Phosphor Bronze | -40 C | 85 °C | ||

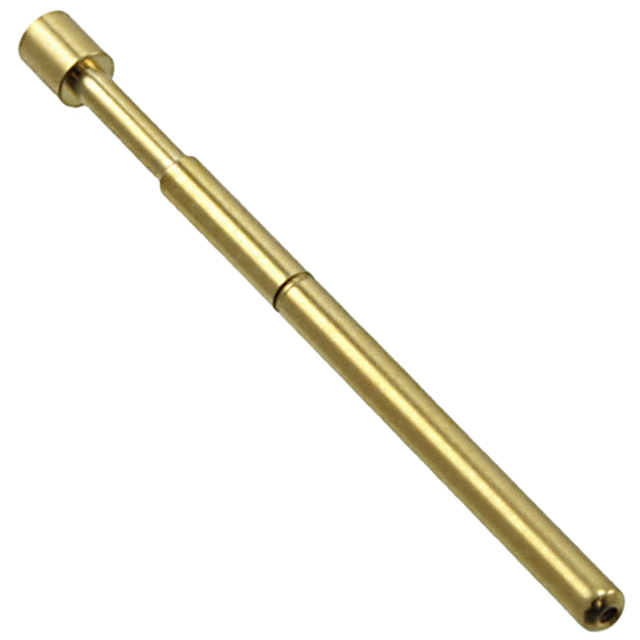

 Harwin Inc. | 3 A | Beryllium Copper Gold Plated | Concave Head | Sleeve S25-XX2 | 0.245 in | 6.2 mm | 1 | Phosphor Bronze | -40 C | 85 °C | 24.7 mm | 0.972 in | ||

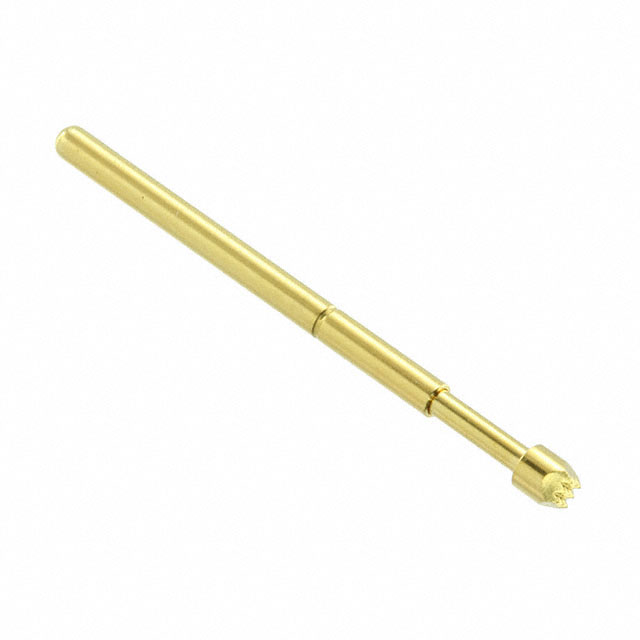

 Harwin Inc. | 3 A | Beryllium Copper Gold Plated | Serrated Head | Sleeve S25-XX2 | 0.245 in | 6.2 mm | 1 | Phosphor Bronze | -40 C | 85 °C | 24.7 mm | 0.972 in | ||

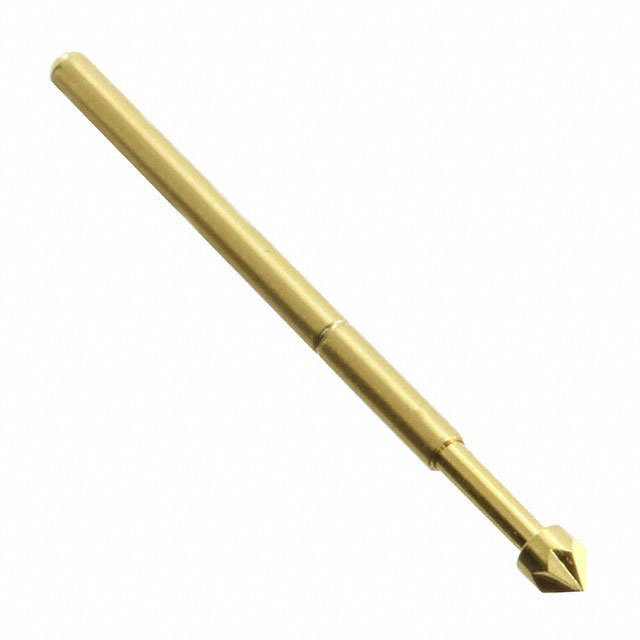

 Harwin Inc. | 3 A | Beryllium Copper Gold Plated | Star Head | Sleeve S25-XX2 | 0.245 in | 6.2 mm | 1 | Phosphor Bronze | -40 C | 85 °C | 24.7 mm | 0.972 in | ||

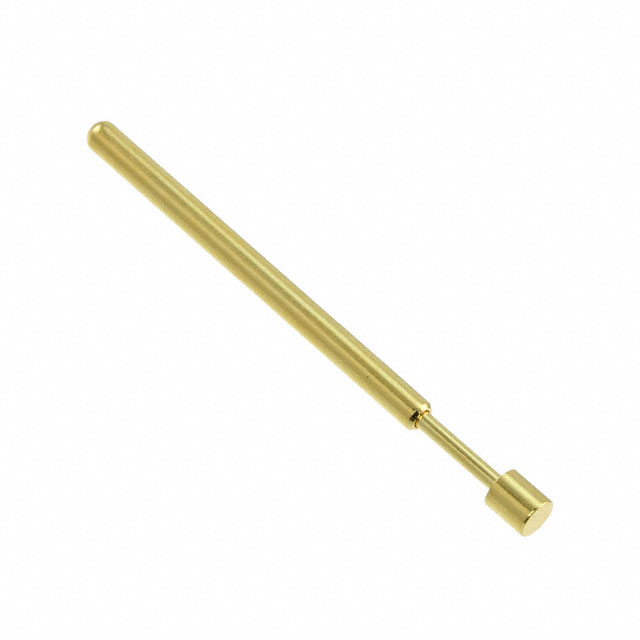

 Harwin Inc. | 3 A | Beryllium Copper Gold Plated | Flat Head | Sleeve S25-XX2 | 0.245 in | 6.2 mm | 1 | Phosphor Bronze | -40 C | 85 °C | 24.7 mm | 0.972 in |
