FKCT Series

Pluggable Terminal Blocks 4 Pos 5mm pitch Plug 24-12AWG Spring

Manufacturer: Phoenix Contact

Catalog

Pluggable Terminal Blocks 4 Pos 5mm pitch Plug 24-12AWG Spring

Catalog

Pluggable Terminal Blocks 4 Pos 5mm pitch Plug 24-12AWG Spring

Part	Housing Material	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Insulation Height [custom]	Insulation Height [custom]	Material Flammability Rating	Wire Strip Length	Contact Mating Finish	Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Number of Levels	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Mounting Type	Positions Per Level	Voltage - UL	Color	Current - UL	Voltage - IEC	Plug Wire Entry	Current - IEC	Pitch	Pitch	Features	Number of Positions	Termination Style
Phoenix Contact 1902440	Polyamide (PA) Nylon	2.5 mm˛	0.2 mm˛	0.591 in	15 mm	UL94 V-0	10 mm	Tin	Plug Female Sockets	12 AWG	26 AWG	1	2.5 mm²	0.2 mm²	Free Hanging (In-Line)	16	300 V	Green	10 A	630 V	180 °	12 A	5.08 mm	0.2 in	Mating Flange	16	Push-In Spring Screwless - Leg Spring
Phoenix Contact 1909391	Polyamide (PA) Nylon			0.591 in	15 mm	UL94 V-0	10 mm	Tin	Plug Female Sockets	12 AWG	26 AWG	1	2.5 mm²	0.2 mm²	Free Hanging (In-Line)	20	300 V	Green	10 A	630 V	180 °	12 A	5 mm	0.197 in		20	Push-In Spring Screwless - Leg Spring

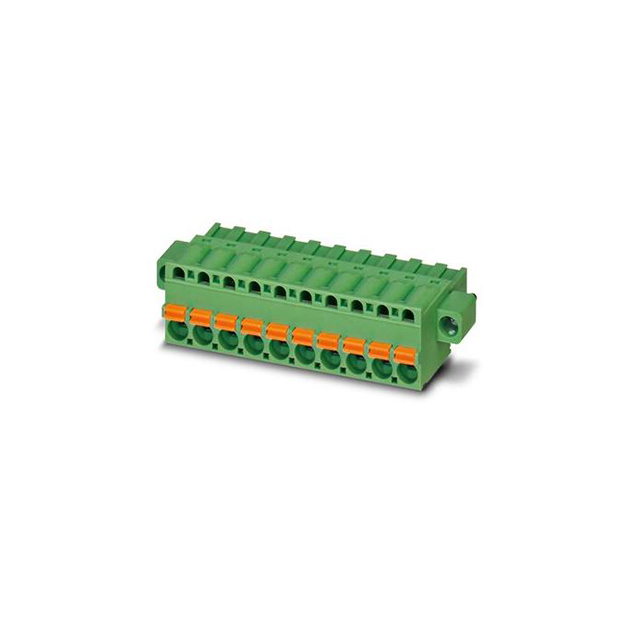

Phoenix Contact 1909430	Polyamide (PA) Nylon			0.591 in	15 mm	UL94 V-0	10 mm	Tin	Plug Female Sockets	12 AWG	26 AWG	1	2.5 mm²	0.2 mm²	Free Hanging (In-Line)	5	300 V	Green	10 A	630 V	180 °	12 A	5 mm	0.197 in	Mating Flange	5	Push-In Spring Screwless - Leg Spring
Phoenix Contact 1909566								Tin	Plug Female Sockets	12 AWG	26 AWG	1	2.5 mm²	0.2 mm²	Free Hanging (In-Line)	18	300 V	Green	10 A	630 V	180 °	12 A	5 mm	0.197 in	Mating Flange	18	Push-In Spring Screwless - Leg Spring
Phoenix Contact 1902204	Polyamide (PA) Nylon	2.5 mm˛	0.2 mm˛	0.591 in	15 mm	UL94 V-0	10 mm	Tin	Plug Female Sockets	12 AWG	26 AWG	1	2.5 mm²	0.2 mm²	Free Hanging (In-Line)	11	300 V	Green	10 A	630 V	180 °	12 A	5.08 mm	0.2 in		11	Push-In Spring Screwless - Leg Spring
Phoenix Contact 1921900								Tin	Plug Female Sockets	12 AWG	26 AWG	1	2.5 mm²	0.2 mm²	Free Hanging (In-Line)	4	300 V	Gray	10 A	630 V	180 °	12 A	5 mm	0.197 in		4	Push-In Spring Screwless - Leg Spring
Phoenix Contact 1902437								Tin	Plug Female Sockets	12 AWG	26 AWG	1	2.5 mm²	0.2 mm²	Free Hanging (In-Line)	15	300 V	Green	10 A	630 V	180 °	12 A	5.08 mm	0.2 in	Mating Flange	15	Push-In Spring Screwless - Leg Spring
Phoenix Contact 1902372								Tin	Plug Female Sockets	12 AWG	26 AWG	1	2.5 mm²	0.2 mm²	Free Hanging (In-Line)	9	300 V	Green	10 A	630 V	180 °	12 A	5.08 mm	0.2 in	Mating Flange	9	Push-In Spring Screwless - Leg Spring
Phoenix Contact 1700342		2.5 mm˛	0.2 mm˛					Tin	Plug Female Sockets	12 AWG	26 AWG	1	2.5 mm²	0.2 mm²	Free Hanging (In-Line)	4	300 V	Blue	10 A	250 V	180 °	12 A	5 mm	0.197 in		4	Push-In Spring Screwless - Leg Spring
Phoenix Contact 1902301	Polyamide (PA) Nylon			0.591 in	15 mm	UL94 V-0	10 mm	Tin	Plug Female Sockets	12 AWG	26 AWG	1	2.5 mm²	0.2 mm²	Free Hanging (In-Line)	2	300 V	Green	10 A	630 V	180 °	12 A	5.08 mm	0.2 in	Mating Flange	2	Push-In Spring Screwless - Leg Spring
