LYG6SP Series

Catalog

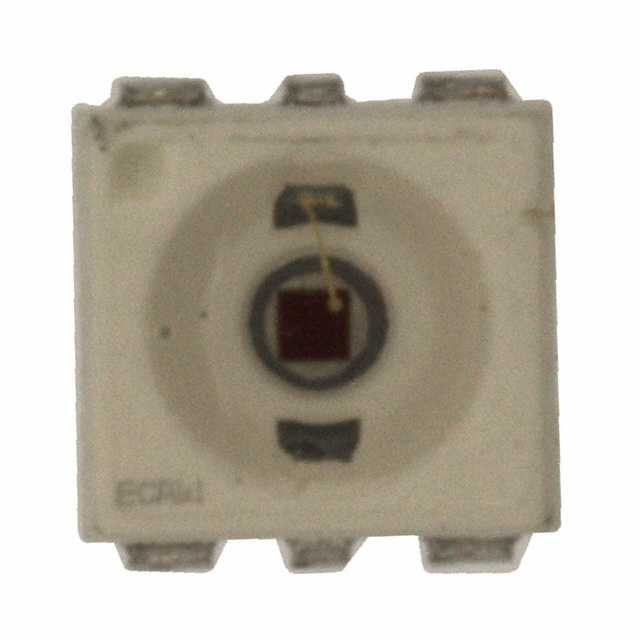

LED TOPLED YLW 589NM 6PLCC

Part	Viewing Angle	Temperature - Test	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	Supplier Device Package	Current - Test	Package / Case	Current - Max [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Color	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Wavelength [Max]	Wavelength	Wavelength [Min]	Mounting Type	Voltage - Forward (Vf) (Typ)	Thermal Resistance of Package
ams-OSRAM USA INC. LY G6SP-CBEB-36-3B5A-140-R18-Z	120 °	25 °C	21 lm	67 lm/W	6-PLCC	140 mA	6-PLCC	200 mA	0.118 in	0.13 "	3.3 mm	3 mm	Yellow	2.1 mm	0.083 in	595 nm	589 nm	583 nm	Surface Mount	2.25 V
ams-OSRAM USA INC. LY G6SP-CADB-36-1-Z	120 °	25 °C	14 lm	44 lm/W	6-PLCC	140 mA	6-SMD J-Lead	200 mA	0.118 in	0.13 "	3.3 mm	3 mm	Yellow	2.1 mm	0.083 in	595 nm	589 nm	583 nm	Surface Mount	2.25 V	50 °C/W
