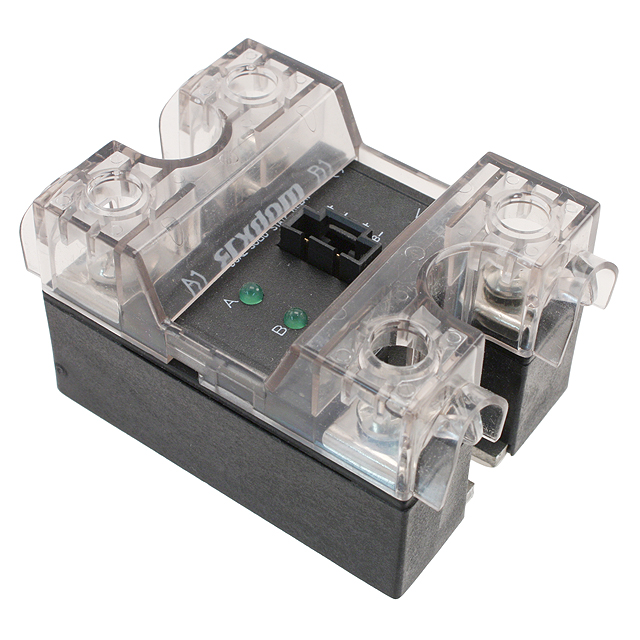

CC2425 Series

Catalog

SSR RELAY SPST-NO 25A 24-280V

Part	Mounting Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Package / Case	Voltage - Input [Max]	Voltage - Input [Min]	Load Current	Circuit	Approval Agency	Voltage - Load [Min]	Voltage - Load [Max]
Sensata-Crydom CC2425W3UH	Chassis Mount	Screw Terminal	80 °C	-40 C	AC Zero Cross	Hockey Puck	32 VDC	4 V	25 A	SPST-NO (1 Form A) x 2	CE cURus TUV	24 V	280 V
Sensata-Crydom CC2425W1V	Chassis Mount	Screw Terminal	80 °C	-40 C	AC Zero Cross	Hockey Puck	32 VDC	4 V	25 A	SPST-NO (1 Form A) x 2	CE cURus TUV	24 V	280 V
Sensata-Crydom CC2425W1UR	Chassis Mount	Screw Terminal	80 °C	-40 C	AC	Hockey Puck	32 VDC	4 V	25 A	SPST-NO (1 Form A) x 2	CE cURus TUV	24 V	280 V
Sensata-Crydom CC2425D2UH	Chassis Mount	Screw Terminal	80 °C	-40 C	AC Zero Cross	Hockey Puck	15 V	4 V	25 A	SPST-NO (1 Form A) x 2	CE cURus TUV	24 V	280 V
Sensata-Crydom CC2425E3UR	Chassis Mount	Screw Terminal	80 °C	-40 C	AC	Hockey Puck	32 VDC	15 V	25 A	SPST-NO (1 Form A) x 2	CE cURus TUV	24 V	280 V
Sensata-Crydom CC2425E2U	Chassis Mount	Screw Terminal	80 °C	-40 C	AC Zero Cross	Hockey Puck	32 VDC	15 V	25 A	SPST-NO (1 Form A) x 2	CE cURus TUV	24 V	280 V
Sensata-Crydom CC2425W2VH	Chassis Mount	Screw Terminal	80 °C	-40 C	AC Zero Cross	Hockey Puck	32 VDC	4 V	25 A	SPST-NO (1 Form A) x 2	CE cURus TUV	24 V	280 V
Sensata-Crydom CC2425D4UH	Chassis Mount	Screw Terminal	80 °C	-40 C	AC Zero Cross	Hockey Puck	15 V	4 V	25 A	SPST-NO (1 Form A) x 2	CE cURus TUV	24 V	280 V
Sensata-Crydom CC2425D1V	Chassis Mount	Screw Terminal	80 °C	-40 C	AC Zero Cross	Hockey Puck	15 V	4 V	25 A	SPST-NO (1 Form A) x 2	CE cURus TUV	24 V	280 V
Sensata-Crydom CC2425W1UH	Chassis Mount	Screw Terminal	80 °C	-40 C	AC Zero Cross	Hockey Puck	32 VDC	4 V	25 A	SPST-NO (1 Form A) x 2	CE cURus TUV	24 V	280 V
