9GT0424 Series
Manufacturer: Sanyo Denki America Inc.
Beta
⌘K

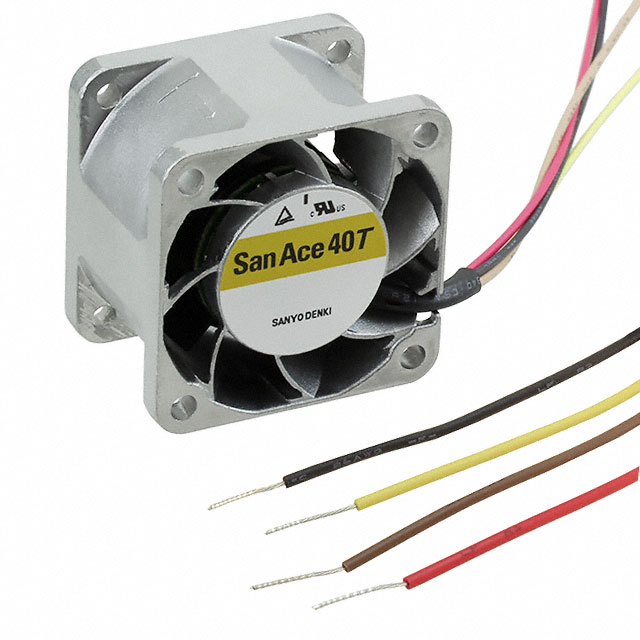

FAN AXIAL 40X28MM 24VDC WIRE
| Part | Material - Frame | Lifetime @ Temp. | Material - Blade | Current Rating (Amps) | Power (Watts) | Approval Agency | RPM | Operating Temperature [Min] | Operating Temperature [Max] | Weight [custom] | Weight [custom] | Size / Dimension [x] | Size / Dimension [z] | Bearing Type | Features | Fan Type | Width [x] | Noise | Air Flow | Air Flow | Termination | Voltage - Rated | Static Pressure | Static Pressure | Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki America Inc. | Aluminum | 40000 Hrs | Plastic | 150 mA | 3.6 W | CSA TUV UL | 11700 RPM | -40 C | 85 °C | 0.122 lb | 55.34 g | 40 mm | 40 mm | Ball | Locked Rotor Protection Speed Sensor (Tach) | Tubeaxial | 28 mm | 48 dB | 0.515 mł/min | 18.4 CFM | 3 Wire Leads | 24 VDC | 206 Pa | 0.827 in H2O | ||
 Sanyo Denki America Inc. | Aluminum | 40000 Hrs | Plastic | 150 mA | 3.6 W | CSA TUV UL | 11700 RPM | -40 C | 85 °C | 40 mm | 40 mm | Ball | PWM Control Speed Sensor (Tach) | Tubeaxial | 28 mm | 48 dB | 0.515 mł/min | 18.4 CFM | 4 Wire Leads | 24 VDC | 206 Pa | 0.827 in H2O | 0.121 lb | 54.88 g |
