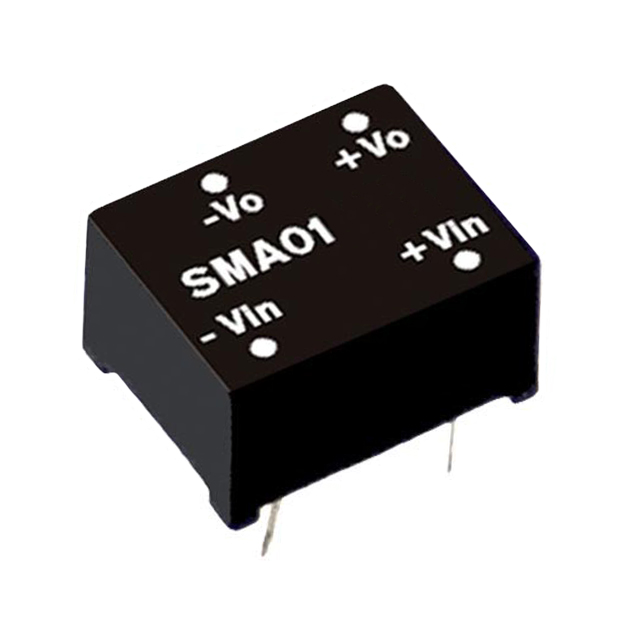

SMA01 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
DC DC CONVERTER 15V 1W
| Part | Voltage - Input (Min) [Min] | Package / Case | Voltage - Input (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Type | Applications | Mounting Type | Voltage - Isolation | Number of Outputs | Size / Dimension [x] | Size / Dimension | Size / Dimension [z] | Size / Dimension [y] | Efficiency | Features | Current - Output (Max) [Max] | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 4.5 V | 7-DIP Module 4 Leads | 5.5 V | 90 °C | -40 °C | Isolated Module | ITE (Commercial) | Through Hole | 1.5 kV | 1 | 0.5 " | 7.1 mm 10.2 mm 12.7 mm | 0.28 " | 0.4 " | 79 % | OCP SCP | 67 mA | 15 V |
MEAN WELL USA Inc. | 4.5 V | 7-DIP Module 4 Leads | 5.5 V | 90 °C | -40 °C | Isolated Module | ITE (Commercial) | Through Hole | 1.5 kV | 1 | 0.5 " | 7.1 mm 10.2 mm 12.7 mm | 0.28 " | 0.4 " | 78 % | OCP SCP | 84 mA | 12 V |
MEAN WELL USA Inc. | 4.5 V | 7-DIP Module 4 Leads | 5.5 V | 90 °C | -40 °C | Isolated Module | ITE (Commercial) | Through Hole | 1.5 kV | 1 | 0.5 " | 7.1 mm 10.2 mm 12.7 mm | 0.28 " | 0.4 " | 77 % | OCP SCP | 200 mA | 5 V |
MEAN WELL USA Inc. | 4.5 V | 7-DIP Module 4 Leads | 5.5 V | 90 °C | -40 °C | Isolated Module | ITE (Commercial) | Through Hole | 1.5 kV | 1 | 0.5 " | 7.1 mm 10.2 mm 12.7 mm | 0.28 " | 0.4 " | 77 % | OCP SCP | 110 mA | 9 V |
