RA811C1 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH ROCKER SPST 16A 125V
| Part | Mechanical Life | Electrical Life | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Circuit | Termination Style | Approval Agency | Actuator Marking | Color - Actuator/Cap | Actuator Type | Voltage Rating - AC | Mounting Type | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Illumination Type, Color | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

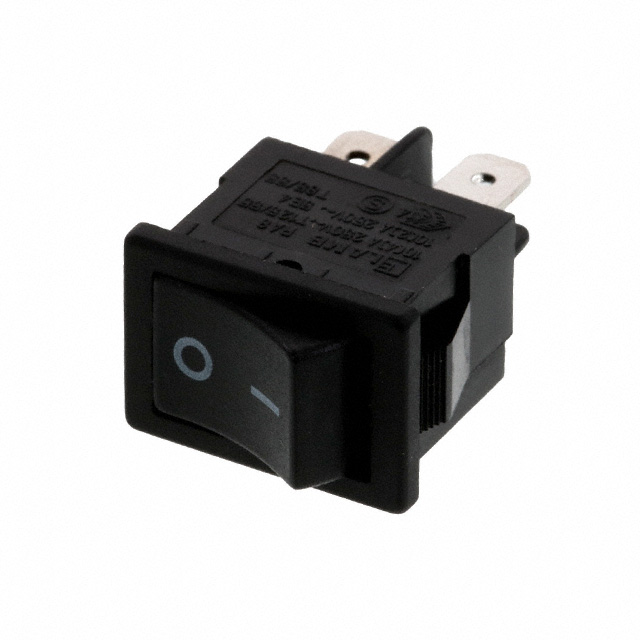

 E-Switch | 100000 Cycles | 10000 Cycles | On-Off | 55 °C | -20 ░C | 16 A | SPST | Quick Connect | cULus | O - | Black | Concave (Curved) | 125 V | Panel Mount Snap-In | 19 mm | 13.1 mm | ||
 E-Switch | 100000 Cycles | 10000 Cycles | On-Off | 55 °C | -20 ░C | 16 A | SPST | Quick Connect | cULus | No Marking | Amber | Concave (Curved) - Illuminated | 125 V | Panel Mount Snap-In | 19 mm | 13.1 mm | Neon Amber | 250 VAC |

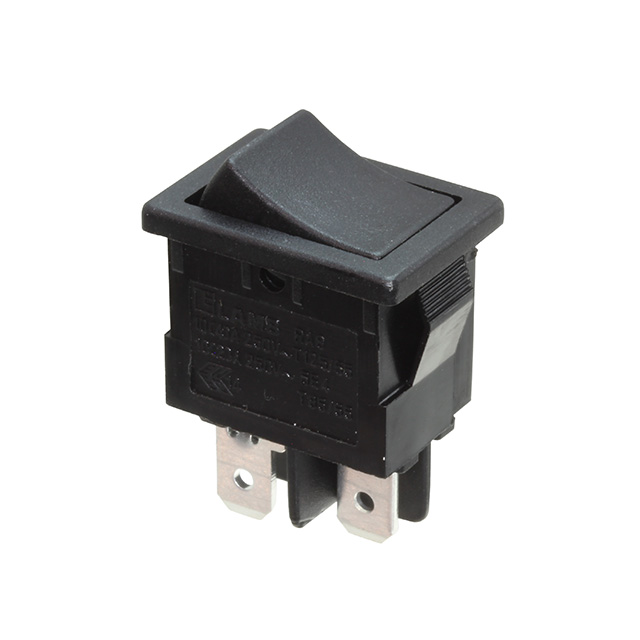

 E-Switch | 100000 Cycles | 10000 Cycles | On-Off | 55 °C | -20 ░C | 16 A | SPST | Quick Connect | cULus | No Marking | Black | Concave (Curved) | 125 V | Panel Mount Snap-In | 19 mm | 13.1 mm |
