500797 Series

Manufacturer: Molex

Catalog

CONN FPC BOTTOM 15POS 0.3MM R/A

Part	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Current Rating (Amps)	Features	Connector/Contact Type	Contact Material	Locking Feature	Number of Positions	Contact Finish	Mounting Type	Housing Material	Mating Cycles	Flat Flex Type	Material Flammability Rating	FFC, FCB Thickness	Cable End Type	Actuator Material	Pitch [x]	Pitch [x]	Voltage Rating

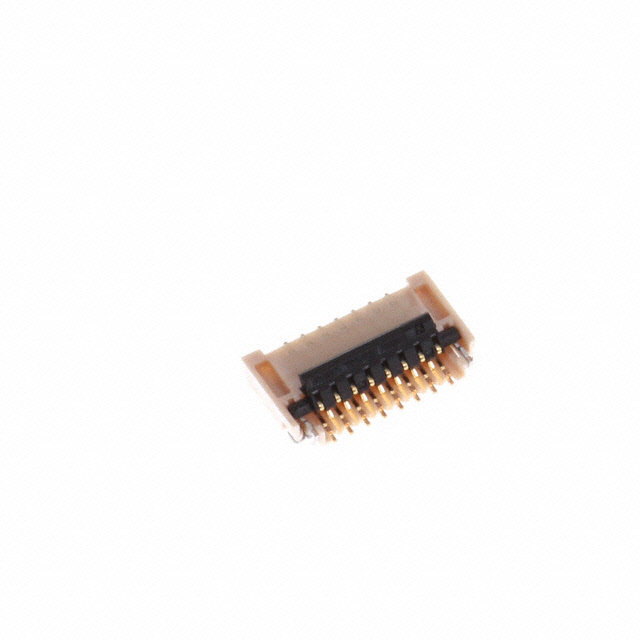

Molex 5007971594	85 °C	-20 C	Solder	0.2 A	Solder Retention Zero Insertion Force (ZIF)	Contacts Bottom	Copper Alloy	Flip Lock	15	Gold	Surface Mount Right Angle	Liquid Crystal Polymer (LCP) Glass Filled	20	FPC	UL94 V-0	0.2 mm	Tapered	Nylon 4/6 Polyamide (PA46)	0.012 in	0.3 mm	50 V

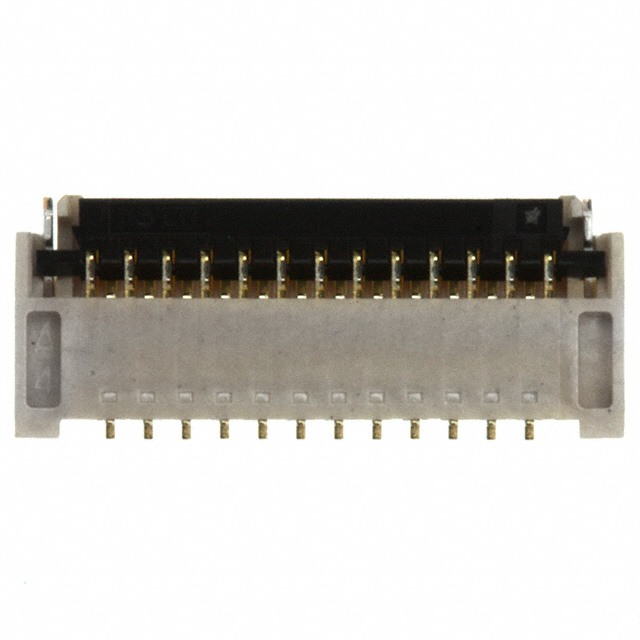

Molex 5007972594	85 °C	-20 C	Solder	0.2 A	Solder Retention Zero Insertion Force (ZIF)	Contacts Bottom	Copper Alloy	Flip Lock		Gold	Surface Mount Right Angle	Liquid Crystal Polymer (LCP) Glass Filled	20	FPC	UL94 V-0	0.2 mm	Tapered	Nylon 4/6 Polyamide (PA46)	0.012 in	0.3 mm	50 V
Molex 5007971194	85 °C	-20 C	Solder	0.2 A	Solder Retention Zero Insertion Force (ZIF)	Contacts Bottom	Copper Alloy	Flip Lock	11	Gold	Surface Mount Right Angle	Liquid Crystal Polymer (LCP) Glass Filled	20	FPC	UL94 V-0	0.2 mm	Tapered	Nylon 4/6 Polyamide (PA46)	0.012 in	0.3 mm	50 V
