NCV7428 Series

System Basis Chip with LIN and LDO Regulator

Catalog

System Basis Chip with LIN and LDO Regulator

Part	Package / Case	Mounting Type	Protocol	Type	Operating Temperature [Max]	Operating Temperature [Min]	Grade	Qualification	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case [y]	Package / Case [x]

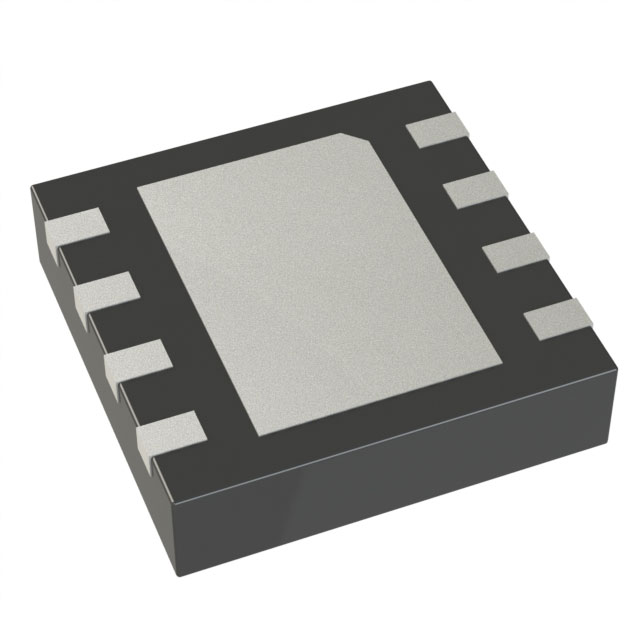

ON Semiconductor NCV7428MWL5R2G	8-VDFN Exposed Pad	Surface Mount	LINbus	Transceiver	125 °C	-40 °C	Automotive	AEC-Q100	8-DFN (3x3)	28 V	5.5 V
ON Semiconductor NCV7428D1L3R2G	8-SOIC	Surface Mount	LINbus	Transceiver	125 °C	-40 °C	Automotive	AEC-Q100	8-SOIC	5 V	3.3 V	3.9 mm	0.154 in

Catalog

System Basis Chip with LIN and LDO Regulator

Key Features

• Control Logic

• 3.3 V or 5 V VOUT Supply depending on the Version from a Low−drop Voltage Regulator

• LIN Transceiver

• Protection and Monitoring Functions

• These are Pb−Free Devices

Description

NCV7428 is a System Basis Chip (SBC) integrating functions typically found in automotive Electronic Control Units (ECUs).NCV7428 provides and monitors the low−voltage power supply for the application microcontroller and other loads and includes a LIN transceiver.
