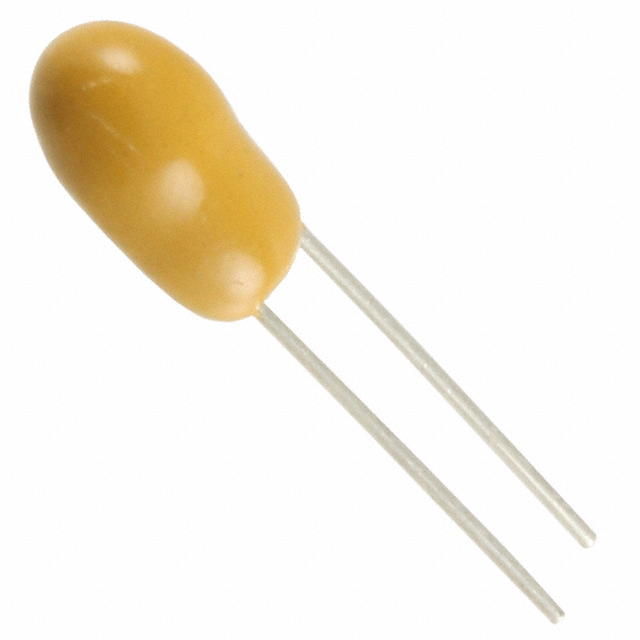

T350H Series

Manufacturer: KEMET

Catalog

TANTALUM CAPACITOR, POLAR, 33 ΜF, 16 V, ± 20%, PC PIN, 2.54 MM, 1.6 OHM

Part	Type	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	ESR (Equivalent Series Resistance)	Manufacturer Size Code	Features	Mounting Type	Lead Spacing	Lead Spacing	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Package / Case	Tolerance
KEMET T350H336M016AT	Conformal Coated	33 ÁF	-55 C	125 °C	0.402 in	10.2 mm	1.6 Ohm	H	General Purpose	Through Hole	2.54 mm	0.1 in	7.6 mm	0.299 in	16 V	Radial	20 %
KEMET T350H476K010AS	Conformal Coated	47 µF	-55 C	125 °C	0.402 in	10.2 mm	1.7 Ohms	H	General Purpose	Through Hole	2.54 mm	0.1 in	7.6 mm	0.299 in	10 V	Radial	10 %
KEMET T350H336K016AT7301	Conformal Coated	33 ÁF	-55 C	125 °C	0.402 in	10.2 mm	1.6 Ohm	H	General Purpose	Through Hole	2.54 mm	0.1 in	7.6 mm	0.299 in	16 V	Radial	10 %
KEMET T350H226K025AT	Conformal Coated	22 µF	-55 C	125 °C	0.402 in	10.2 mm	1.5 Ohm	H	General Purpose	Through Hole	2.54 mm	0.1 in	7.6 mm	0.299 in	25 VDC	Radial	10 %
KEMET T350H476K010AT	Conformal Coated	47 µF	-55 C	125 °C	0.402 in	10.2 mm	1.7 Ohms	H	General Purpose	Through Hole	2.54 mm	0.1 in	7.6 mm	0.299 in	10 V	Radial	10 %
KEMET T350H226K025AS	Conformal Coated	22 µF	-55 C	125 °C	0.402 in	10.2 mm	1.5 Ohm	H	General Purpose	Through Hole	2.54 mm	0.1 in	7.6 mm	0.299 in	25 VDC	Radial	10 %
KEMET T350H226J025AT	Conformal Coated	22 µF	-55 C	125 °C	0.402 in	10.2 mm	1.5 Ohm	H	General Purpose	Through Hole	2.54 mm	0.1 in	7.6 mm	0.299 in	25 VDC	Radial	5 %
KEMET T350H107M006AT	Conformal Coated	100 µF	-55 C	125 °C	0.402 in	10.2 mm	1.6 Ohm	H	General Purpose	Through Hole	2.54 mm	0.1 in	7.6 mm	0.299 in	6 VDC	Radial	20 %
KEMET T350H107K006AS	Conformal Coated	100 µF	-55 C	125 °C	0.402 in	10.2 mm	1.6 Ohm	H	General Purpose	Through Hole	2.54 mm	0.1 in	7.6 mm	0.299 in	6.3 VDC	Radial	10 %
KEMET T350H226K025AT7301	Conformal Coated	22 µF	-55 C	125 °C	0.402 in	10.2 mm	1.5 Ohm	H	General Purpose	Through Hole	2.54 mm	0.1 in	7.6 mm	0.299 in	25 VDC	Radial	10 %
