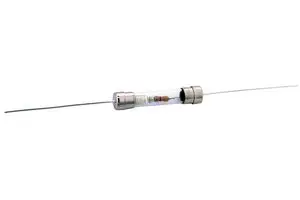

FUSE 250V SB PT 3AG Pb-FREE .500A
Description
AI
The 3AG Slo-Blo® fuse solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection.
Beta
⌘K
FUSE 250V SB PT 3AG Pb-FREE .500A
FUSE 250V SB PT 3AG Pb-FREE .500A
| Part | Fuse Type | Package / Case [y] | Package / Case | Package / Case [x] | Approval Agency | Melting I²t | Mounting Type | Response Time | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Breaking Capacity @ Rated Voltage | Voltage Rating - AC | DC Cold Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | Cartridge Glass | 3AB 3AG | 0.25 " | CE CSA UL | 2.55 | Through Hole | Slow Blow | 0.275 in | 1.275 in | 6.99 mm | 32.39 mm | 0.5 A | -55 C | 125 °C | 35 A | 250 V | ||
 LITTELFUSE | Cartridge Glass | 3AB 3AG | 0.25 " | CE CSA UL | 2.55 | Through Hole | Slow Blow | 0.275 in | 1.275 in | 6.99 mm | 32.39 mm | 0.5 A | -55 C | 125 °C | 35 A | 250 V | 1.26 Ohms | |
 LITTELFUSE | Cartridge Glass | 3AB 3AG | 0.25 " | CE CSA UL | 2.55 | Through Hole | Slow Blow | 0.275 in | 1.275 in | 6.99 mm | 32.39 mm | 0.5 A | -55 C | 125 °C | 35 A | 250 V |
