USUG1000-503J Series

UL-RATED NTC THERM 50K OHM 5% DO35

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

UL-RATED NTC THERM 50K OHM 5% DO35

Part	Resistance in Ohms @ 25°C	Mounting Type	Package / Case	Power - Max [Max]	Length - Lead Wire	Length - Lead Wire	Resistance Tolerance	B0/50
Littelfuse/Commercial Vehicle Products USUG1000-503J	50k	Through Hole	Axial DO-204AH DO-35	20 mW	25.4 mm	1 "	5 %	3892 K

Catalog

UL-RATED NTC THERM 50K OHM 5% DO35

Key Features

• Temperature rating = -40 to +150°C

• Hermetically sealed glass package

• Excellent long-term stability

• Tinned CCS lead wires are solderable or weldable

Description

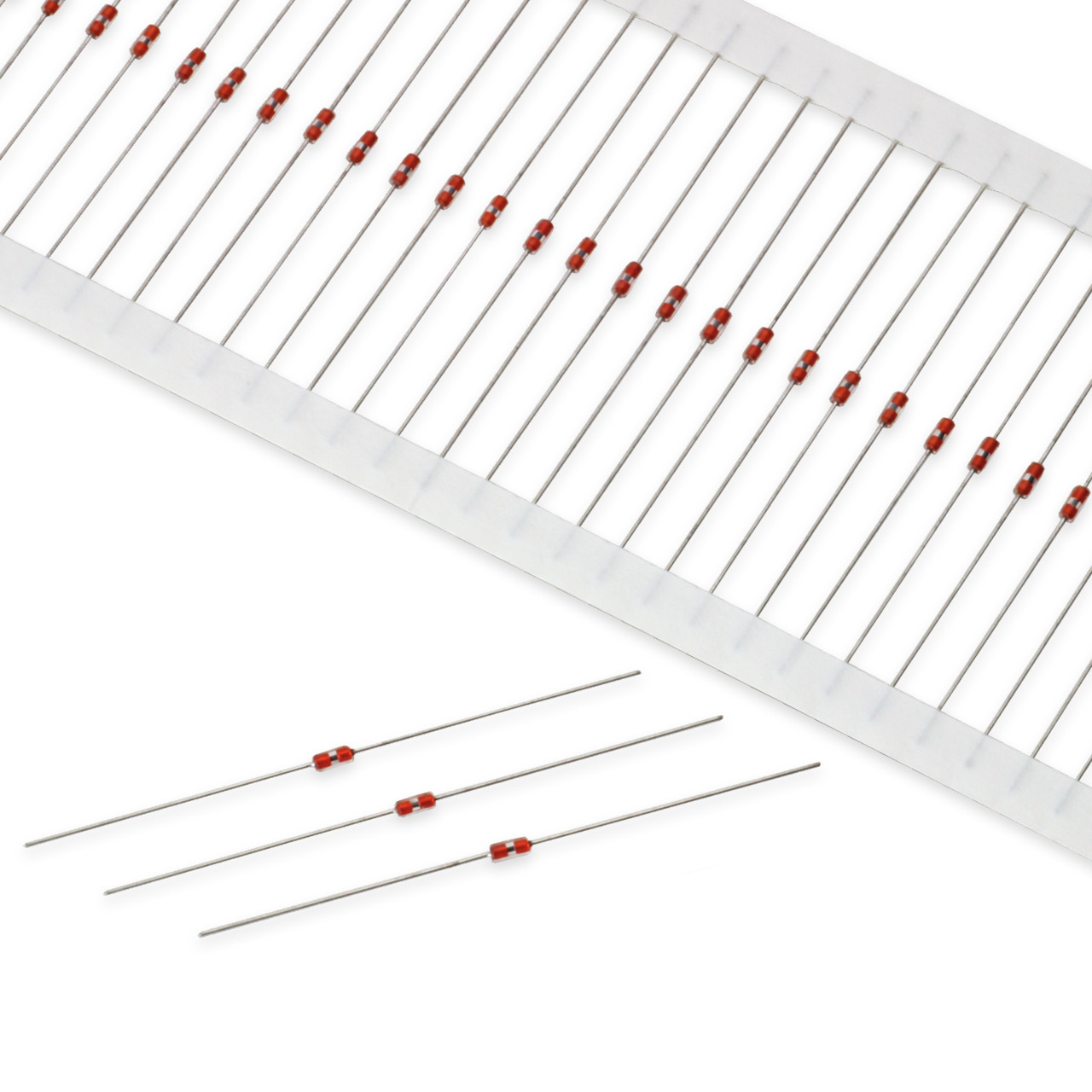

Littelfuse UL Recognized glass encapsulated thermistors are manufactured using super stable NTC chips which are hermetically sealed in a glass (DO-35 diode style) package. The result is a device which exhibits excellent long-term reliability and stability even when subjected to severe environmental or thermal conditions. Their uniform dimensions and axial lead configuration make them especially suitable for use with automatic insertion equipment.
