NPTC182 Series

Catalog

CONN HDR 36POS 0.1 TIN SMD

Part	Contact Material	Insulation Material	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Type	Contact Finish - Post	Fastening Type	Connector Type	Number of Positions Loaded	Insulation Height [z]	Insulation Height	Material Flammability Rating	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Insulation Color	Current Rating (Amps)	Mounting Type	Number of Rows [custom]	Voltage Rating	Features
Sullins Connector Solutions NPTC182KFMP-RC	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Square	0.1 "	2.54 mm	Female Socket	Tin	Push-Pull	Header	All	0.299 "	7.6 mm	UL94 V-0	Solder	0.1 in	2.54 mm	125 °C	-40 C	36	Black	3 A	Surface Mount	2	250 V	Board Guide

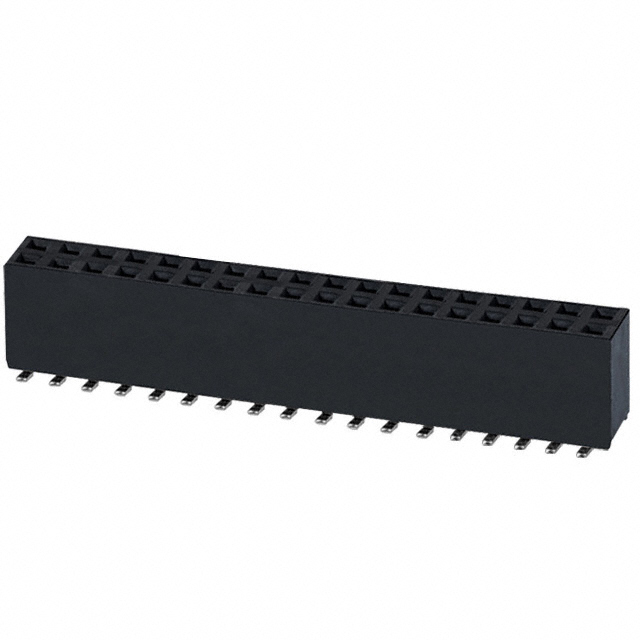

Sullins Connector Solutions NPTC182KFMS-RC	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Square	0.1 "	2.54 mm	Female Socket	Tin	Push-Pull	Header	All	0.299 "	7.6 mm	UL94 V-0	Solder	0.1 in	2.54 mm	125 °C	-40 C	36	Black	3 A	Surface Mount	2	250 V
