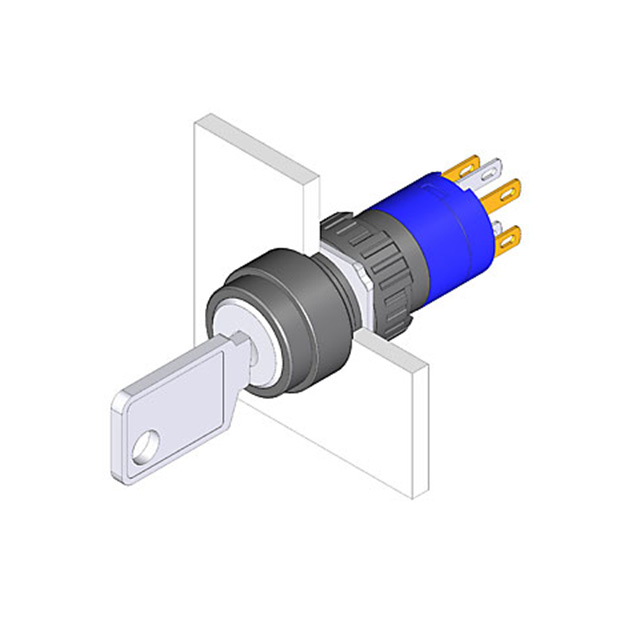

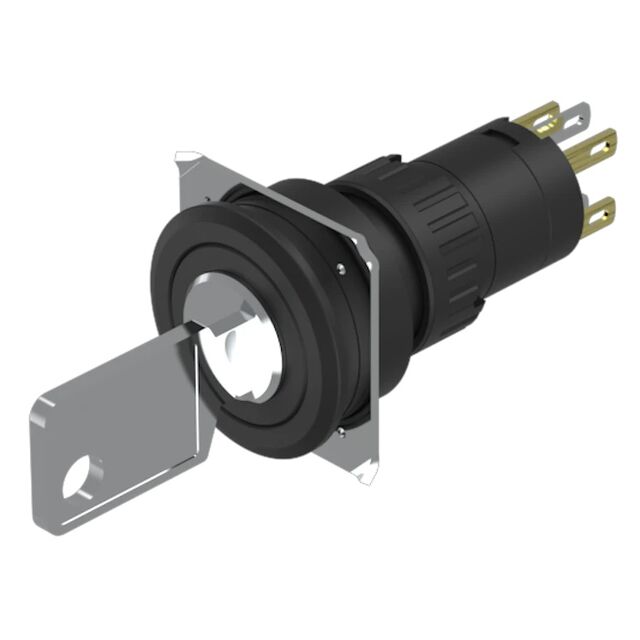

51-235 Series
Manufacturer: EAO
Beta
⌘K
SWITCH KEYLOCK 2POS DPST 5A 250V
| Part | Depth Behind Flange | Mounting Type | Key Removable Positions | Current Rating (Amps) | Panel Cutout Dimensions [diameter] | Number of Positions | Actuator Type | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Angle of Throw | Contact Timing | Switch Function | Voltage Rating - AC | Features | Mechanical Life | Electrical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EAO | 36 mm | Panel Mount | 1 | 5 A | 16 mm | 2 | Flat Key | Solder Lug | 55 °C | -25 °C | DPST-NO/NC | 90 ° | Not Specified | Off-On On-Off | 250 V | IP65 | ||
 EAO | 44.5 mm | Panel Mount | 1 | 5 A | 22.3 mm | 2 | Flat Key | Solder Quick Connect - 0.110" (2.8mm) | 55 °C | -25 °C | DPST-NO/NC | 90 ° | Not Specified | Off-On On-Off | 250 V | IP65 | ||
 EAO | 35.5 mm | Panel Mount | 1 | 5 A | 16 mm | 2 | Flat Key | Solder Lug | 55 °C | -25 °C | DPST-NO/NC | 90 ° | Not Specified | Off-On On-Off | 250 V | IP65 | 50000 Cycles | 50000 Cycles |
