BU-26130 Series

Catalog

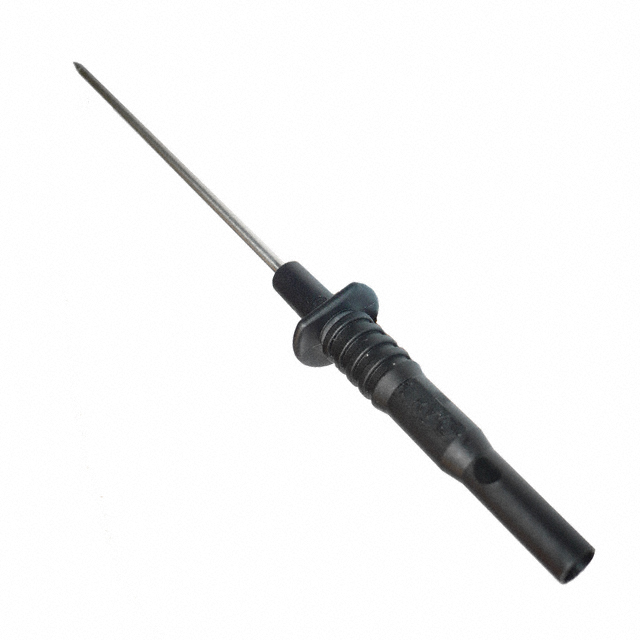

ULTRA TECH TEST PROD, BLACK ROHS COMPLIANT: YES

Part	Tip Type	Material - Body	Current Rating (Amps)	Ratings	Material - Tip	Connection Type	Quantity	Length - Tip [x]	Length - Tip [x]	Voltage Rating	Length - Overall [x]	Length - Overall [x]	Color
Mueller Electric Co BU-26130-0	Long Probe Tip	Nylon	20 A	IEC 1010	Brass Nickel Plated	Banana Female Socket (Jack)	1 Box	95.8 mm	3.772 in	1000 VDC	159.3 mm	6.27 in	Black
Mueller Electric Co BU-26130-6	Long Probe Tip	Nylon	20 A	IEC 1010	Brass Nickel Plated	Banana Female Socket (Jack)	1 Box	95.8 mm	3.772 in	1000 VDC	159.3 mm	6.27 in	Blue
Mueller Electric Co BU-26130-4	Long Probe Tip	Nylon	20 A	IEC 1010	Brass Nickel Plated	Banana Female Socket (Jack)	1 Box	95.8 mm	3.772 in	1000 VDC	159.3 mm	6.27 in	Yellow
Mueller Electric Co BU-26130-2	Long Probe Tip	Nylon	20 A	IEC 1010	Brass Nickel Plated	Banana Female Socket (Jack)	1 Box	95.8 mm	3.772 in	1000 VDC	159.3 mm	6.27 in	Red
