628-2WK Series
Manufacturer: EDAC Inc.
Beta
⌘K

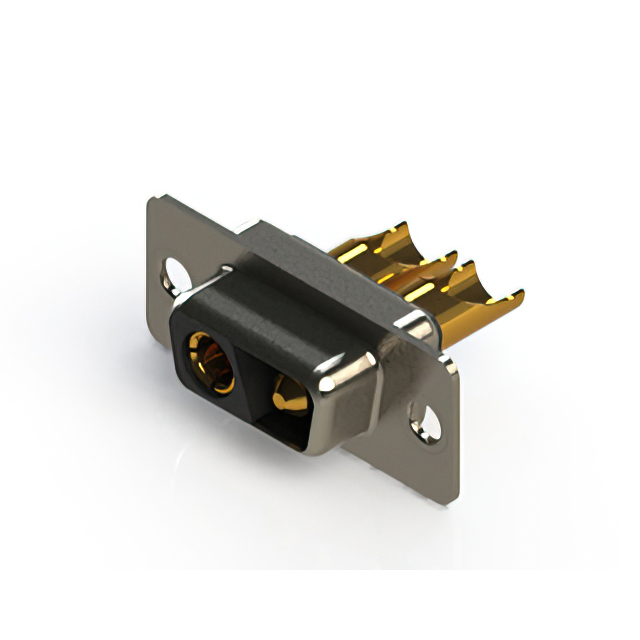

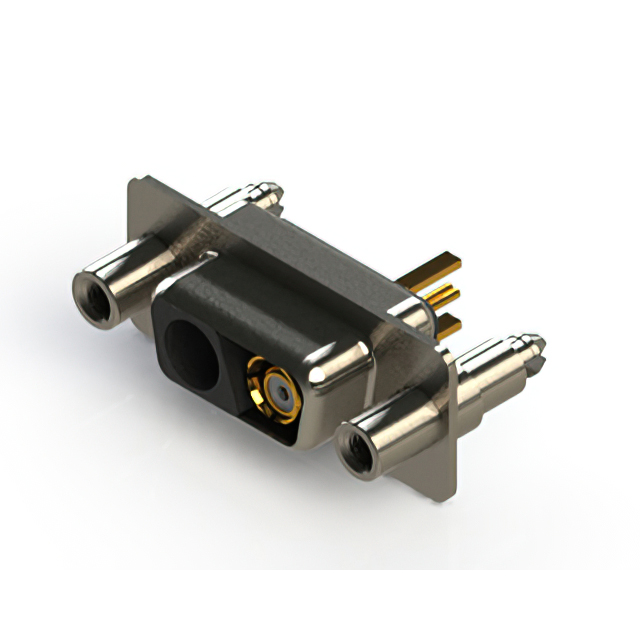

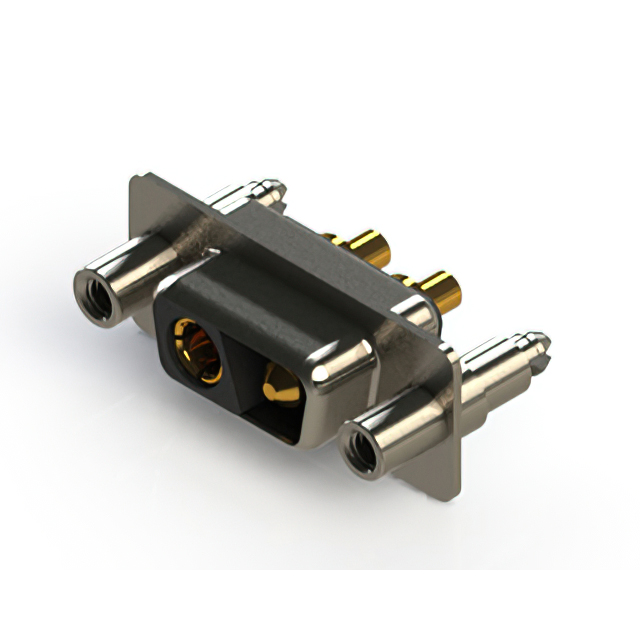

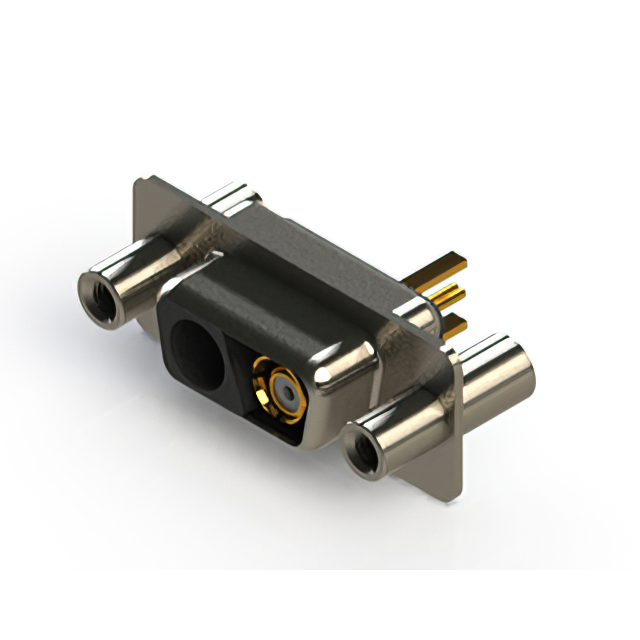

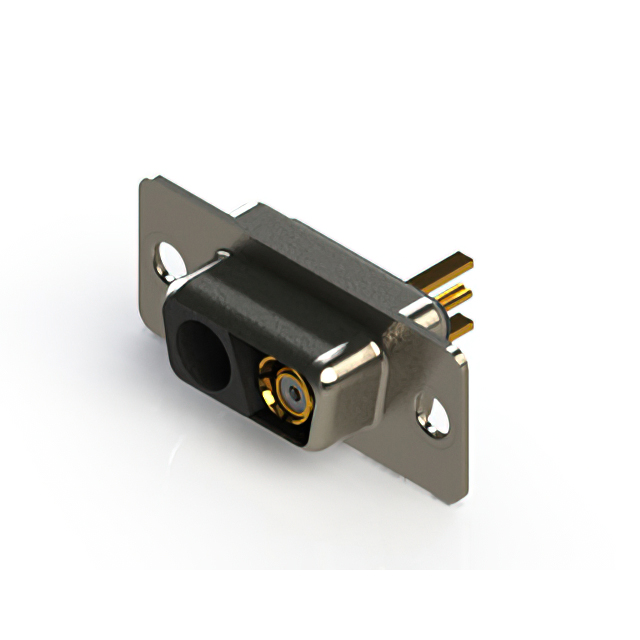

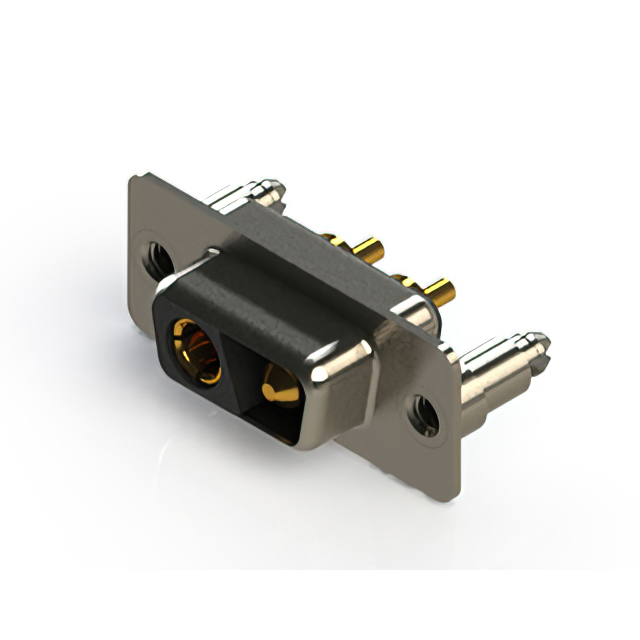

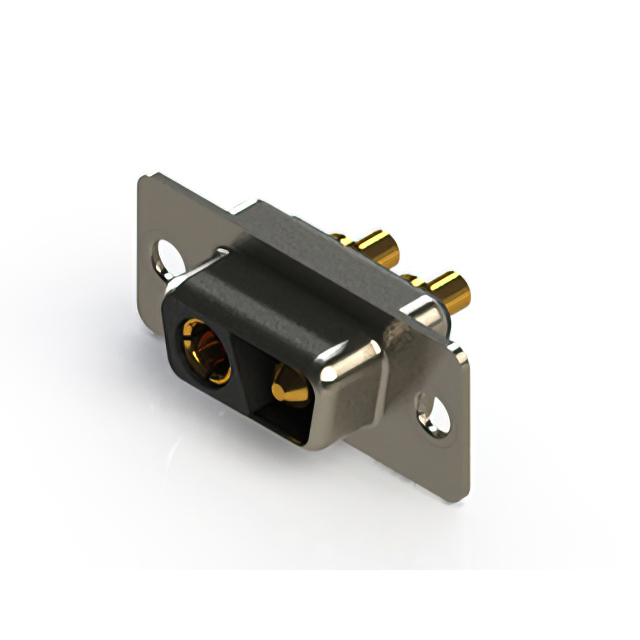

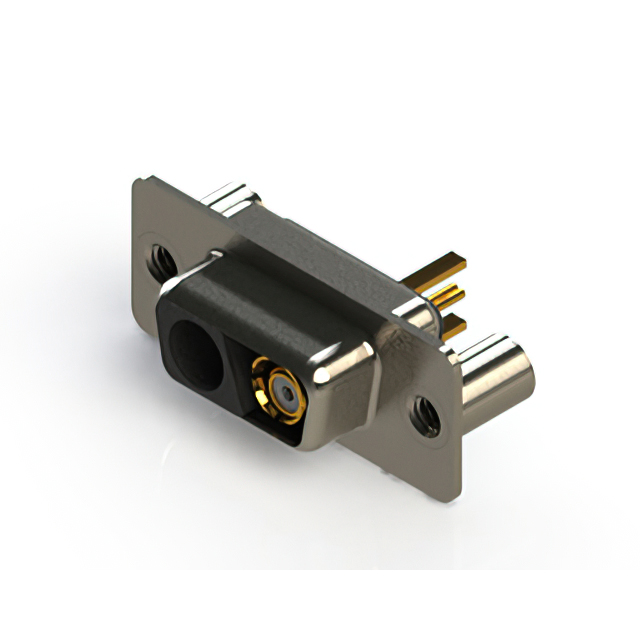

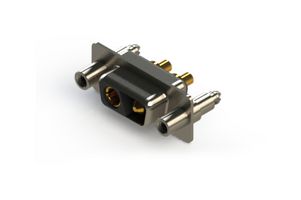

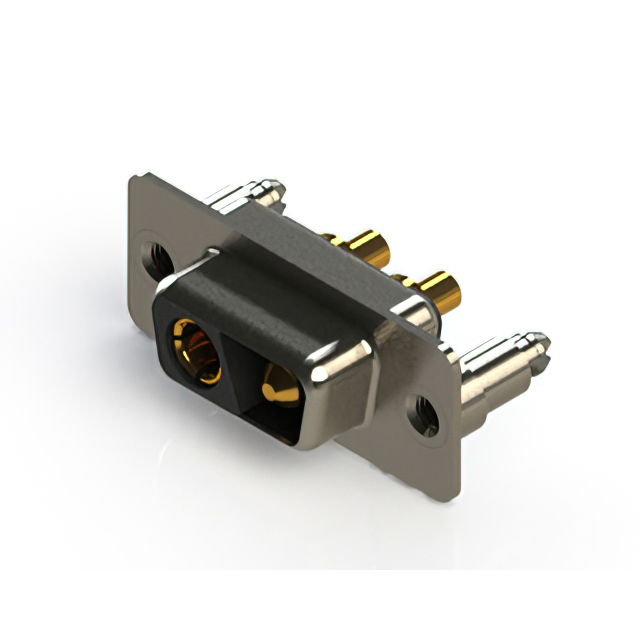

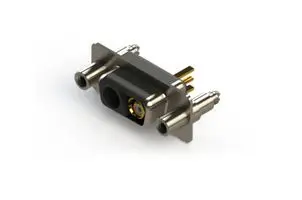

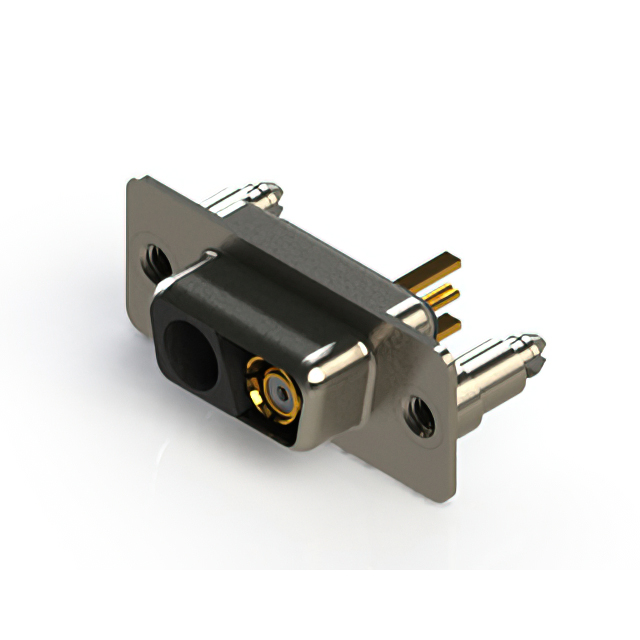

COMBINATION LAYOUT D SUB CONNECTOR, 628C SERIES, DE-2WK2, RECEPTACLE, 2 CONTACTS, 2 POWER, SOLDER
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Contact Material | Dielectric Material | Color | Number of Positions | Termination | Contact Type | Connector Style | Shell Size, Connector Layout | Shell Material, Finish | Number of Rows [custom] | Features | Connector Type | Contact Finish Thickness | Contact Finish | Material Flammability Rating | Current Rating (Amps) | Mounting Type | Flange Feature | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | -55 C | 125 °C | 125 VDC | Copper Alloy | Polyester Thermoplastic | Black | 2 | Solder | Signal and Power | Combo D-Sub | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Nickel Plated Steel | 2 | Board Lock Shielded | Receptacle Female Sockets and Male Pins | Flash | Gold | UL94 V-0 | 20 A | Through Hole | 4-40 | ||
 EDAC Inc. | -55 C | 125 °C | 125 VDC | Copper Alloy | Polyester Thermoplastic | Black | 2 | Solder | Coax Signal | Combo D-Sub | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 2 | Shielded | Receptacle Female Sockets and Male Pins | Gold | UL94 V-0 | Through Hole | M3 | 30 Áin | 0.76 Ám | |||
 EDAC Inc. | -55 C | 125 °C | 125 VDC | Copper Alloy | Polyester Thermoplastic | Black | 2 | Solder | Coax Signal | Combo D-Sub | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Nickel Plated Steel | 2 | Board Lock Shielded | Receptacle Female Sockets and Male Pins | Flash | Gold | UL94 V-0 | Through Hole | Board Side (4-40) | |||
 EDAC Inc. | -55 C | 125 °C | 125 VDC | Copper Alloy | Polyester Thermoplastic | Black | 2 | Solder | Coax Signal | Combo D-Sub | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 2 | Board Lock Shielded | Receptacle Female Sockets and Male Pins | Gold | UL94 V-0 | Through Hole | Board Side (4-40) | 30 Áin | 0.76 Ám | |||
 EDAC Inc. | -55 C | 125 °C | 125 VDC | Copper Alloy | Polyester Thermoplastic | Black | 2 | Solder | Signal and Power | Combo D-Sub | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Nickel Plated Steel | 2 | Board Lock Shielded | Receptacle Female Sockets and Male Pins | Gold | UL94 V-0 | 10 A | Through Hole | Board Side (4-40) | 30 Áin | 0.76 Ám | |
 EDAC Inc. | -55 C | 125 °C | 125 VDC | Copper Alloy | Polyester Thermoplastic | Black | 2 | Solder | Signal and Power | Combo D-Sub | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Nickel Plated Steel | 2 | Shielded | Receptacle Female Sockets and Male Pins | Flash | Gold | UL94 V-0 | 20 A | Through Hole | Housing/Shell (Unthreaded) | ||
 EDAC Inc. | -55 C | 125 °C | 125 VDC | Copper Alloy | Polyester Thermoplastic | Black | 2 | Solder | Coax Signal | Combo D-Sub | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Nickel Plated Steel | 2 | Shielded | Receptacle Female Sockets and Male Pins | Flash | Gold | UL94 V-0 | Through Hole | Board Side (4-40) | |||
 EDAC Inc. | -55 C | 125 °C | 125 VDC | Copper Alloy | Polyester Thermoplastic | Black | 2 | Solder | Coax Signal | Combo D-Sub | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 2 | Board Lock Shielded | Receptacle Female Sockets and Male Pins | Gold | UL94 V-0 | Through Hole | M3 | 30 Áin | 0.76 Ám | |||
 EDAC Inc. | -55 C | 125 °C | 125 VDC | Copper Alloy | Polyester Thermoplastic | Black | 2 | Solder | Coax Signal | Combo D-Sub | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Nickel Plated Steel | 2 | Board Lock Shielded | Receptacle Female Sockets and Male Pins | Gold | UL94 V-0 | Through Hole | 4-40 | 30 Áin | 0.76 Ám | ||
 EDAC Inc. | -55 C | 125 °C | 125 VDC | Copper Alloy | Polyester Thermoplastic | Black | 2 | Signal and Power | Combo D-Sub | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Nickel Plated Steel | 2 | Shielded | Receptacle Female Sockets and Male Pins | Gold | UL94 V-0 | 40 A | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | 30 Áin | 0.76 Ám |
