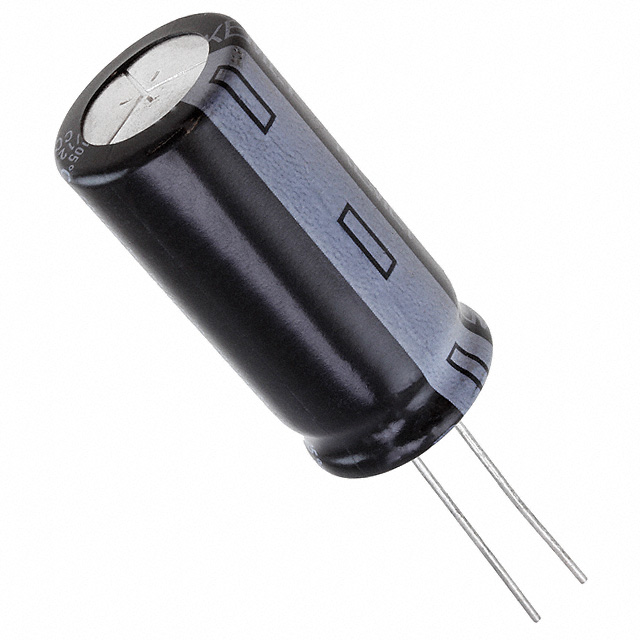

ESH228M Series
Manufacturer: KEMET
Beta
⌘K
ELECTROLYTIC CAPACITOR, 2200 ΜF, 25 V, ± 20%, PC PIN, 2000 HOURS @ 105°C, POLAR
| Part | Ripple Current @ High Frequency | Size / Dimension [diameter] | Size / Dimension [diameter] | Applications | Polarization | Voltage - Rated | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Lifetime @ Temp. | Tolerance | Ripple Current @ Low Frequency | Mounting Type | Capacitance | Lead Spacing | Lead Spacing | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 1.4145 A | 0.63 in | 16 mm | General Purpose | Polar | 25 VDC | -40 C | 105 ░C | Can Radial | 1.063 in | 27 mm | 2000 Hrs | 20 % | 1.23 A | Through Hole | 2200 µF | 0.295 in | 7.5 mm | |
 KEMET | 1.7595 A | 0.709 in | 18 mm | General Purpose | Polar | 50 VDC | -40 C | 105 ░C | Can Radial | 1.496 in | 2000 Hrs | 20 % | 1.53 A | Through Hole | 2200 µF | 0.295 in | 7.5 mm | 38 mm |
