30-01 Series

Catalog

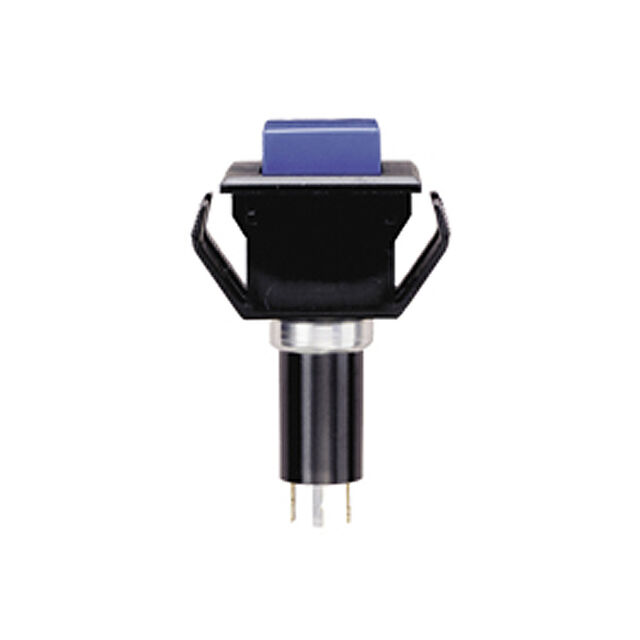

SWITCH PUSH SPST-NO 1A 115V

Part	Electrical Life	Actuator Type	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Marking	Termination Style	Current Rating (Amps)	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Mounting Type	Circuit	Type	Features	Voltage Rating - AC	Color - Actuator/Cap
Grayhill Inc. 30-01-04-500-07	200000 Cycles	Button Square	Off-Mom	85 °C	-40 C	No Marking	Solder Lug	1 A	15.49 mm	15.49 mm	Panel Mount Front	SPST-NO	Standard	Overtravel Tactile Feedback	115 V	Black
Grayhill Inc. 30-01-01-500-04	1000000 Cycles	Button Square	Off-Mom	85 °C	-40 C	No Marking	Solder Lug	1 A	15.49 mm	15.49 mm	Panel Mount Front	SPST-NO	Standard		115 V	Green
Grayhill Inc. 30-01-04-500-03	200000 Cycles	Button Square	Off-Mom	85 °C	-40 C	No Marking	Solder Lug	1 A	15.49 mm	15.49 mm	Panel Mount Front	SPST-NO	Standard	Overtravel Tactile Feedback	115 V	Red
Grayhill Inc. 30-01-04-500-06	200000 Cycles	Button Square	Off-Mom	85 °C	-40 C	No Marking	Solder Lug	1 A	15.49 mm	15.49 mm	Panel Mount Front	SPST-NO	Standard	Overtravel Tactile Feedback	115 V	Yellow
Grayhill Inc. 30-01-01-500-03	1000000 Cycles	Button Square	Off-Mom	85 °C	-40 C	No Marking	Solder Lug	1 A	15.49 mm	15.49 mm	Panel Mount Front	SPST-NO	Standard		115 V	Red
Grayhill Inc. 30-01-04-500-01	200000 Cycles	Button Square	Off-Mom	85 °C	-40 C	No Marking	Solder Lug	1 A	15.49 mm	15.49 mm	Panel Mount Front	SPST-NO	Standard	Overtravel Tactile Feedback	115 V	White
