3402.0014 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

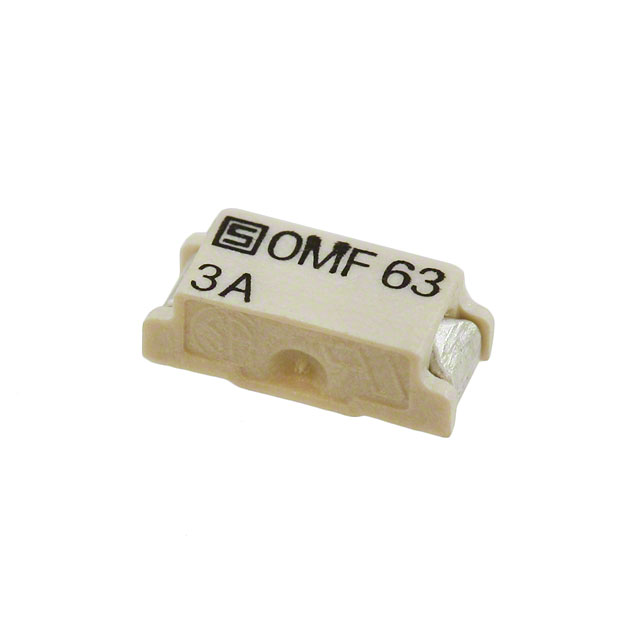

FUSE BRD MNT 3A 63VAC 63VDC 2SMD
| Part | Melting I˛t | Voltage Rating - DC | Melting I²t | Response Time | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Breaking Capacity @ Rated Voltage | Fuse Type | Mounting Type | Voltage Rating - AC | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 1.3 | 63 VDC | 1.3 | Fast Blow | -55 C | 125 °C | 2-SMD J-Lead | 0.122 in | 0.102 in | 2.6 mm | 7.4 mm | 0.291 in | 3.1 mm | 50 A | Board Mount (Cartridge Style Excluded) | Surface Mount | 63 V | 3 A |
 SCHURTER Inc. | 63 VDC | 1.3 | Fast Blow | -55 C | 125 °C | 2-SMD J-Lead | 0.122 in | 0.102 in | 2.6 mm | 7.4 mm | 0.291 in | 3.1 mm | 50 A | Board Mount (Cartridge Style Excluded) | Surface Mount | 63 V | 3 A |
