GBPC15 Series
Manufacturer: Surge
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
15A -600V - GBPC - BRIDGE
| Part | Mounting Type | Current - Reverse Leakage | Current - Average Rectified (Io) | Package / Case | Package Name | Operating Temperature (Min) | Operating Temperature (Max) | Voltage - Forward (Vf) (Max) | Voltage - Peak Reverse (Max) | Diode Type | Technology |
|---|---|---|---|---|---|---|---|---|---|---|---|

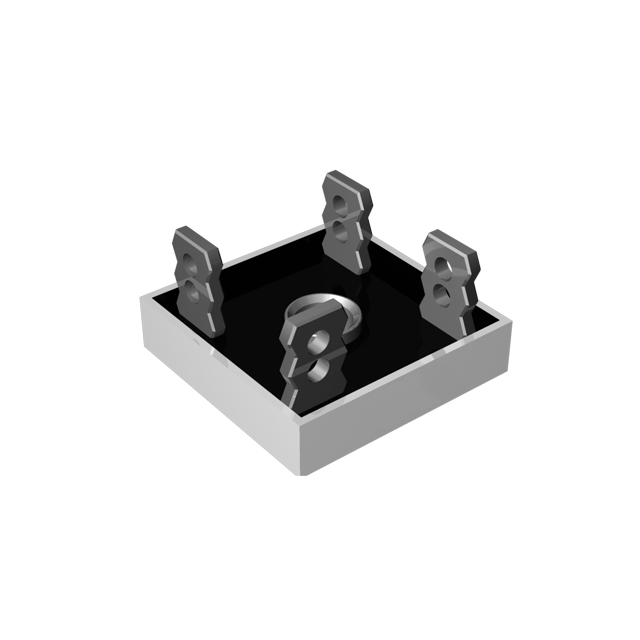

 Surge | QC Terminal | 5 µA | 15 A | 4-Square GBPC | GBPC | -50 °C | 150 °C | 1.1 V | 600 V | Single Phase | Standard |

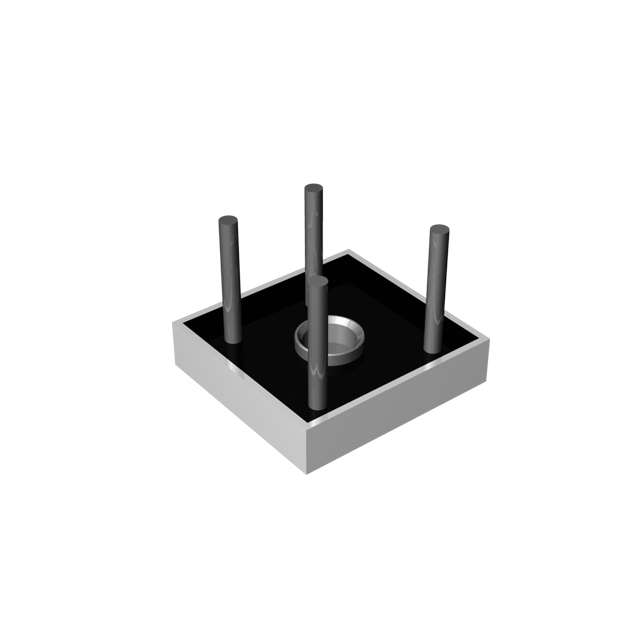

 Surge | 5 µA | 15 A | -65 °C | 150 °C | 1.1 V | 600 V | Single Phase | Standard |
