282 Series

Catalog

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 24 AWG, 10 AWG, 6 MM², CLAMP, 30 A

Part	Material - Insulation	Stripping Length [Min]	Stripping Length [Max]	Color	Voltage - IEC	Disconnect Type	Termination Style	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Number of Positions	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Type	Number of Levels	Current - IEC	Terminal - Width [y]	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	For Use With/Related Products	Style

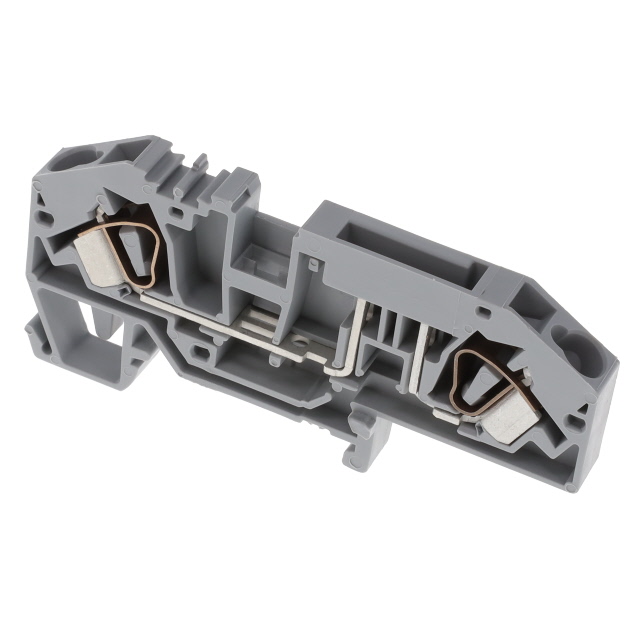

WAGO Corporation 282-696	Nylon 6/6 Polyamide (PA66)	12 mm	13 mm	Gray	400 V	Fuse	Push In Spring	0.2 mm²	6 mm²	2	24 AWG	10 AWG	Disconnect	1	30 A	8 mm
WAGO Corporation 282-681	Nylon 6/6 Polyamide (PA66)	12 mm	13 mm	Gray	800 V		Push In Spring	0.2 mm²	6 mm²		24 AWG	10 AWG	Feed Through	1	41 A	8 mm

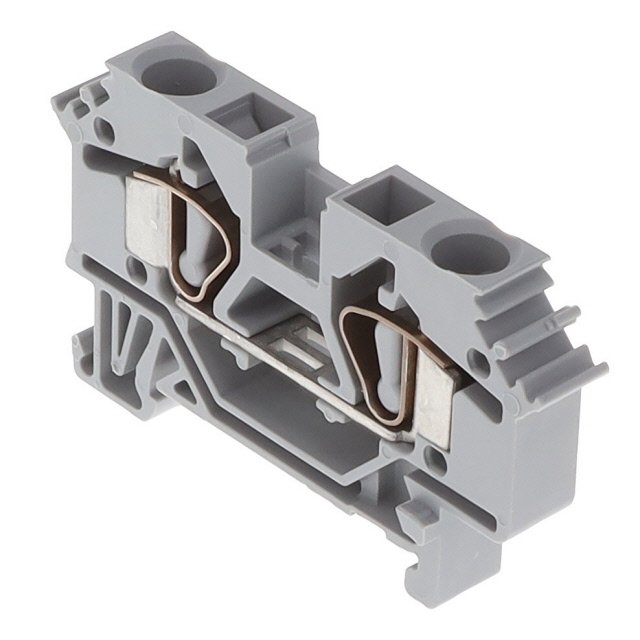

WAGO Corporation 282-601	Nylon 6/6 Polyamide (PA66)	12 mm	13 mm	Gray	800 V		Push In Spring	0.2 mm²	6 mm²	2	24 AWG	10 AWG	Feed Through	1	41 A	8 mm	6 mm˛	0.2 mm˛

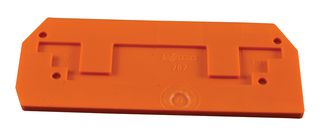

WAGO Corporation 282-328													End Plate						Terminal Blocks

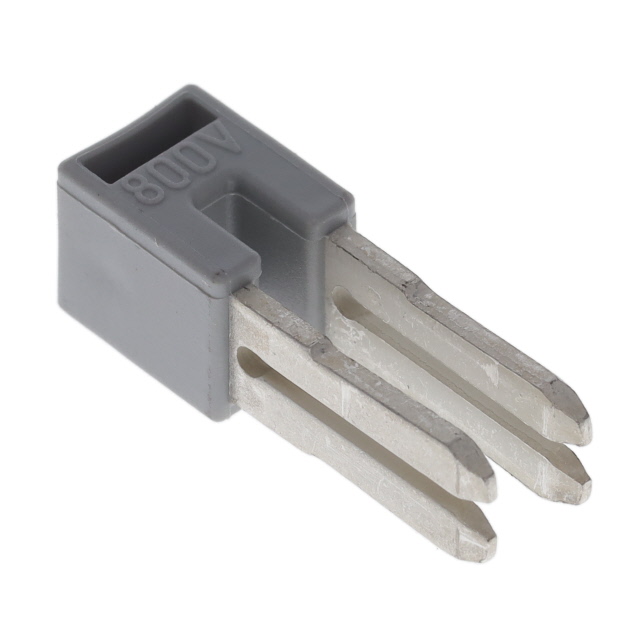

WAGO Corporation 282-402				Gray						4			Terminal Block Cross Connection						Terminal Blocks	Flat Pins

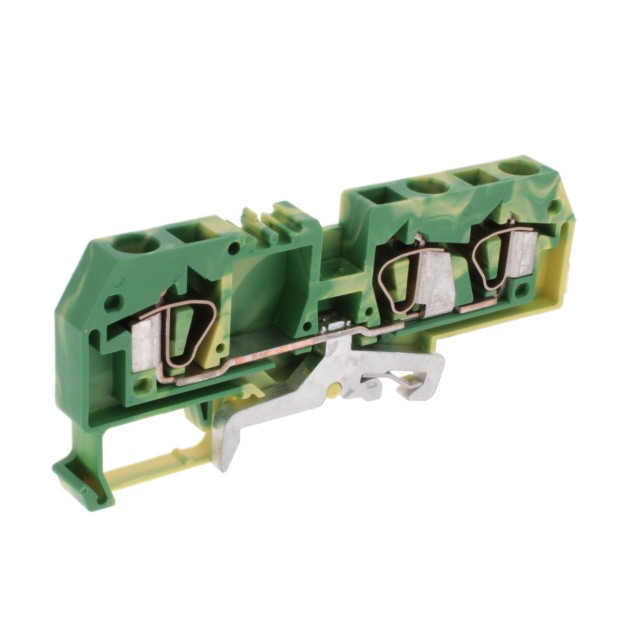

WAGO Corporation 282-687	Nylon 6/6 Polyamide (PA66)	12 mm	13 mm	Green Yellow			Push In Spring	0.2 mm²	6 mm²		24 AWG	10 AWG	Ground Earth	1		8 mm

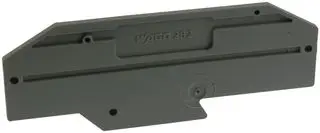

WAGO Corporation 282-334				Gray									End Plate						Terminal Blocks

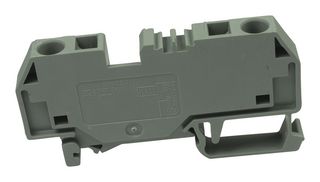

WAGO Corporation 282-901	Nylon 6/6 Polyamide (PA66)	12 mm	13 mm	Gray	800 V		Push In Spring	0.2 mm²	6 mm²	2	24 AWG	10 AWG	Feed Through	1	41 A	8 mm

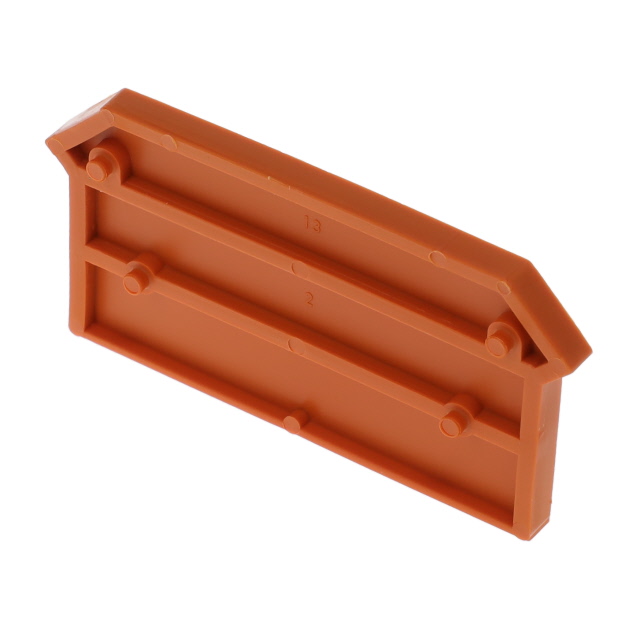

WAGO Corporation 282-317													End Plate						Terminal Blocks

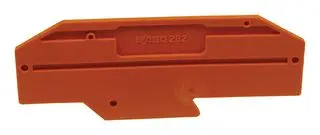

WAGO Corporation 282-333													End Plate						Terminal Blocks
