861-13 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN RCPT 8POS 0.039 GOLD PCB

Part	Insulation Material	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Number of Rows	Mounting Type	Contact Finish - Post	Fastening Type	Number of Positions	Contact Type	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Insulation Height	Insulation Height	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Current Rating (Amps)	Termination	Pitch - Mating	Pitch - Mating	Insulation Height [z]
Mill-Max Manufacturing Corp. 861-13-008-10-002000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	10 Áin	0.25 çm	Circular	1	Through Hole	Gold	Push-Pull	8	Female Socket	0.092 in	2.34 mm	UL94 V-0	All	0.76 Ám	30 Áin	Black	0.098 "	2.5 mm	Gold	-55 C	125 °C	Receptacle	3 A	Solder	1 mm	0.039 in
Mill-Max Manufacturing Corp. 861-13-009-30-002000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	10 Áin	0.25 çm	Circular	1	Surface Mount	Gold	Push-Pull	9	Female Socket			UL94 V-0	All	0.76 Ám	30 Áin	Black		3.78 mm	Gold	-55 C	125 °C	Receptacle	3 A	Solder	1 mm	0.039 in	0.149 in
Mill-Max Manufacturing Corp. 861-13-041-10-002000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	10 Áin	0.25 çm	Circular	1	Through Hole	Gold	Push-Pull	41	Female Socket	0.092 in	2.34 mm	UL94 V-0	All	0.76 Ám	30 Áin	Black	0.098 "	2.5 mm	Gold	-55 C	125 °C	Receptacle	3 A	Solder	1 mm	0.039 in

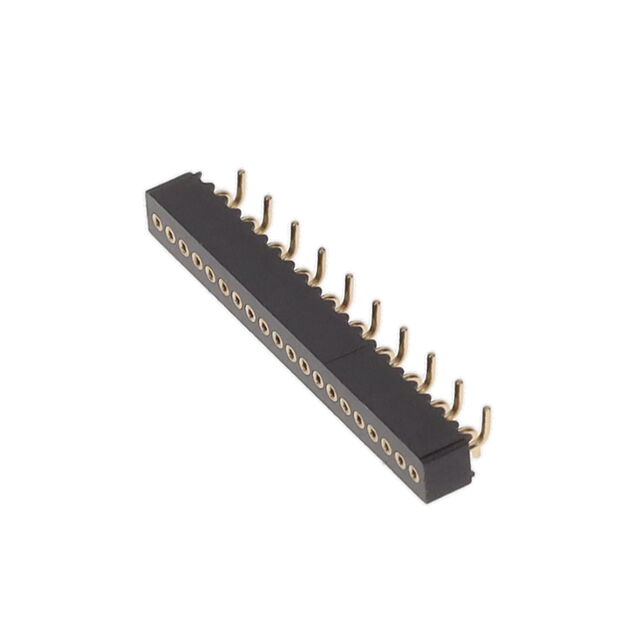

Mill-Max Manufacturing Corp. 861-13-020-30-002000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	10 Áin	0.25 çm	Circular	1	Surface Mount	Gold	Push-Pull	20	Female Socket			UL94 V-0	All	0.76 Ám	30 Áin	Black		3.78 mm	Gold	-55 C	125 °C	Receptacle	3 A	Solder	1 mm	0.039 in	0.149 in
Mill-Max Manufacturing Corp. 861-13-010-10-002000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	10 Áin	0.25 çm	Circular	1	Through Hole	Gold	Push-Pull	10	Female Socket	0.092 in	2.34 mm	UL94 V-0	All	0.76 Ám	30 Áin	Black	0.098 "	2.5 mm	Gold	-55 C	125 °C	Receptacle	3 A	Solder	1 mm	0.039 in
Mill-Max Manufacturing Corp. 861-13-012-10-002000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	10 Áin	0.25 çm	Circular	1	Through Hole	Gold	Push-Pull	12	Female Socket	0.092 in	2.34 mm	UL94 V-0	All	0.76 Ám	30 Áin	Black	0.098 "	2.5 mm	Gold	-55 C	125 °C	Receptacle	3 A	Solder	1 mm	0.039 in
Mill-Max Manufacturing Corp. 861-13-013-10-002000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	10 Áin	0.25 çm	Circular	1	Through Hole	Gold	Push-Pull	13	Female Socket	0.092 in	2.34 mm	UL94 V-0	All	0.76 Ám	30 Áin	Black	0.098 "	2.5 mm	Gold	-55 C	125 °C	Receptacle	3 A	Solder	1 mm	0.039 in
Mill-Max Manufacturing Corp. 861-13-017-30-002000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	10 Áin	0.25 çm	Circular	1	Surface Mount	Gold	Push-Pull		Female Socket			UL94 V-0	All	0.76 Ám	30 Áin	Black		3.78 mm	Gold	-55 C	125 °C	Receptacle	3 A	Solder	1 mm	0.039 in	0.149 in

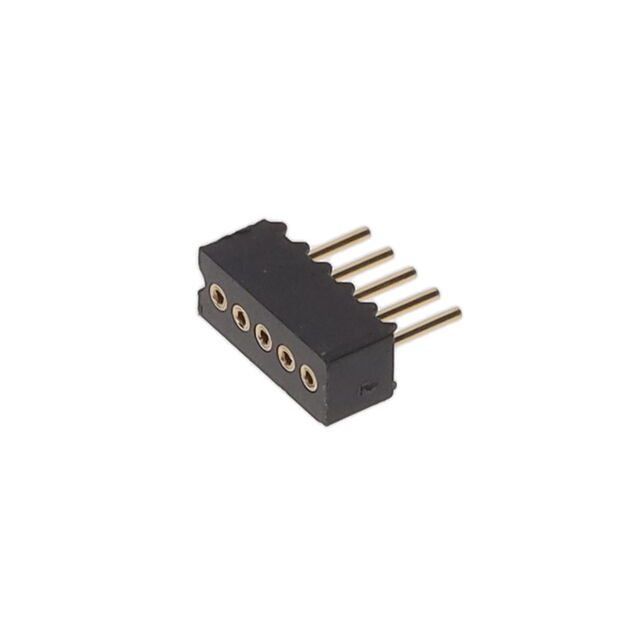

Mill-Max Manufacturing Corp. 861-13-005-10-002000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	10 Áin	0.25 çm	Circular	1	Through Hole	Gold	Push-Pull	5	Female Socket	0.092 in	2.34 mm	UL94 V-0	All	0.76 Ám	30 Áin	Black	0.098 "	2.5 mm	Gold	-55 C	125 °C	Receptacle	3 A	Solder	1 mm	0.039 in
Mill-Max Manufacturing Corp. 861-13-025-30-002000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	10 Áin	0.25 çm	Circular	1	Surface Mount	Gold	Push-Pull	25	Female Socket			UL94 V-0	All	0.76 Ám	30 Áin	Black		3.78 mm	Gold	-55 C	125 °C	Receptacle	3 A	Solder	1 mm	0.039 in	0.149 in
