FGN.0F Series

Manufacturer: LEMO

Catalog

CONN PLUG MALE 5POS GOLD CRIMP

Part	Shielding	Orientation	Color	Shell Finish	Shell Material	Fastening Type	Connector Type	Insert Material	Current Rating (Amps)	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening	Cable Opening	Contact Material	Mounting Type	Contact Finish - Mating	Material Flammability Rating	Ingress Protection	Number of Positions	Termination	Primary Material	Applications	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]
LEMO FGN.0F.305.YLC	Shielded	N (Normal)	Gray	Nickel	Aluminum Alloy	Push-Pull	Plug Male Pins	Polyetheretherketone (PEEK)	6.5 A	305	-15 °C	200 °C	0.354 in	9 mm	Brass	Free Hanging (In-Line)	Gold	UL94 V-0	IP67 - Dust Tight Waterproof	5	Crimp	Metal	Aerospace	39.4 µin	1 µm
LEMO FGN.0F.304.YLB	Shielded	N (Normal)	Gray	Nickel	Aluminum Alloy	Push-Pull	Plug Male Pins	Polyetheretherketone (PEEK)	7 A	304	-15 °C	200 °C	0.354 in	9 mm	Brass	Free Hanging (In-Line)	Gold	UL94 V-0	IP67 - Dust Tight Waterproof	4	Crimp	Metal	Aerospace	39.4 µin	1 µm
LEMO FGN.0F.304.CLC	Shielded	N (Normal)	Silver	Chrome	Brass	Push-Pull	Plug Male Pins	Polyetheretherketone (PEEK)	7 A	304	-55 C	200 °C	0.354 in	9 mm	Brass	Free Hanging (In-Line)	Gold	UL94 V-0	IP67 - Dust Tight Waterproof	4	Crimp	Metal	Aerospace	39.4 µin	1 µm
LEMO FGN.0F.302.YLCF	Shielded	N (Normal)	Gray	Nickel	Aluminum Alloy	Push-Pull	Plug Male Pins	Polyetheretherketone (PEEK)	10 A	302	-15 °C	200 °C	0.354 in	9 mm	Brass	Free Hanging (In-Line)	Gold	UL94 V-0	IP67 - Dust Tight Waterproof	2	Crimp	Metal	Aerospace	39.4 µin	1 µm

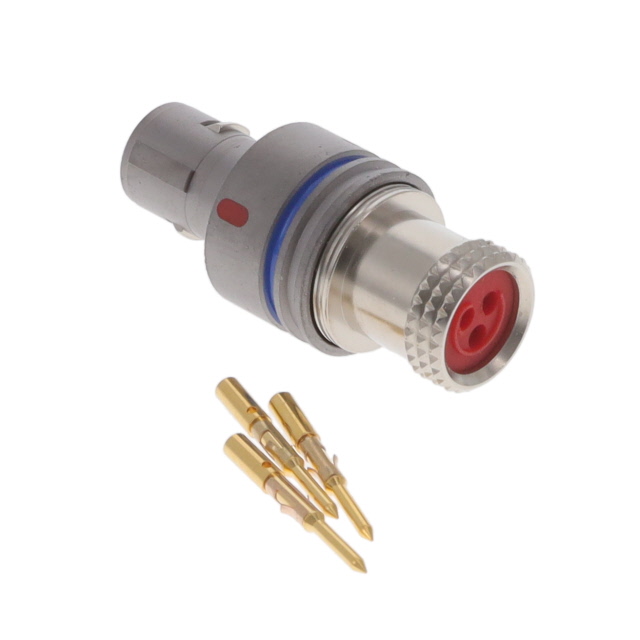

LEMO FGN.0F.303.XLC	Shielded	N (Normal)	Gray	Nickel	Aluminum Alloy	Push-Pull	Plug Male Pins	Polyetheretherketone (PEEK)	8 A	303	-15 °C	200 °C	0.354 in	9 mm	Brass	Free Hanging (In-Line)	Gold	UL94 V-0	IP67 - Dust Tight Waterproof		Crimp	Metal	Aerospace	39.4 µin	1 µm

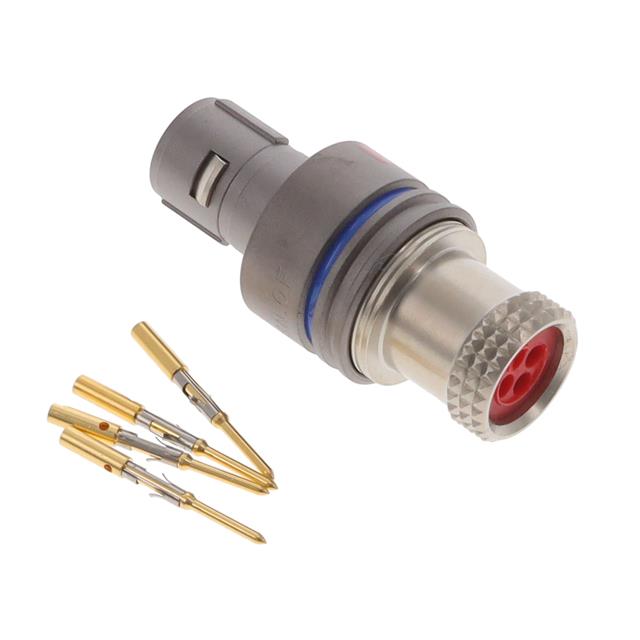

LEMO FGN.0F.304.XLC	Shielded	N (Normal)	Gray	Nickel	Aluminum Alloy	Push-Pull	Plug Male Pins	Polyetheretherketone (PEEK)	7 A	304	-15 °C	200 °C	0.354 in	9 mm	Brass	Free Hanging (In-Line)	Gold	UL94 V-0	IP67 - Dust Tight Waterproof	4	Crimp	Metal	Aerospace	39.4 µin	1 µm
LEMO FGN.0F.305.CLC	Shielded	N (Normal)	Silver	Chrome	Brass	Push-Pull	Plug Male Pins	Polyetheretherketone (PEEK)	6.5 A	305	-55 C	200 °C	0.354 in	9 mm	Brass	Free Hanging (In-Line)	Gold	UL94 V-0	IP67 - Dust Tight Waterproof	5	Crimp	Metal	Aerospace	39.4 µin	1 µm
LEMO FGN.0F.305.XLC	Shielded	N (Normal)	Gray	Nickel	Aluminum Alloy	Push-Pull	Plug Male Pins	Polyetheretherketone (PEEK)	6.5 A	305	-15 °C	200 °C	0.354 in	9 mm	Brass	Free Hanging (In-Line)	Gold	UL94 V-0	IP67 - Dust Tight Waterproof	5	Crimp	Metal	Aerospace	39.4 µin	1 µm
