19C300 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

PRESSURE SENSOR 0PSI TO 300PSI G

Part	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Accuracy	Voltage - Supply	Output [Max]	Output [Min]	Output	Port Style	Features	Operating Pressure	Operating Pressure	Package / Case	Maximum Pressure	Maximum Pressure	Pressure Type	Termination Style	Port Size	Port Size	Port Size	Applications
Honeywell Sensing and Productivity Solutions 19C300PG5L
Honeywell Sensing and Productivity Solutions 19C300PG3K	125 °C	-40 C	Analog Voltage	0.25 %	15 VDC	100 mV	0 mV	10 V	No Port	Temperature Compensated	300 PSI	2068.43 kPa	Cylinder	6205.28 kPa	900 PSI	Vented Gauge	Flex Cable
Honeywell Sensing and Productivity Solutions 19C300PA1K	125 °C	-40 C	Analog Voltage	0.25 %	15 VDC	100 mV	0 mV	10 V	No Port	Temperature Compensated	300 PSI	2068.43 kPa	Cylinder	6205.28 kPa	900 PSI		Flex Cable	Cell w/Body O-Ring
Honeywell Sensing and Productivity Solutions 19C300PV4K	125 °C	-40 C	Analog Voltage	0.25 %	15 VDC	100 mV	0 mV	10 V	Threaded	Temperature Compensated	-300 PSI	-2068.43 kPa	Cylinder Threaded	-6205.28 kPa	-900 PSI	Vacuum	Flex Cable	Male NPT	0.125 in	3.18 mm

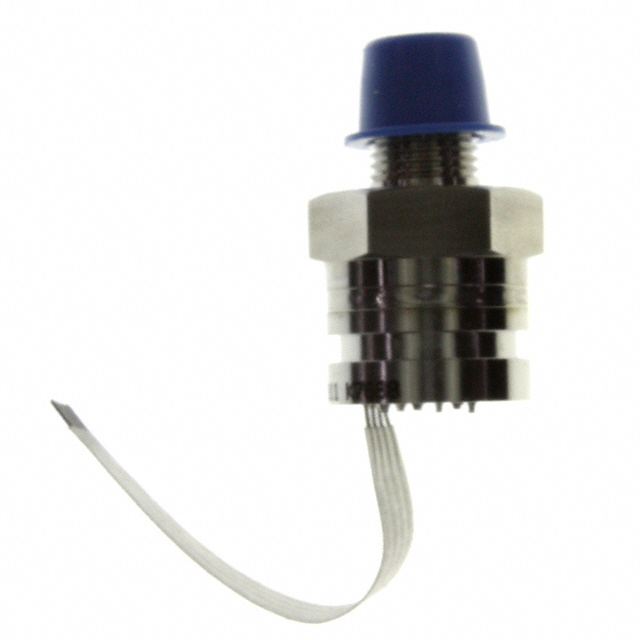

Honeywell Sensing and Productivity Solutions 19C300PG4K	125 °C	-40 C	Analog Voltage	0.25 %	15 VDC	100 mV	0 mV	10 V	Threaded	Temperature Compensated	300 PSI	2068.43 kPa	Cylinder Threaded	6205.28 kPa	900 PSI	Vented Gauge	Flex Cable	Male NPT	0.125 in	3.18 mm	Board Mount
Honeywell Sensing and Productivity Solutions 19C300PG5L	125 °C	-40 C	Analog Voltage	0.25 %		100 mV	0 mV		Threaded	Temperature Compensated	300 PSI	2068.43 kPa	Cylinder Threaded	6205.28 kPa	900 PSI	Vented Gauge	Flex Cable	Male NPT	0.25 "	0.25 in
Honeywell Sensing and Productivity Solutions 19C300PV2K	125 °C	-40 C	Analog Voltage	0.25 %	15 VDC	100 mV	0 mV	10 V	No Port	Temperature Compensated	-300 PSI	-2068.43 kPa	Cylinder	-6205.28 kPa	-900 PSI	Vacuum	Flex Cable
Honeywell Sensing and Productivity Solutions 19C300PG1L	125 °C	-40 C	Analog Voltage	0.25 %		100 mV	0 mV		No Port	Temperature Compensated	300 PSI	2068.43 kPa	Cylinder	6205.28 kPa	900 PSI	Vented Gauge	Flex Cable	Cell w/Body O-Ring
Honeywell Sensing and Productivity Solutions 19C300PG2L	125 °C	-40 C	Analog Voltage	0.25 %		100 mV	0 mV		No Port	Temperature Compensated	300 PSI	2068.43 kPa	Cylinder	6205.28 kPa	900 PSI	Vented Gauge	Flex Cable
Honeywell Sensing and Productivity Solutions 19C300PA6K	125 °C	-40 C	Analog Voltage	0.25 %	15 VDC	100 mV	0 mV	10 V	Threaded	Temperature Compensated	300 PSI	2068.43 kPa	Cylinder Threaded	6205.28 kPa	900 PSI		Flex Cable	Male	0.4375 in 11.11 mm
