G42K0C-P Series
Manufacturer: ODU
Beta
⌘K

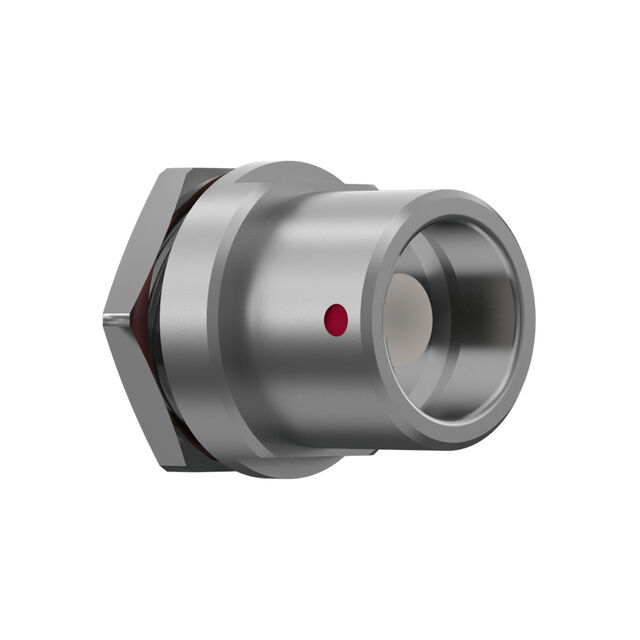

ODU MINI-SNAP RECEPT, STY 4, SZ
| Part | Fastening Type | Primary Material | Orientation | Current Rating (Amps) | Mounting Feature | Color | Shell Finish | Number of Positions | Contact Material | Applications | Voltage Rating | Features | Shell Material | Ingress Protection | Mounting Type | Contact Finish - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Shell Size - Insert [custom] | Insert Material | Connector Type | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Push-Pull | Metal | 0 | 15 A | Bulkhead - Rear Side Nut | Silver | Chrome over Nickel | 5 | Brass | Industrial Medical Military Testing Equipment & Measurement | 500 V | Ground | Brass | IP68 - Dust Tight Waterproof | Panel Mount | Gold | 120 °C | -40 C | 2 | Polyetheretherketone (PEEK) | Receptacle Female Sockets | Shielded | |
Push-Pull | Metal | 0 | 15 A | Bulkhead - Rear Side Nut | Silver | Chrome over Nickel | 5 | Brass | Industrial Medical Military Testing Equipment & Measurement | 500 V | Ground | Brass | IP68 - Dust Tight Waterproof | Panel Mount | Gold | 120 °C | -40 C | 2 | Polyetheretherketone (PEEK) | Receptacle Female Sockets | Shielded |
