QBHP686 Series
Manufacturer: QT Brightek (QTB)
Beta
⌘K
LED RED CLEAR 1411 SMD
| Part | Configuration | Millicandela Rating | Current - Test | Wavelength - Dominant | Size / Dimension [x] | Size / Dimension [y] | Lens Color | Wavelength - Peak | Height (Max) [z] | Mounting Type | Lens Transparency | Color | Viewing Angle | Lens Style | Voltage - Forward (Vf) (Typ) | Package / Case | Package / Case | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Radiant Intensity (Ie) Min @ If | Orientation | Type | Current - DC Forward (If) (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

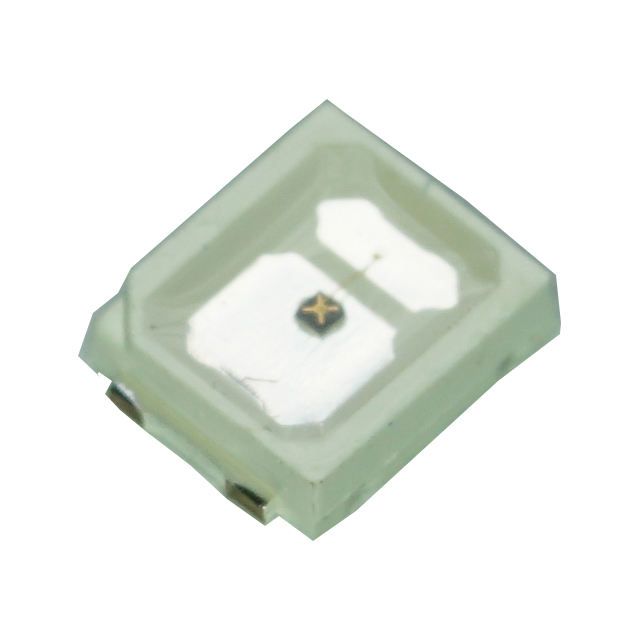

 QT Brightek (QTB) | Standard | 1200 mcd | 150 mA | 644 nm | 3.5 mm | 2.8 mm | Colorless | 660 nm | 1 mm | Surface Mount | Clear | Red | 120 ° | Rectangle with Flat Top | 2.5 V | 3528 Metric | 1411 | 1411 | ||||||

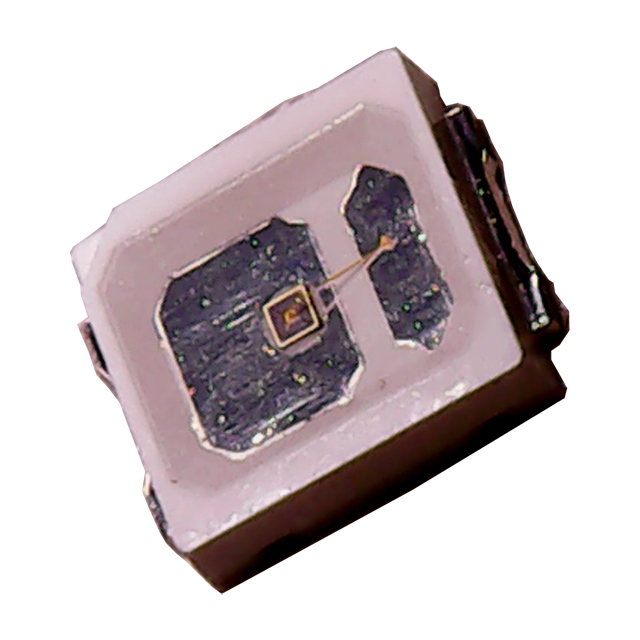

 QT Brightek (QTB) | Surface Mount | 120 ° | 1.8 V | 3528 Metric | 1411 | 80 °C | -40 C | 5.6 mW/sr | Top View | Infrared (IR) | 100 mA |
