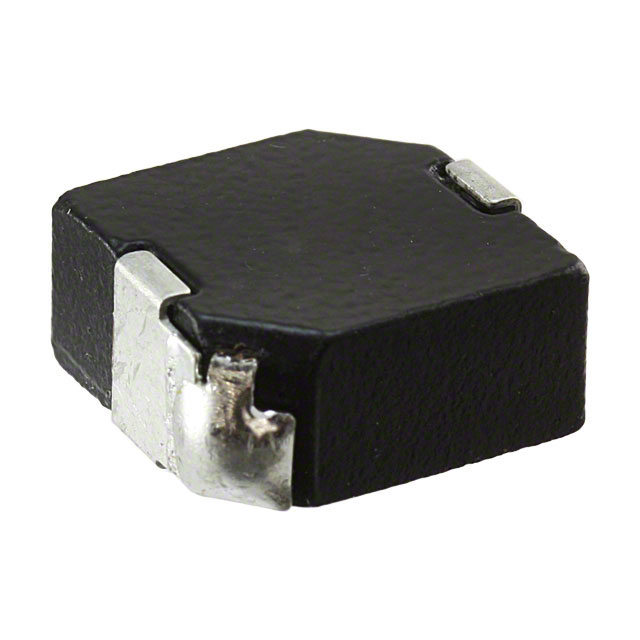

SRP1270 Series
Manufacturer: Bourns Inc.
Beta
⌘K
IND13.7X13.7X7MM,5.6UH20%14A,SHDSMD /TAPE & REEL - 13" REEL
| Part | Inductance Frequency - Test | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Shielding | Material - Core | Package / Case | DC Resistance (DCR) [Max] | Mounting Type | Current - Saturation (Isat) | Frequency - Self Resonant | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Tolerance | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Inductance | Type | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 100 kHz | -55 C | 125 °C | 14 A | Shielded | Iron | Nonstandard | 10 mOhm | Surface Mount | 26.5 A | 13 MHz | 0.539 " | 0.539 " | 13.7 mm | 13.7 mm | 20 % | 0.276 in | 7 mm | 5.6 µH | Drum Core Wirewound | |
 Bourns Inc. | 100 kHz | -55 C | 125 °C | 41 A | Shielded | Iron | Nonstandard | Surface Mount | 65 A | 85 MHz | 0.539 " | 0.539 " | 13.7 mm | 13.7 mm | 20 % | 0.276 in | 7 mm | 470 nH | Drum Core Wirewound | 1.2 mOhm | |
Bourns Inc. | 100 kHz | -55 C | 125 °C | 18 A | Shielded | Iron | Nonstandard | Surface Mount | 35 A | 20 MHz | 0.539 " | 0.539 " | 13.7 mm | 13.7 mm | 20 % | 0.276 in | 7 mm | 3.3 µH | Drum Core Wirewound | 6.6 mOhm | |
Bourns Inc. | 100 kHz | -55 C | 125 °C | 27 A | Shielded | Iron | Nonstandard | 2.6 mOhm | Surface Mount | 48 A | 31 MHz | 0.539 " | 0.539 " | 13.7 mm | 13.7 mm | 20 % | 0.276 in | 7 mm | 1.5 µH | Drum Core Wirewound | |
Bourns Inc. | 100 kHz | -55 C | 125 °C | 46 A | Shielded | Iron | Nonstandard | 0.9 mOhm | Surface Mount | 65 A | 95 MHz | 0.539 " | 0.539 " | 13.7 mm | 13.7 mm | 20 % | 0.276 in | 7 mm | 320 nH | Drum Core Wirewound | |
 Bourns Inc. | 100 kHz | -55 C | 125 °C | 12 Amps | Shielded | Iron | Nonstandard | Surface Mount | 21 A | 12 MHz | 0.539 " | 0.539 " | 13.7 mm | 13.7 mm | 20 % | 0.276 in | 7 mm | 6.8 µH | Drum Core Wirewound | 14 mOhm |
