Antennas GPS+2.4G
Antennas GPS+2.4G
| Part | Number of Bands | Features | Gain | Power - Max [Max] | Height (Max) [Max] | Height (Max) [Max] | Frequency Range [Max] | Frequency Range [Min] | Frequency Group | RF Family/Standard | Termination | Applications | Frequency (Center/Band) | Mounting Type | VSWR | Antenna Type | Frequency Group [Max] | Frequency Group [Min] | Height (Max) [Max] | Return Loss |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 3 | Cable - 150mm | 1 dBi 3 dBi | 10 W | 15 mm | 0.591 in | 1.606 GHz 2.5 GHz 5.875 GHz | 1.559 GHz 2.4 GHz 5.15 GHz | Wide Band | 802.15.4 Bluetooth Navigation WiFi | IPEX MHF1 U.FL (UMCC) | Bluetooth GNSS Wi-Fi Zigbee™ | 1.5825 GHz 2.45 GHz 5.5125 GHz | Adhesive | 2.5 | PCB Trace | ||||

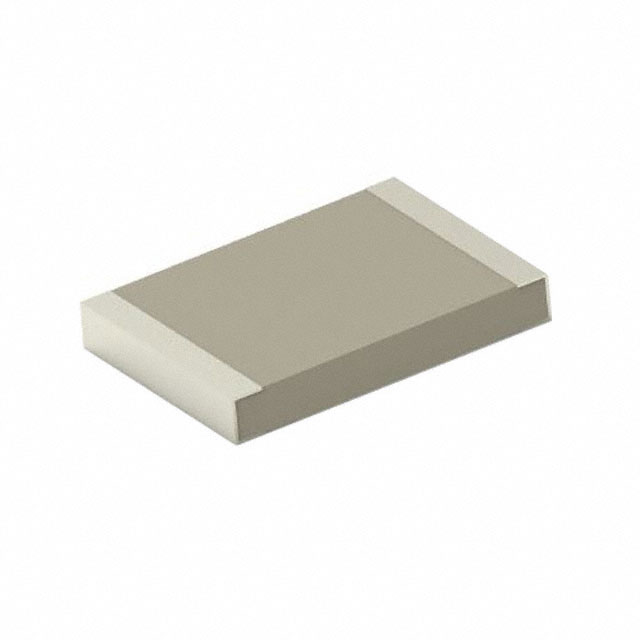

 TE Connectivity Raychem Cable Protection | 1 | 10 W | 0.7 mm | 0.028 in | 1.615 GHz | 1.57 GHz | UHF | Navigation | Solder | GNSS | 1.5925 GHz | Surface Mount | 2 | Chip | 2 GHz | 1 GHz | ||||

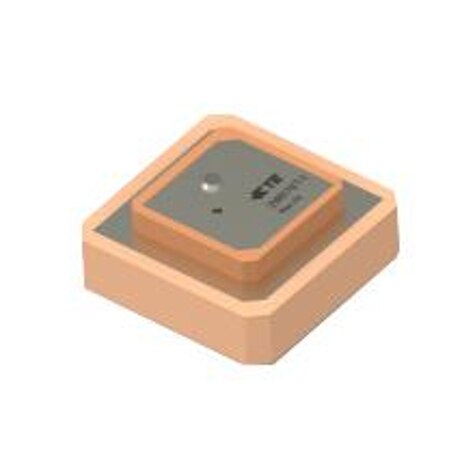

 TE Connectivity Raychem Cable Protection | 2 | 4.5 dBi 5 dBi | 0.585 in | 1.23 GHz 1.587 GHz | 1.224 GHz 1.572 GHz | UHF | Navigation | Pin | GNSS | 1.227 GHz 1.575 GHz | Adhesive | Ceramic Patch | 2 GHz | 1 GHz | 14.86 mm | -10 dB |
