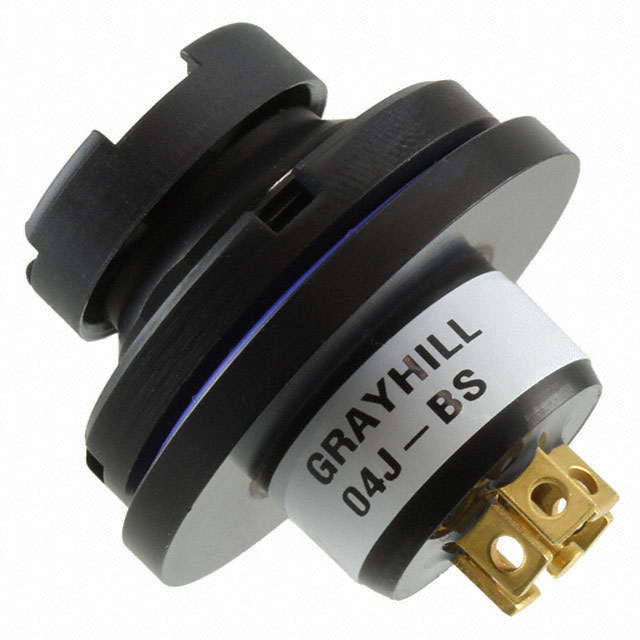

04J-BS Series
Manufacturer: Grayhill Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
JOYSTICKS ACTIVE 4DIRECTION 2000MA SOLDER LUG
| Part | Electrical Life (Cycles) | Mechanical Life (Cycles) | Operating Force | Ingress Protection IP Rating | Ingress Protection Description | Termination Style | Actuator Type | Axis Count | Type | Output | Mounting Type | Current Rating | Contact Material | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature (Min) | Operating Temperature (Max) | Switch Function | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 100000 Cycles | 100000 Cycles | 454 gf | IP67 IP68 | Dust Tight Waterproof | Solder Lug | Conical | 2 Axis | 2 - Axis Navigation Switch | Digital (Mechanical Switch) | Panel Mount | 2 A | Nickel | 28 V | 115 V | -55 °C | 85 °C | 4-Way Directional Center Select | Gold |
 Grayhill Inc. | 100000 Cycles | 100000 Cycles | 454 gf | IP67 IP68 | Dust Tight Waterproof | Solder Lug | Conical | 2 Axis | 2 - Axis Navigation Switch | Digital (Mechanical Switch) | Panel Mount | 10 mA | Nickel | 5 V | -55 °C | 85 °C | 4-Way Directional Center Select | Gold | |
 Grayhill Inc. | 100000 Cycles | 100000 Cycles | 454 gf | IP67 IP68 | Dust Tight Waterproof | Solder Lug | Castle | 2 Axis | 2 - Axis Navigation Switch | Digital (Mechanical Switch) | Panel Mount | 2 A | Nickel | 28 V | 115 V | -55 °C | 85 °C | 4-Way Directional Center Select | Gold |
