80144 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

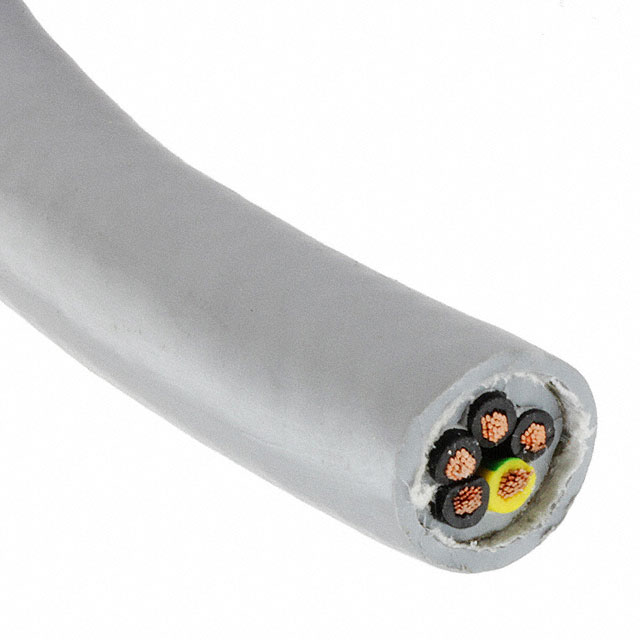

CABLE 5COND 16AWG SLATE SHLD
| Part | Shield Coverage | Shield Material | Length [x] | Length [x] | Conductor Material | Voltage | Wire Gauge | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Number of Conductors | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Conductor Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 85 % | Copper Tinned | 100 ft | 30.5 m | Copper Tinned | 600 V | 16 AWG | Polyurethane (PU) | 7.95 mm | 0.313 in | Slate | 65 | 34 AWG | Multi-Conductor | 5 | 90 °C | -50 °C | 0.0319 in | 0.81 mm | Braid | Polyphenylene Ether (PPE) |
