725-046 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 46POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Mounting Type	Number of Positions/Bay/Row	Termination	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Card Type	Contact Material	Contact Finish	Contact Type	Color	Read Out	Card Thickness [Max]	Card Thickness [Min]	Pitch	Pitch	Gender	Termination Rows	Number of Rows

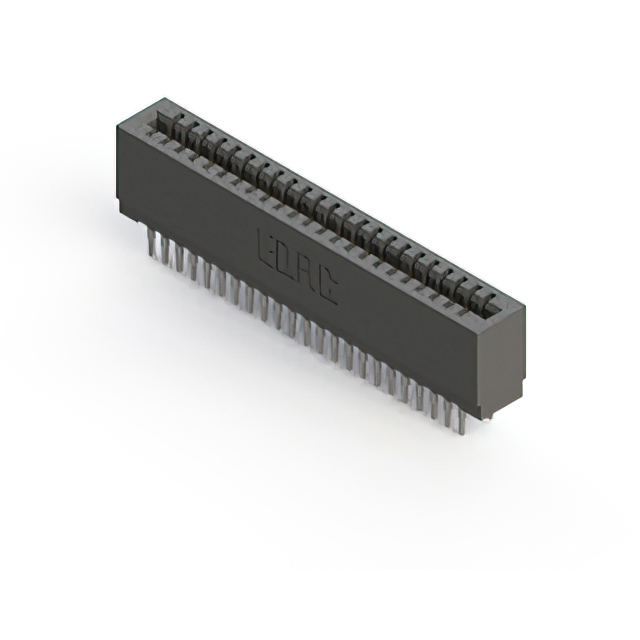

EDAC Inc. 725-046-541-201	2	Polyester Thermoplastic	Through Hole	23	Press-Fit Wire Wrap	2	30 Áin	0.76 Ám	-40 C	105 ░C	46	Non Specified - Dual Edge	Copper Alloy	Gold	Cantilever	Black	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Female
EDAC Inc. 725-046-540-101		Polyester Thermoplastic	Through Hole	46	Press-Fit Wire Wrap		30 Áin	0.76 Ám	-40 C	105 ░C	46	Non Specified - Single Edge	Copper Alloy	Gold	Cantilever	Black	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Female	1	1

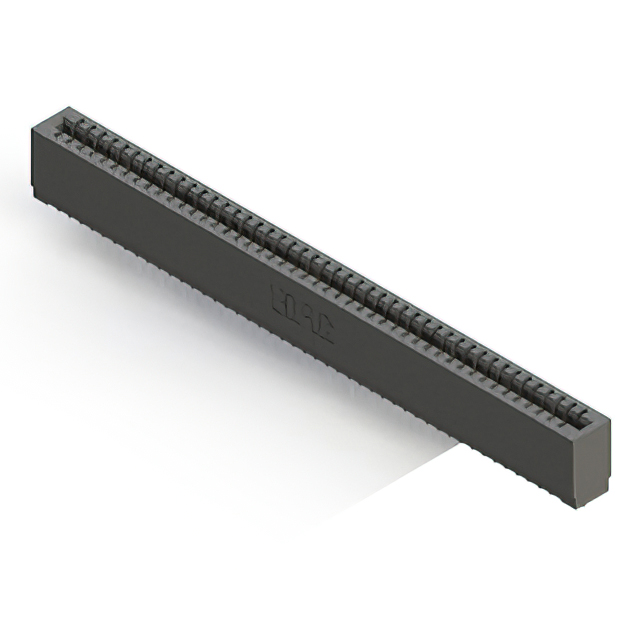

EDAC Inc. 725-046-520-101		Polyester Thermoplastic	Through Hole	46	Press-Fit		30 Áin	0.76 Ám	-40 C	105 ░C	46	Non Specified - Single Edge	Copper Alloy	Gold	Cantilever	Black	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Female	1	1
EDAC Inc. 725-046-545-101		Polyester Thermoplastic	Through Hole	46	Press-Fit Wire Wrap		30 Áin	0.76 Ám	-40 C	105 ░C	46	Non Specified - Single Edge	Copper Alloy	Gold	Cantilever	Black	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Female	1	1

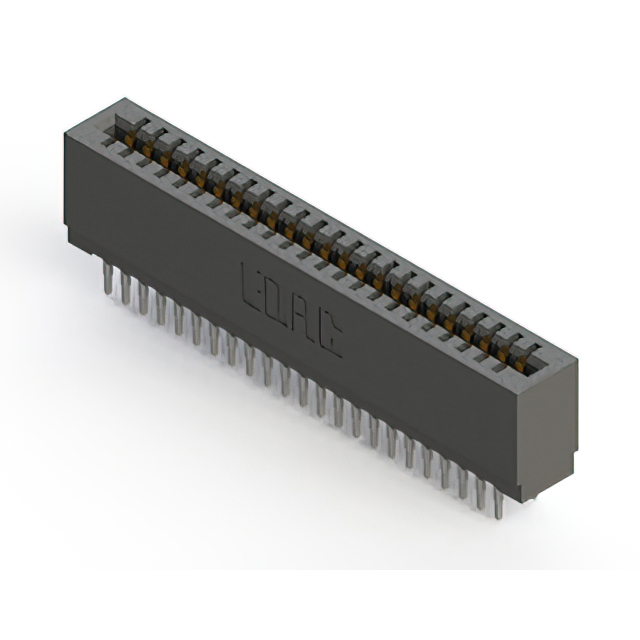

EDAC Inc. 725-046-525-201	2	Polyester Thermoplastic	Through Hole	23	Press-Fit	2	30 Áin	0.76 Ám	-40 C	105 ░C	46	Non Specified - Dual Edge	Copper Alloy	Gold	Cantilever	Black	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Female

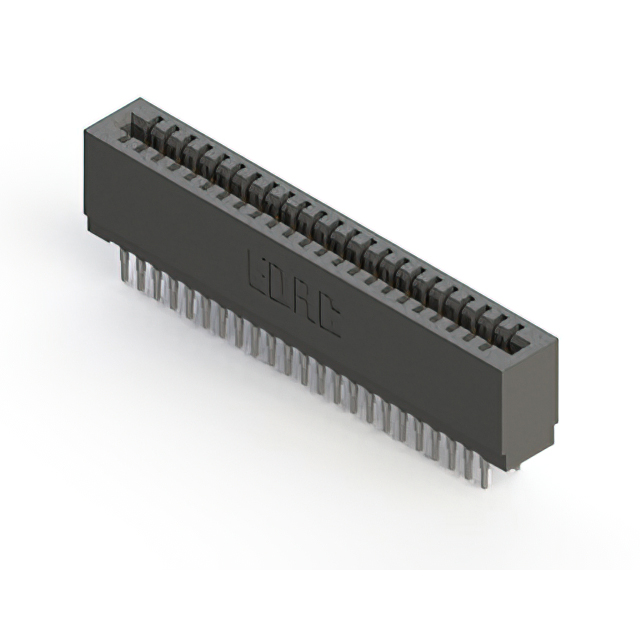

EDAC Inc. 725-046-522-201	2	Polyester Thermoplastic	Through Hole	23	Press-Fit	2	30 Áin	0.76 Ám	-40 C	105 ░C	46	Non Specified - Dual Edge	Copper Alloy	Gold	Cantilever	Black	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Female

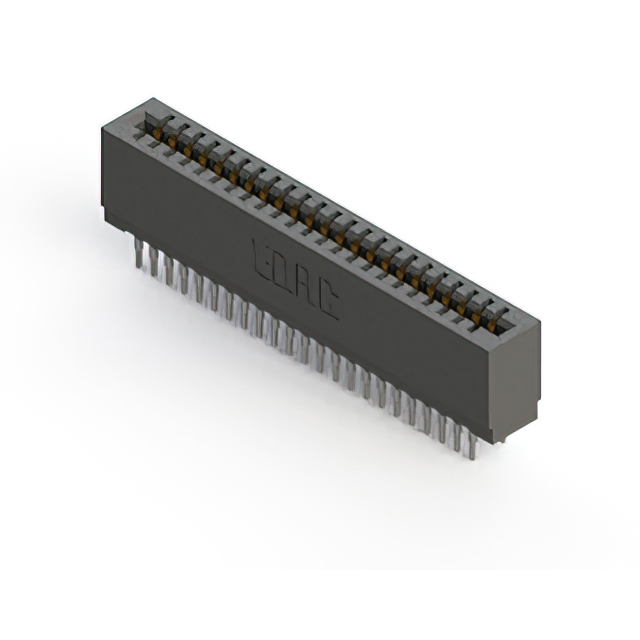

EDAC Inc. 725-046-545-201	2	Polyester Thermoplastic	Through Hole	23	Press-Fit Wire Wrap	2	30 Áin	0.76 Ám	-40 C	105 ░C	46	Non Specified - Dual Edge	Copper Alloy	Gold	Cantilever	Black	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Female
