892-051 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE SINGLE FML 51POS 0.100

...

Part	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Card Thickness [Max]	Card Thickness [Min]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Number of Rows	Contact Finish	Pitch	Pitch	Read Out	Number of Positions/Bay/Row [custom]	Contact Material	Termination Rows	Termination	Card Type	Contact Type	Mounting Type	Gender	Color	Material - Insulation
EDAC Inc. 892-051-540-112	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	51	1	Gold	0.1 "	2.54 mm	Single	51	Copper Alloy	1	Wire Wrap	Non Specified - Single Edge	Cantilever	Through Hole	Female	Black	Polyphenylene Sulfide (PPS)

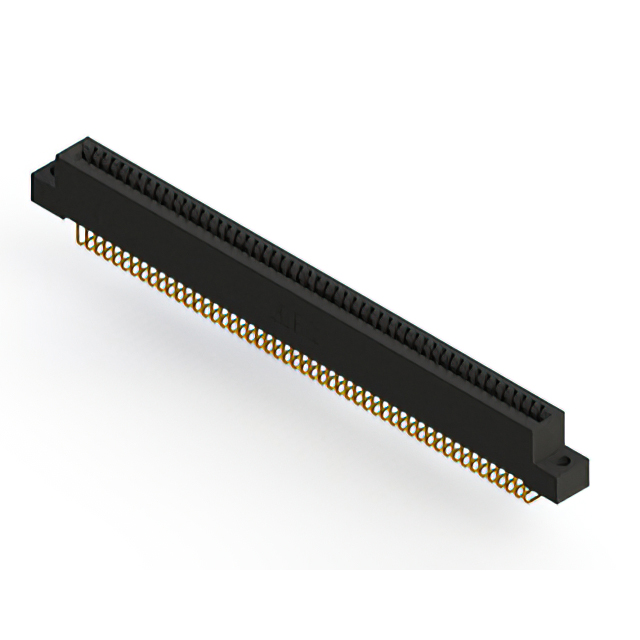

EDAC Inc. 892-051-558-104	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	51	1	Gold	0.1 "	2.54 mm	Single	51	Copper Alloy	1	Solder	Non Specified - Single Edge	Cantilever	Right Angle Through Hole	Female	Black	Polyphenylene Sulfide (PPS)
EDAC Inc. 892-051-541-108	4-40 Flush Mount Threaded Insert Top Opening			125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	51	1	Gold	0.1 "	2.54 mm	Single	51	Copper Alloy	1	Wire Wrap	Non Specified - Single Edge	Cantilever	Through Hole	Female	Black	Polyphenylene Sulfide (PPS)
EDAC Inc. 892-051-559-104	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	51	1	Gold	0.1 "	2.54 mm	Single	51	Copper Alloy	1	Solder	Non Specified - Single Edge	Cantilever	Right Angle Through Hole	Female	Black	Polyphenylene Sulfide (PPS)

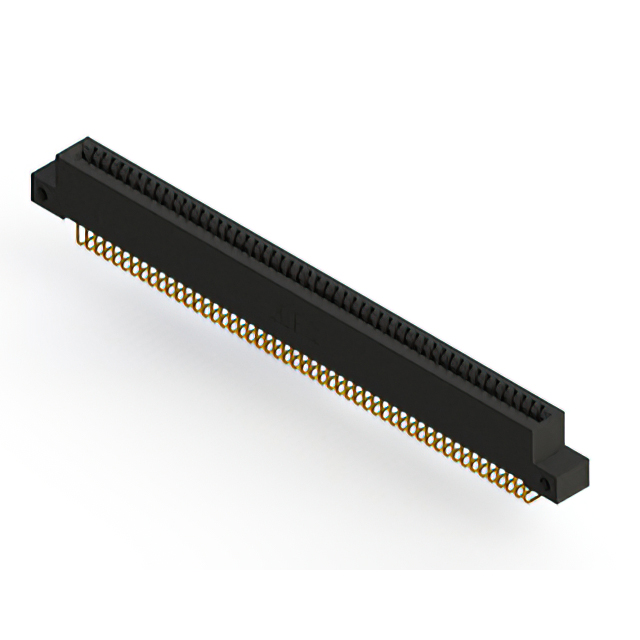

EDAC Inc. 892-051-558-112	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	51	1	Gold	0.1 "	2.54 mm	Single	51	Copper Alloy	1	Solder	Non Specified - Single Edge	Cantilever	Right Angle Through Hole	Female	Black	Polyphenylene Sulfide (PPS)
EDAC Inc. 892-051-524-108	4-40 Flush Mount Threaded Insert Top Opening			125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	51	1	Gold	0.1 "	2.54 mm	Single	51	Copper Alloy	1	Solder	Non Specified - Single Edge	Cantilever	Through Hole	Female	Black	Polyphenylene Sulfide (PPS)
EDAC Inc. 892-051-542-101				125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	51	1	Gold	0.1 "	2.54 mm	Single	51	Copper Alloy	1	Wire Wrap	Non Specified - Single Edge	Cantilever	Through Hole	Female	Black	Polyphenylene Sulfide (PPS)
EDAC Inc. 892-051-542-112	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	51	1	Gold	0.1 "	2.54 mm	Single	51	Copper Alloy	1	Wire Wrap	Non Specified - Single Edge	Cantilever	Through Hole	Female	Black	Polyphenylene Sulfide (PPS)
EDAC Inc. 892-051-542-104	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	51	1	Gold	0.1 "	2.54 mm	Single	51	Copper Alloy	1	Wire Wrap	Non Specified - Single Edge	Cantilever	Through Hole	Female	Black	Polyphenylene Sulfide (PPS)
EDAC Inc. 892-051-544-108	4-40 Flush Mount Threaded Insert Top Opening			125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	51	1	Gold	0.1 "	2.54 mm	Single	51	Copper Alloy	1	Wire Wrap	Non Specified - Single Edge	Cantilever	Through Hole	Female	Black	Polyphenylene Sulfide (PPS)
