DWM-34 Series

Catalog

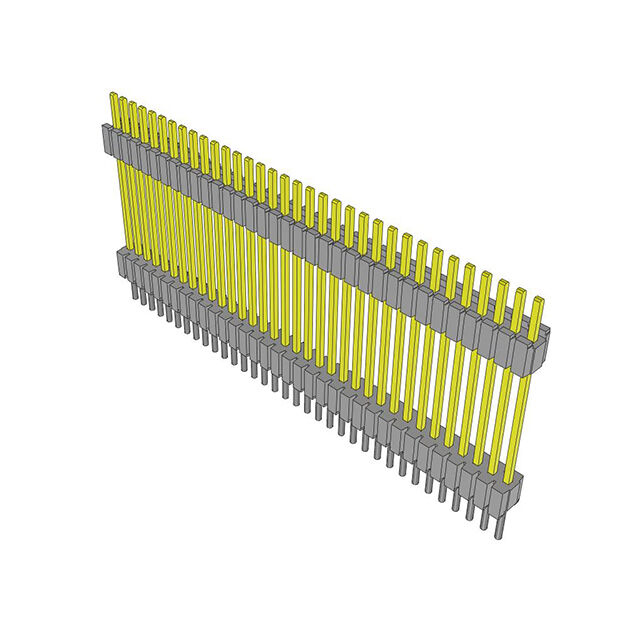

CONN HDR 34POS 0.05 STACK T/H

Part	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Number of Positions	Mounting Type	Contact Finish - Post (Mating)	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Termination	Length - Overall Pin	Length - Overall Pin	Number of Rows	Color	Length - Tail [x]	Length - Tail [x]	Pitch [x]	Pitch [x]	Length - Stack Height [x]	Length - Stack Height [x]	Length - Overall Pin [x]	Length - Overall Pin [x]	Row Spacing [x]	Row Spacing	Length - Stack Height [z]	Length - Stack Height [z]
Samtec Inc. DWM-34-01-G-S-220	0.25 Ám	10 Áin	34	Through Hole	Gold	2.794 mm	0.11 in	Solder	0.45 in	11.43 mm	1	Black	0.12 in	3.048 mm	0.05 in	1.27 mm
Samtec Inc. DWM-34-60-S-S-600	0.76 µm	30 µin	34	Through Hole	Gold	2.667 mm	0.105 in	Solder			1	Black	0.12 in	3.048 mm	0.05 in	1.27 mm	0.6 in	15.24 mm	20.955 mm	0.825 in
Samtec Inc. DWM-34-60-G-S-250	0.25 Ám	10 Áin	34	Through Hole	Gold	11.557 mm	0.455 in	Solder			1	Black	0.12 in	3.048 mm	0.05 in	1.27 mm	0.25 in	6.35 mm	20.955 mm	0.825 in
Samtec Inc. DWM-34-61-S-D-780	0.76 µm	30 µin	68	Through Hole	Gold	3.81 mm	0.15 in	Solder			2	Black	0.12 in	3.048 mm	0.05 in	1.27 mm			26.67 mm	1.05 in	0.1 in	2.54 mm	0.78 in	19.812 mm
Samtec Inc. DWM-34-59-S-D-570	0.76 µm	30 µin	68	Through Hole	Gold	1.651 mm	0.065 in	Solder			2	Black	0.12 in	3.048 mm	0.05 in	1.27 mm	0.57 in	14.478 mm	19.177 mm	0.755 in	0.1 in	2.54 mm
Samtec Inc. DWM-34-59-G-S-390	0.25 Ám	10 Áin	34	Through Hole	Gold	6.223 mm	0.245 in	Solder			1	Black	0.12 in	3.048 mm	0.05 in	1.27 mm			19.177 mm	0.755 in			0.39 in	9.906 mm
Samtec Inc. DWM-34-56-S-D-285	0.76 µm	30 µin	68	Through Hole	Gold	5.588 mm	0.22 in	Solder			2	Black	0.12 in	3.048 mm	0.05 in	1.27 mm			15.875 mm	0.625 in	0.1 in	2.54 mm	0.285 in	7.239 mm
Samtec Inc. DWM-34-01-S-D-330	0.76 µm	30 µin	68	Through Hole	Gold			Solder	0.45 in	11.43 mm	2	Black	0.12 in	3.048 mm	0.05 in	1.27 mm	0.33 in	8.382 mm			0.1 in	2.54 mm
Samtec Inc. DWM-34-01-S-D-300	0.76 µm	30 µin	68	Through Hole	Gold	0.762 mm	0.03 in	Solder	0.45 in	11.43 mm	2	Black	0.12 in	3.048 mm	0.05 in	1.27 mm	0.3 in	7.62 mm			0.1 in	2.54 mm
