ECG.3B Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 16POS GOLD SLDR

Part	Number of Positions	Shielding	Insert Material	Color	Ingress Protection	Shell Size - Insert [custom]	Shell Material	Connector Type	Termination	Orientation [custom]	Contact Finish - Mating	Material Flammability Rating	Primary Material	Mounting Type	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Finish	Contact Material	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Shell Size - Insert
LEMO ECG.3B.316.CLN	16	Shielded	Polyetheretherketone (PEEK)	Silver	IP50 - Dust Protected	316	Brass	Receptacle Female Sockets	Solder	G	Gold	UL94 V-0	Metal	Panel Mount Through Hole	Push-Pull	1.5 Ám	59 Áin	Chrome	Bronze	Front and Rear Side Nut	-55 C	250 °C	8 A
LEMO ECG.3B.324.CYM	24	Shielded	Polyetheretherketone (PEEK)	Silver	IP50 - Dust Protected		Brass	Receptacle Female Sockets	Crimp	G	Gold	UL94 V-0	Metal	Panel Mount	Push-Pull	1.5 Ám	59 Áin	Chrome	Bronze	Front and Rear Side Nut	-55 C	250 °C	4 A	324
LEMO ECG.3B.314.CLV	14	Shielded	Polyetheretherketone (PEEK)	Silver	IP50 - Dust Protected		Brass	Receptacle Female Sockets	Solder	G	Gold	UL94 V-0	Metal	Panel Mount Right Angle Through Hole	Push-Pull	1.5 Ám	59 Áin	Chrome	Bronze	Front and Rear Side Nut	-55 C	250 °C	6 A	314
LEMO ECG.3B.316.CLL	16	Shielded	Polyetheretherketone (PEEK)	Silver	IP50 - Dust Protected	316	Brass	Receptacle Female Sockets		G	Gold	UL94 V-0	Metal	Panel Mount	Push-Pull	1.5 Ám	59 Áin	Chrome	Bronze	Front and Rear Side Nut	-55 C	250 °C	8 A

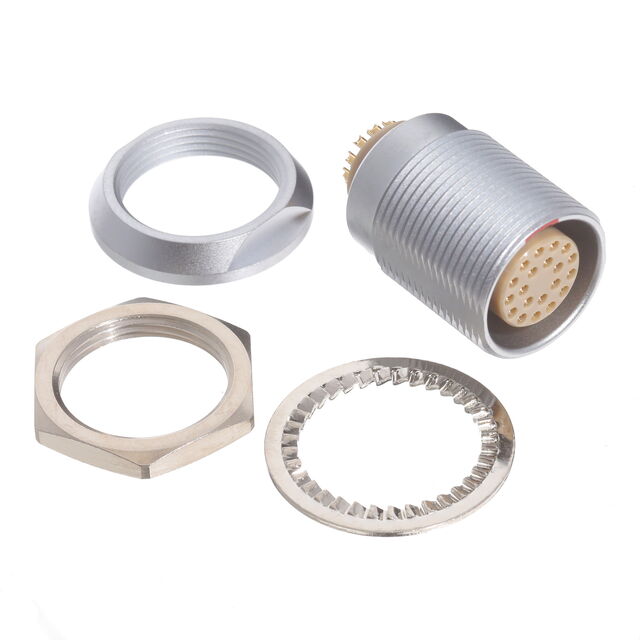

LEMO ECG.3B.320.CLL	20	Shielded	Polyetheretherketone (PEEK)	Silver	IP50 - Dust Protected		Brass	Receptacle Female Sockets		G	Gold	UL94 V-0	Metal	Panel Mount	Push-Pull	1.5 Ám	59 Áin	Chrome	Bronze	Front and Rear Side Nut	-55 C	250 °C	6 A	320
LEMO ECG.3B.306.CYM	6	Shielded	Polyetheretherketone (PEEK)	Silver	IP50 - Dust Protected		Brass	Receptacle Female Sockets	Crimp	G	Gold	UL94 V-0	Metal	Panel Mount	Push-Pull	1.5 Ám	59 Áin	Chrome	Bronze	Front and Rear Side Nut	-55 C	250 °C	17 A	306
LEMO ECG.3B.822.CLN1		Shielded	Polyetheretherketone (PEEK)	Silver	IP50 - Dust Protected		Brass	Receptacle Female Sockets	Solder	G	Gold	UL94 V-0	Metal	Panel Mount Through Hole	Push-Pull			Chrome		Front and Rear Side Nut	-55 C	250 °C	5 A	822
LEMO ECG.3B.330.CLN	30	Shielded	Polyetheretherketone (PEEK)	Silver	IP50 - Dust Protected		Brass	Receptacle Female Sockets	Solder	G	Gold	UL94 V-0	Metal	Panel Mount Through Hole	Push-Pull	1.5 Ám	59 Áin	Chrome	Bronze	Front and Rear Side Nut	-55 C	250 °C	3.5 A	330
LEMO ECG.3B.306.CLV	6	Shielded	Polyetheretherketone (PEEK)	Silver	IP50 - Dust Protected		Brass	Receptacle Female Sockets	Solder	G	Gold	UL94 V-0	Metal	Panel Mount Right Angle Through Hole	Push-Pull	1.5 Ám	59 Áin	Chrome	Bronze	Front and Rear Side Nut	-55 C	250 °C	17 A	306
LEMO ECG.3B.306.CYP	6	Shielded	Polyetheretherketone (PEEK)	Silver	IP50 - Dust Protected		Brass	Receptacle Female Sockets	Crimp	G	Gold	UL94 V-0	Metal	Panel Mount	Push-Pull	1.5 Ám	59 Áin	Chrome	Bronze	Front and Rear Side Nut	-55 C	250 °C	17 A	306
