6ES71942 Series

Manufacturer: Siemens

Catalog

CBL 4POS MALE TO FMALE 49.2'

Part	1st Connector Type	2nd Connector Type	1st Connector Number of Positions Loaded	Usage	Cable Material	Assembly Configuration	Shielding	1st Connector Gender	2nd Connector Number of Positions	Ingress Protection	Cable Type	1st Connector Shell Size - Insert	2nd Connector Number of Positions Loaded	Length	Length	2nd Connector Mounting Type	1st Connector Mounting Type	Color	2nd Connector Shell Size - Insert	1st Connector Number of Positions	2nd Connector Gender	Connector Type	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Orientation	Shell Size - Insert	Shell Material	Number of Positions	Fastening Type	Mounting Type	Length [x]	Length [x]
Siemens 6ES71942LN151AA0	Receptacle	Plug	All	Industrial Environments	Polyvinyl Chloride (PVC)	Standard	Unshielded	Male Pins	4	IP65 IP67	Round	M8	All	15 m	49.2 ft	Free Hanging (In-Line)	Free Hanging (In-Line)	Gray	M8	4	Female Sockets
Siemens 6ES71942LH500AA0	Receptacle	Receptacle	All	Industrial Environments	Polyvinyl Chloride (PVC)	Standard	Shielded	Male Pins	4	IP65 IP67	Round	M8	All			Free Hanging (In-Line)	Free Hanging (In-Line)	Green	M8	4	Male Pins

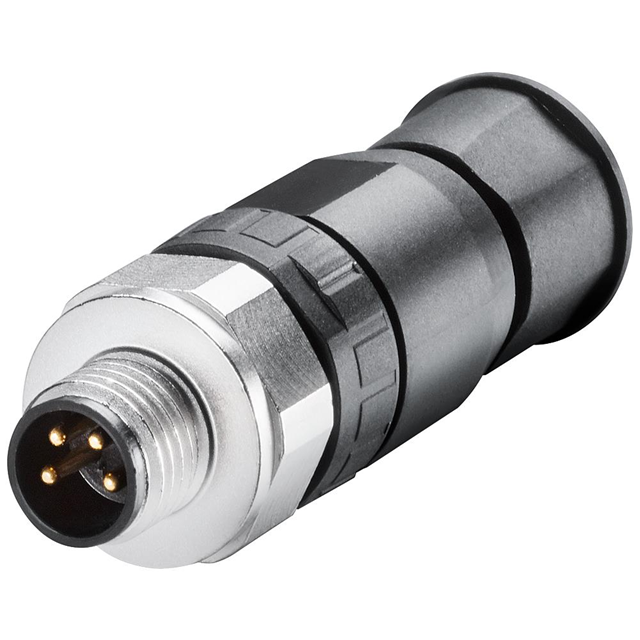

Siemens 6ES71942AA000AA0							Unshielded			IP65 IP67								Black Silver				Plug Male Pins	Metal	85 °C	-30 ░C	Automation Industrial	Keyed	M8-4	Metal	4	Threaded	Free Hanging (In-Line)
Siemens 6ES71942MH020AA0	Receptacle	Receptacle	All	Industrial Environments	Polyurethane (PUR)	Standard	Shielded	Male Pins	4	IP65 IP67	Round	M8	All			Free Hanging (In-Line)	Free Hanging (In-Line)	Green	M8	4	Male Pins												190 mm	0.62 ft
Siemens 6ES71942MH100AB0	Receptacle Right Angle	Receptacle Right Angle	All	Industrial Environments	Polyurethane (PUR)	Standard	Shielded	Male Pins	4	IP65 IP67	Round	M8	All	1 m	3.28 ft	Free Hanging (In-Line)	Free Hanging (In-Line)	Green	M8	4	Male Pins
Siemens 6ES71942AC000AA0							Unshielded			IP65 IP67								Black Silver				Receptacle Female Sockets	Metal	85 °C	-30 ░C	Automation Industrial	Keyed	M8-4	Metal	4	Threaded	Free Hanging (In-Line)
Siemens 6ES71942MH021AA0	Receptacle	Plug	All	Industrial Environments	Polyurethane (PUR)	Standard	Unshielded	Male Pins	4	IP65 IP67	Round	M8	All			Free Hanging (In-Line)	Free Hanging (In-Line)	Gray	M8	4	Female Sockets												190 mm	0.62 ft
Siemens 6ES71942MN100AA0	Receptacle	Receptacle	All	Industrial Environments	Polyurethane (PUR)	Standard	Shielded	Male Pins	4	IP65 IP67	Round	M8	All			Free Hanging (In-Line)	Free Hanging (In-Line)	Green	M8	4	Male Pins
Siemens 6ES71942MH500AA0	Receptacle	Receptacle	All	Industrial Environments	Polyurethane (PUR)	Standard	Shielded	Male Pins	4	IP65 IP67	Round	M8	All			Free Hanging (In-Line)	Free Hanging (In-Line)	Green	M8	4	Male Pins
Siemens 6ES71942LH101AA0	Receptacle	Plug	All	Industrial Environments	Polyvinyl Chloride (PVC)	Standard	Unshielded	Male Pins	4	IP65 IP67	Round	M8	All	1 m	3.28 ft	Free Hanging (In-Line)	Free Hanging (In-Line)	Gray	M8	4	Female Sockets
