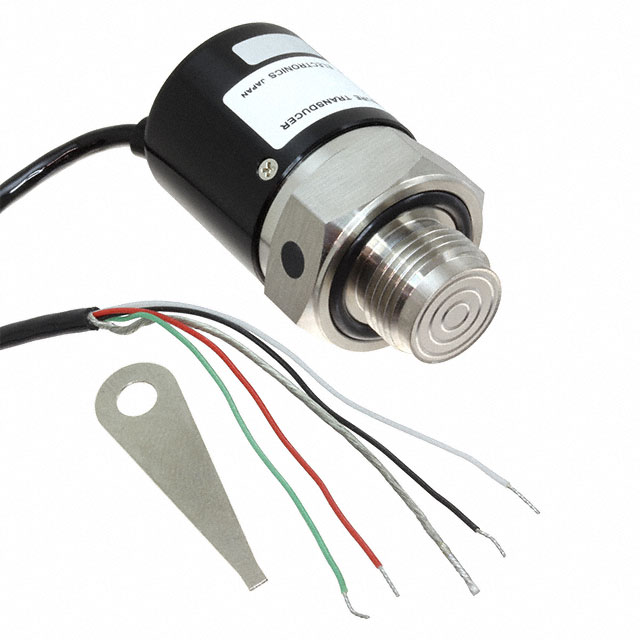

PA-800 Series

Catalog

PRESSURE TRANSDUCERS WITH AMP.

Part	Output [Max]	Output [Min]	Maximum Pressure	Maximum Pressure	Operating Temperature [Min]	Operating Temperature [Max]	Features	Accuracy	Termination Style	Port Style	Applications	Operating Pressure	Operating Pressure	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Type	Package / Case	Pressure Type
Nidec Components Corporation PA-800-103G-10	5 V	1 V	284.42 PSI	1961 kPa	-20 ░C	70 °C	Temperature Compensated	0.1 %	Cable	Threaded	Industrial Automation	142.28 PSI	981 kPa	12 VDC	24 V	Analog Voltage	Cylinder	Gauge
Nidec Components Corporation PA-800-352G-05	5 V	1 V	99.5 PSI	686 kPa	-20 ░C	70 °C	Temperature Compensated	0.05 %	Cable	Threaded	Industrial Automation	49.75 PSI	343 kPa	12 VDC	24 V	Analog Voltage	Cylinder	Gauge
Nidec Components Corporation PA-800-103G-05	5 V	1 V	284.42 PSI	1961 kPa	-20 ░C	70 °C	Temperature Compensated	0.05 %	Cable	Threaded	Industrial Automation	142.28 PSI	981 kPa	12 VDC	24 V	Analog Voltage	Cylinder	Gauge
Nidec Components Corporation PA-800-102V-05	5 V	1 V	28.43 PSI	196 kPa	-20 ░C	70 °C	Temperature Compensated	0.05 %	Cable	Threaded	Industrial Automation	14.23 PSI	98.1 kPa	12 VDC	24 V	Analog Voltage	Cylinder	Vented Gauge
Nidec Components Corporation PA-800-102G-10	5 V	1 V	28.43 PSI	196 kPa	-20 ░C	70 °C	Temperature Compensated	0.1 %	Cable	Threaded	Industrial Automation	14.23 PSI	98.1 kPa	12 VDC	24 V	Analog Voltage	Cylinder	Gauge
Nidec Components Corporation PA-800-102G-05	5 V	1 V	28.43 PSI	196 kPa	-20 ░C	70 °C	Temperature Compensated	0.05 %	Cable	Threaded	Industrial Automation	14.23 PSI	98.1 kPa	12 VDC	24 V	Analog Voltage	Cylinder	Gauge
